1 General information
The Digimar 817 CLT is an electronic height
measuring instrument used for measuring and
evaluating lengths, distances, and diameters.
It allows you to safely perform measurements
and calculation functions, as well as create
measuring programs to automate recurring
measuring steps.
The Digimar 817 CLT height measuring
instrument is operated via a swivel and tilting
control panel with touchscreen and features
fast measurement function keys as well as
a thumbwheel, which allows convenient
positioning of the measuring slide.
The user interface of the height measuring
instrument offers clearly structured menus
and large buttons with self-explanatory icons
to ensure quick and fluid processes.
The handles on each side and the integrated
air bearing ensure that the instrument can
be moved precisely and effortlessly on the
measuring plate.
The height measuring instrument comes in
three sizes: 350mm, 600mm and 1000mm.
It enables one-dimensional measurements
in a vertical direction and two-dimensional
measurements if the workpiece can be
tilted90°.
Measuring data can be backed up both
wirelessly and by wired connection using the
MarConnect duplex interface.

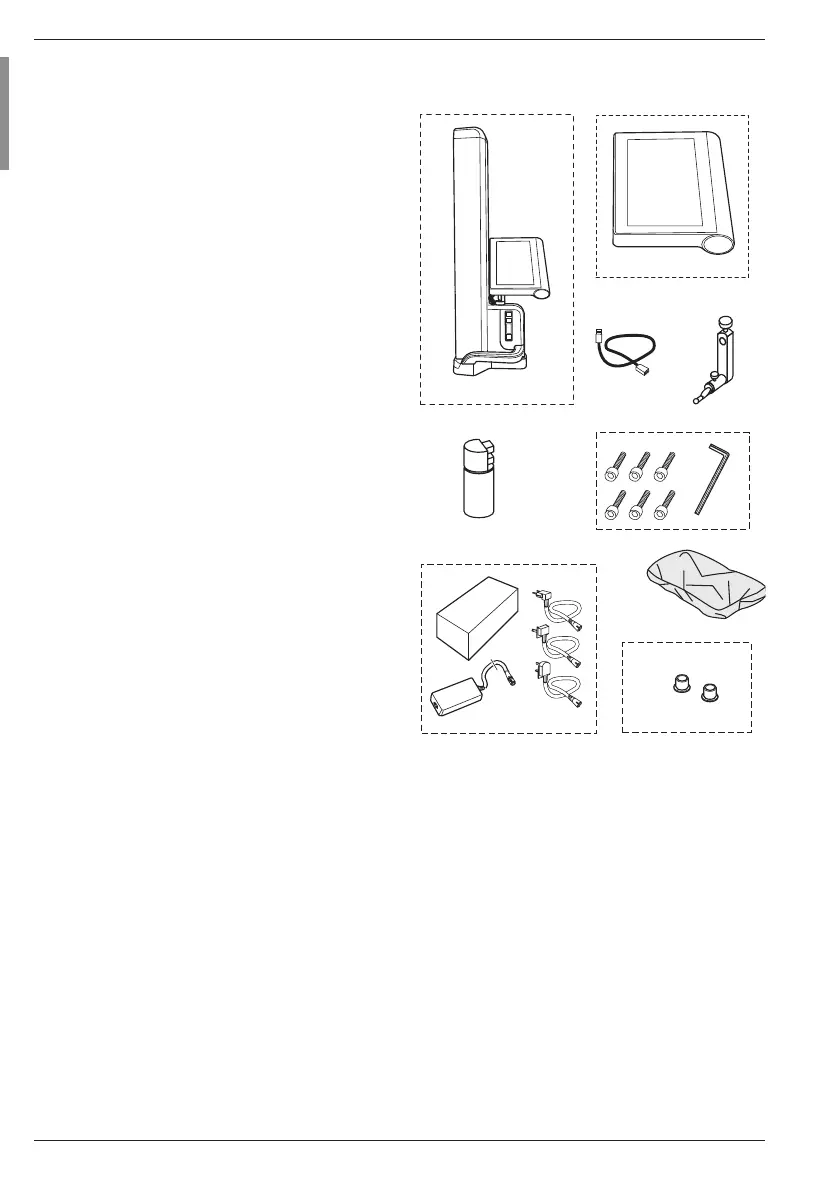

1.1 Scope of delivery
A
B
C
D
E
H
G
F
I
A Height measuring instrument
B Control panel with touchscreen
C Connecting cable for control panel
D Carrier for measuring anvils
E Battery
F Cylinder head screws and Allen key
G AC adapter with plug adapter
H Protective cover
I Blind caps
