Maxuum III Digital Electronic Indicator 2239028 Rev D

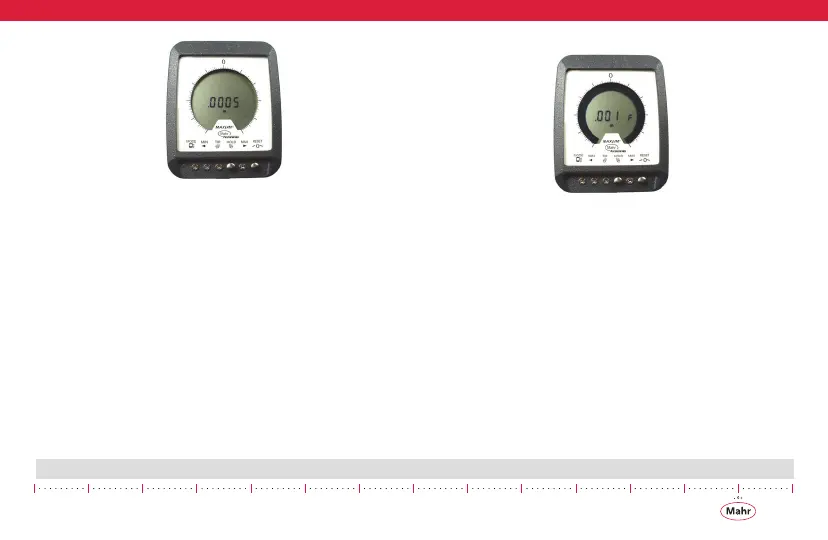

Figure 11
3.6 Selecting Analog Fan Scale/ Overlay
3.6.1 Setting-up the Indicator Analog Fan Scale
1. Enter Setup Mode
2. Press the RESET button until the letter F shows in the last
digital position of the LCD display. The F indicates the
analog Fan display setup feature.
3. Press the HOLD button to toggle through the analog
graduation value selections.
Figure 12
Notice the fan display toggles between half full scale (only half
the LCD fan segments are on) and full scale (all the LCD fan
segments are on). This ? fan scale and full fan scale help the
operator in deciding which overlay to use.
The ? fan scale indicates that the 25-0-25 overlay should be
used. The full fan scale indicates that either the 5-0-5 or 50-0-
50 overlay should be used. See the following Section, ’3.6
Selecting Analog Fan Scale/ Overlay’ on page 19 and corre-
sponding to the ‘Overlay Selection Table’ on page 20 for correct
installation and choice when using the overlay option.
