Maxuum III Digital Electronic Indicator 2239028 Rev D
3.8 Selecting Data Output Format
1. Enter setup mode
2. Press the RESET button until the letter o shows in the
last digital position of the LCD display. The o indicates
the data output format setup feature.
3. Press the HOLD button to toggle through the following
selections:

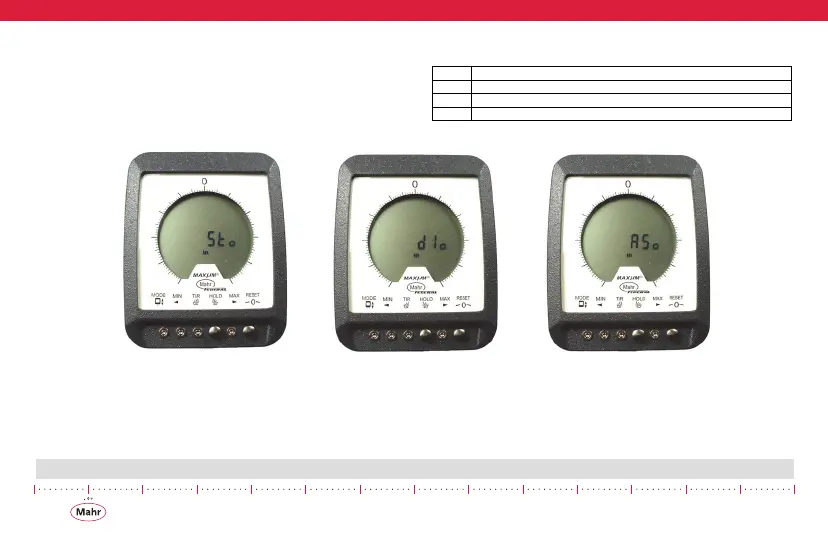

Figure 17
For more information on the data output formats see Section,
’8.0 Output Information’ on page 43.
St
Standard classic Maxum output format
dl Digimatic/BCD output format
AS Serial ASCII output format
Off Data Output is disabled and no output is provided
Unit shown with Standard output Unit shown with Digimatic output Unit shown with serial output
