45
Maxuum III Digital Electronic Indicator 2239028 Rev D
low state. The Digital Line is normally in a low state when no
data is available.
When digital data is available, the digital line goes high and the
rising edge of the clock signal goes high. This is the start pulse
for the beginning of the Digital Stream. The next 35 bits of the
Digital Stream read on the rising edge of the clock pulse contain
all the information in seven segment code.
The entire digital stream is 2.20 milliseconds in length. The sign
data is low (+) or high (-) for 0.4 ms before and 4.0 ms after the
digital start pulse. The digital line (start pulse) and clock are used
as the main indicators for data input. The Maxum III has the
buffered signals available at the output connector.

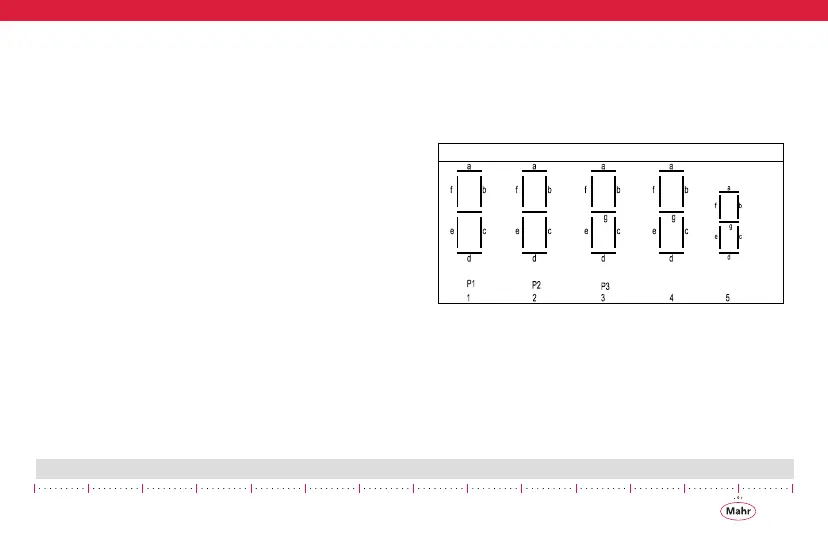

8.1.3 Hardwired
Digit #1-All segment connected together including the period.
There is no 'g' segment.
Digit #2-Segment b and c connected together. Segment a, d, e,
f connected together. There is no 'g' segment.
8.1.4 Possible Combinations
Digit 1 0 or OFF
Digit 2 0, 1 or OFF
Digit 3 0 to 9
Digit 4 0 to 9
Digit 5 0 to 9
Digit Numbers
