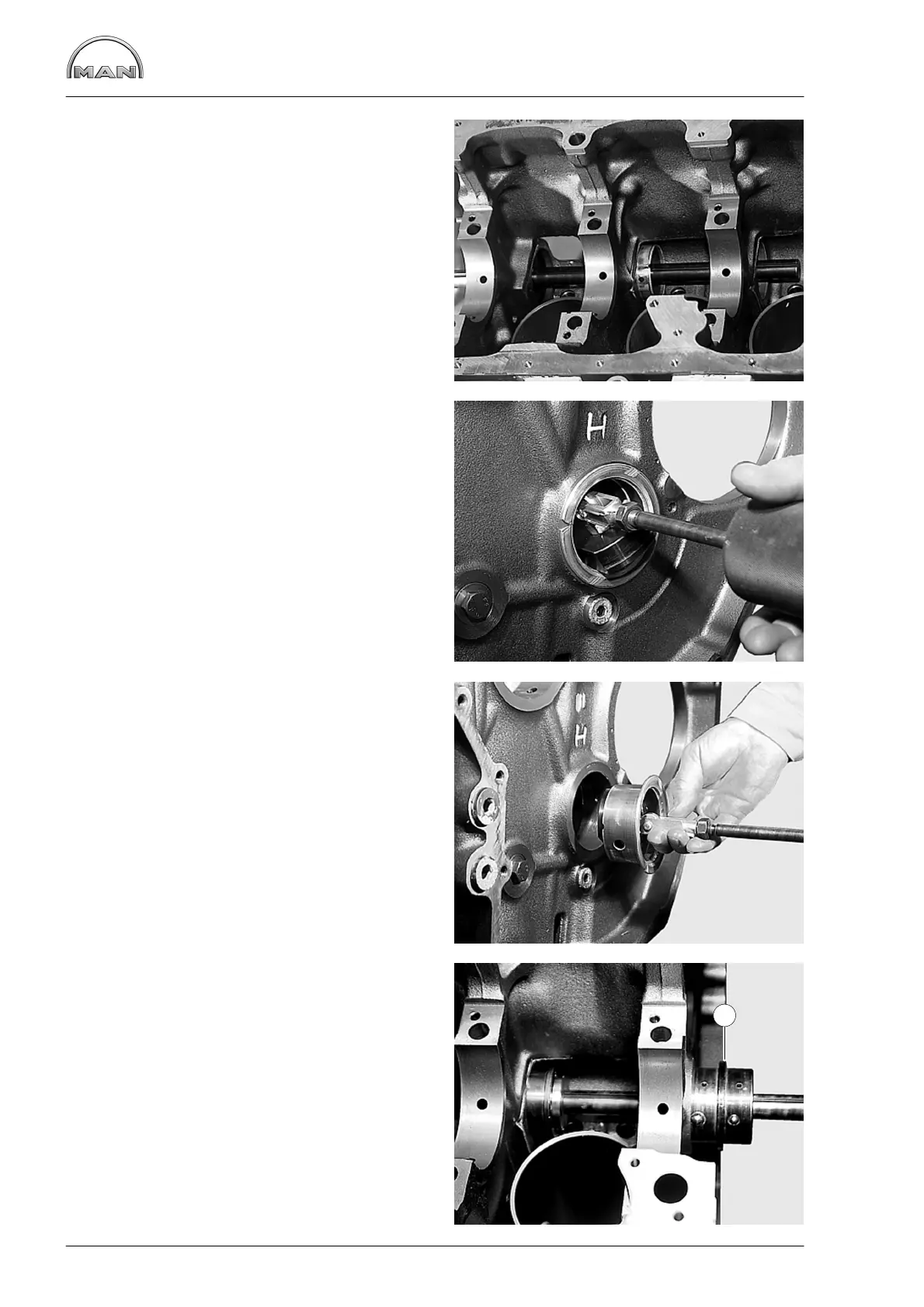

Removing and fitting camshaft bearing bushes
106
Fig. 5
Use a soft hammer (plastic or copper) to knock out
camshaft bearing bushes 2, 3 and 4 in succession.
Press out the camshaft bearing bush,
bearing 7
Fig. 6
Use the impact extractor (special tool) to pull out
the cam bearing bush of bearing 7 from the fly-
wheel side.
Fig. 7
Pull out the bearing bush.
Press out camshaft bearing bushes of
bearings 5 and 6
Fig. 8
Press out the bearing bushes of bearings 5 and 6
from the flywheel side.
Place the guide bush Á on the shaft with groove,
ensuring that you have the correct bush side (the
sides have different diameters!).
The spring-loaded balls lock into the oil holes.
