Removing and installing exhaust pipe
71
Removing the exhaust pipe
D Removing the turbocharger, see page 75

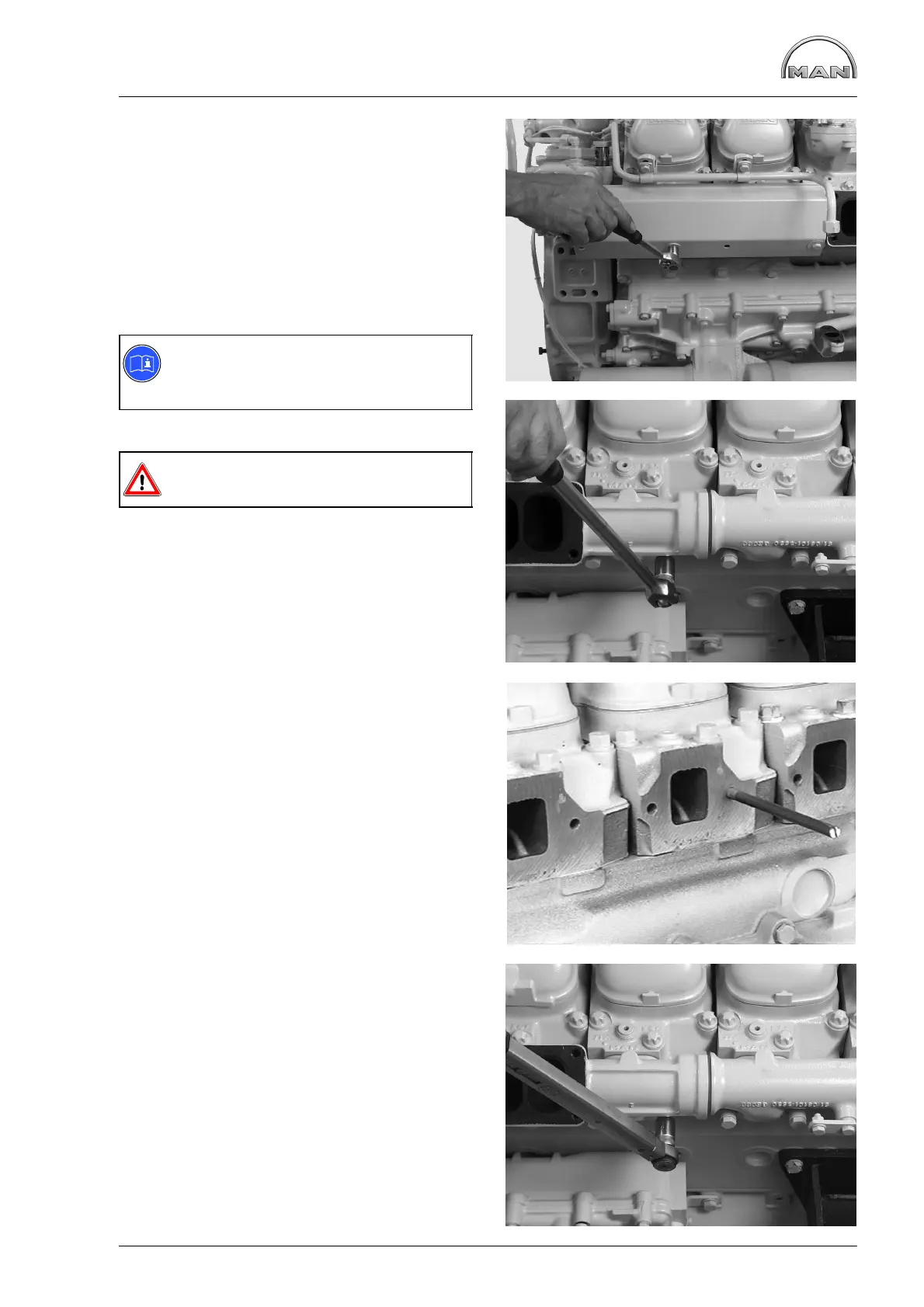

Fig. 1
Remove the guard plates.
Fig. 2
Note:
The exhaust-gas pipe can be removed
along with the attached turbocharger.
Loosen the securing bolts of the exhaust pipe.
Danger:
The exhaust pipe is heavy.
Before unscrewing all securing bolts, if appropriate
replace 2 bolts by stud bolts as guides.
The stud bolts with thread M10 have been pro-
duced by MAN.
Remove exhaust pipe.
Installing the exhaust pipe
Fig. 3
Before fitting the exhaust pipe, screw in 2 stud
bolts as a guide.
Position the exhaust pipe with new gaskets.
Ensure that the gaskets are correctly seated.
Fig. 4
Tighten the securing bolts with the prescribed
torque (see “Service Data”).
D Installing turbocharger
