Removing and installing valves
87
Removing valves
D Remove cylinder head, see page 78

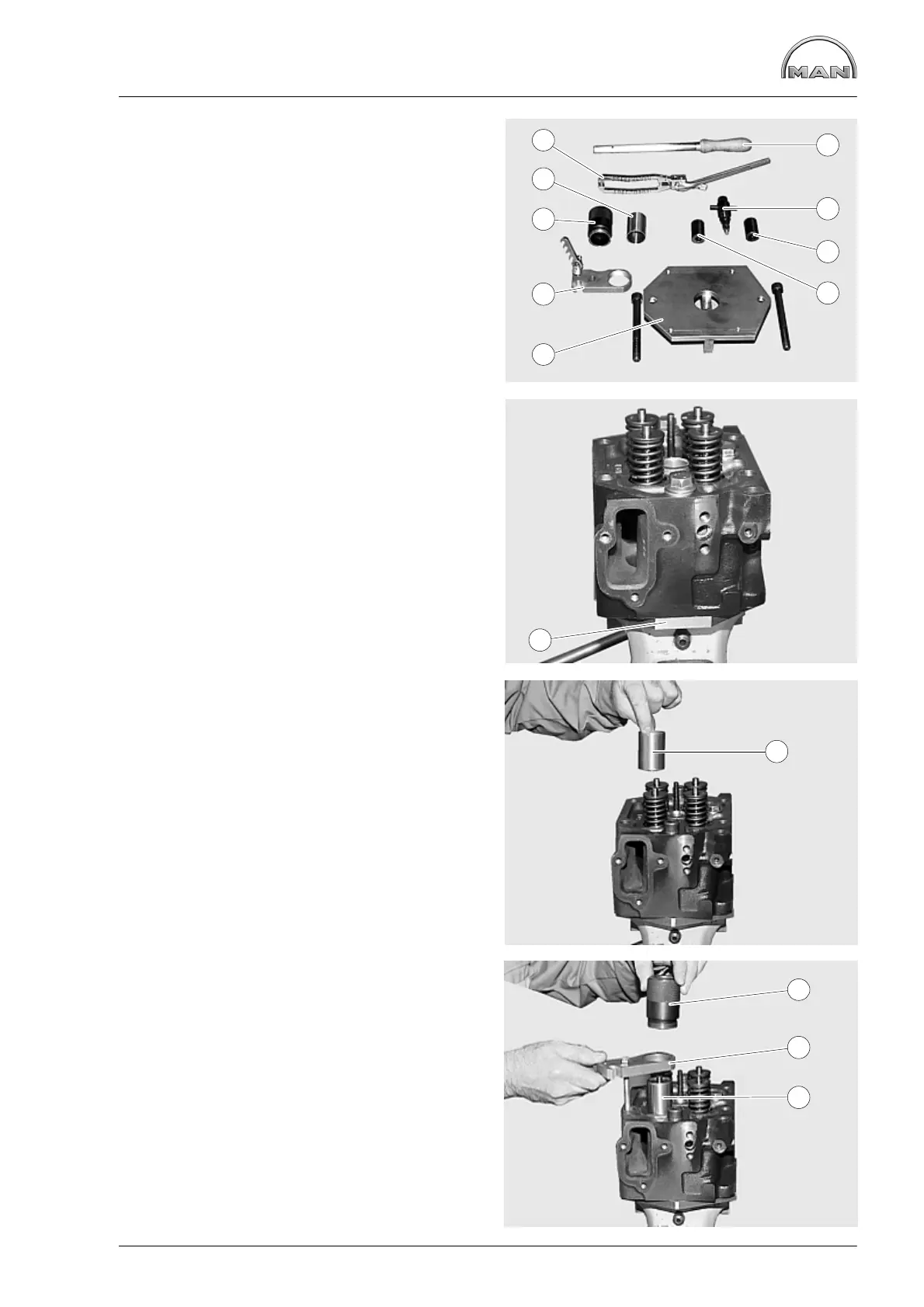

Fig. 1
Special tools for removing and installing the valve
springs:
À Assembly plate for cylinder head and rocker
arm bearing housing (not in tool case)
Á Anchor plate with grid part
 Guide sleeve
à Additional guide sleeve for 4−valve cylinder
head
Ä Pressure fork
Å Extension for pressure fork
Æ Assembly cartridge for retaining wedges
Ç Sleeve with large diameter for 2−valve cylinder
head
È Sleeve with small diameter for 4−valve cylinder
head
Depending on the cylinder head, the sleeves are
bolted onto the mounting cartridge.
Fig. 2
Secure the cylinder head on mounting plate À.
Fig. 3
Fit guide sleeve à over the valve spring for cen-
tring.
Fig. 4
Screw guide sleeve  into anchor plate Á and
push both parts over guide sleeve à onto the cylin-
der head.
Bolt down the anchor plate.
1
2
3
4
5
9
6
7
8
1
4
3
2
4
