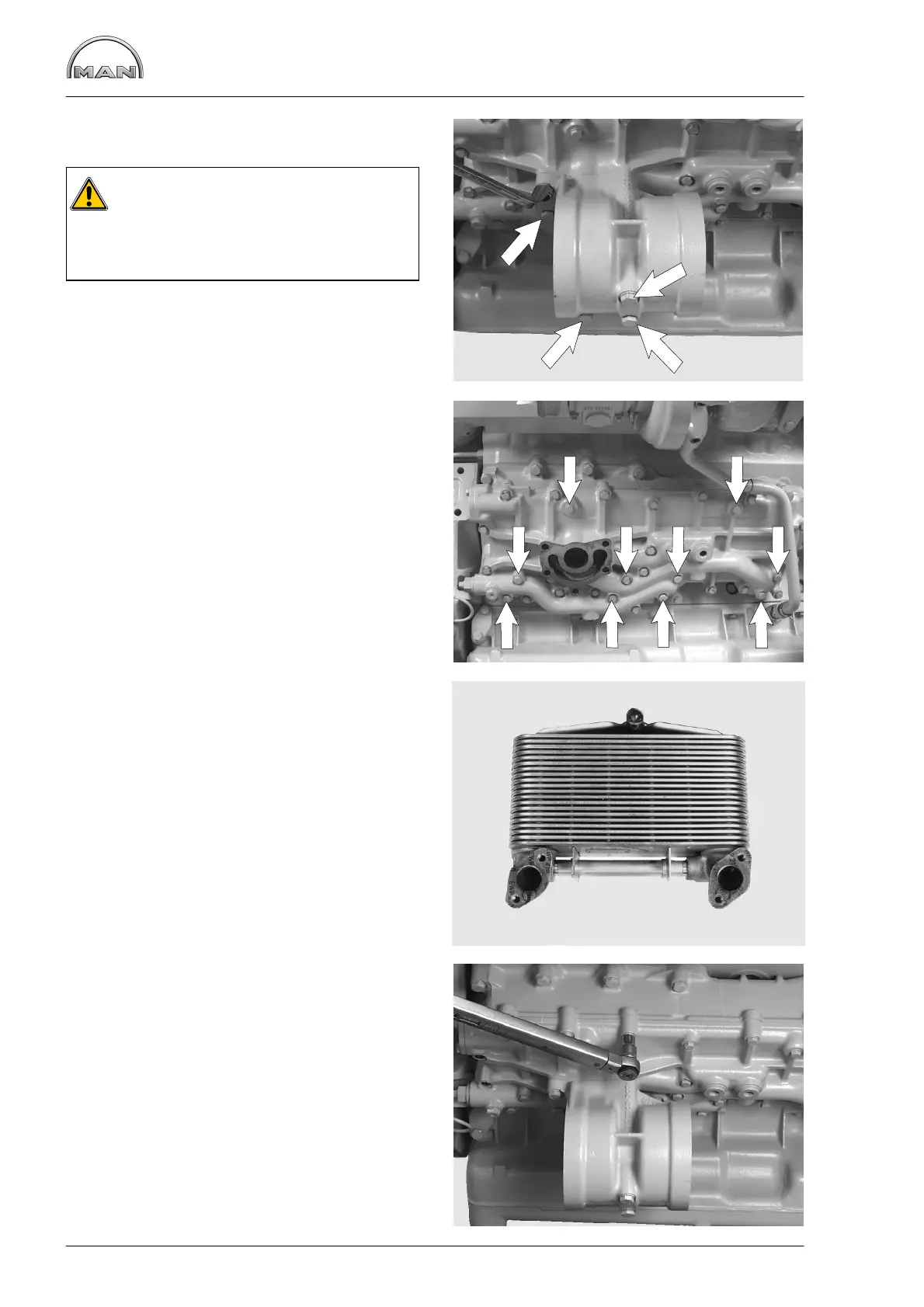

Removing and installing the oil cooler
54
D Draining off coolant, see page 40
D Removing the oil filter, see page 53
Caution:
Old oil and used oil filters are hazardous
waste.
Observe safety instructions for the pre-
vention of environmental damage.
Fig. 1
Remove oil filter head (5 screws).
Remove filter head gasket.
Fig. 2
Unscrew oil cooler housing cover with fitted oil
cooler.
The 10 marked screws hold the oil cooler. Only
loosen these screws after removing the housing
cover.
Fig. 3
Check both oil cooler for damage and if necessary
replace them. Fit oil cooler with new gaskets.
Fig. 4
Tighten the mounting bolts with the prescribed
torque.
D Screw on oil cooler housing cover with fitted oil
cooler
D Attach oil filter head and oil filter with new
seals, see also page 53
D Fill engine oil and check for leaks after a short
engine run
D Check oil level
D Filling up with coolant
