Man D 2842 LE 620 - Service Data; Valve Gear Component Dimensions

Ø
Ø
ö
b
Ø
Ø
ØØ
Limit values
Service Data
Dimensions
144

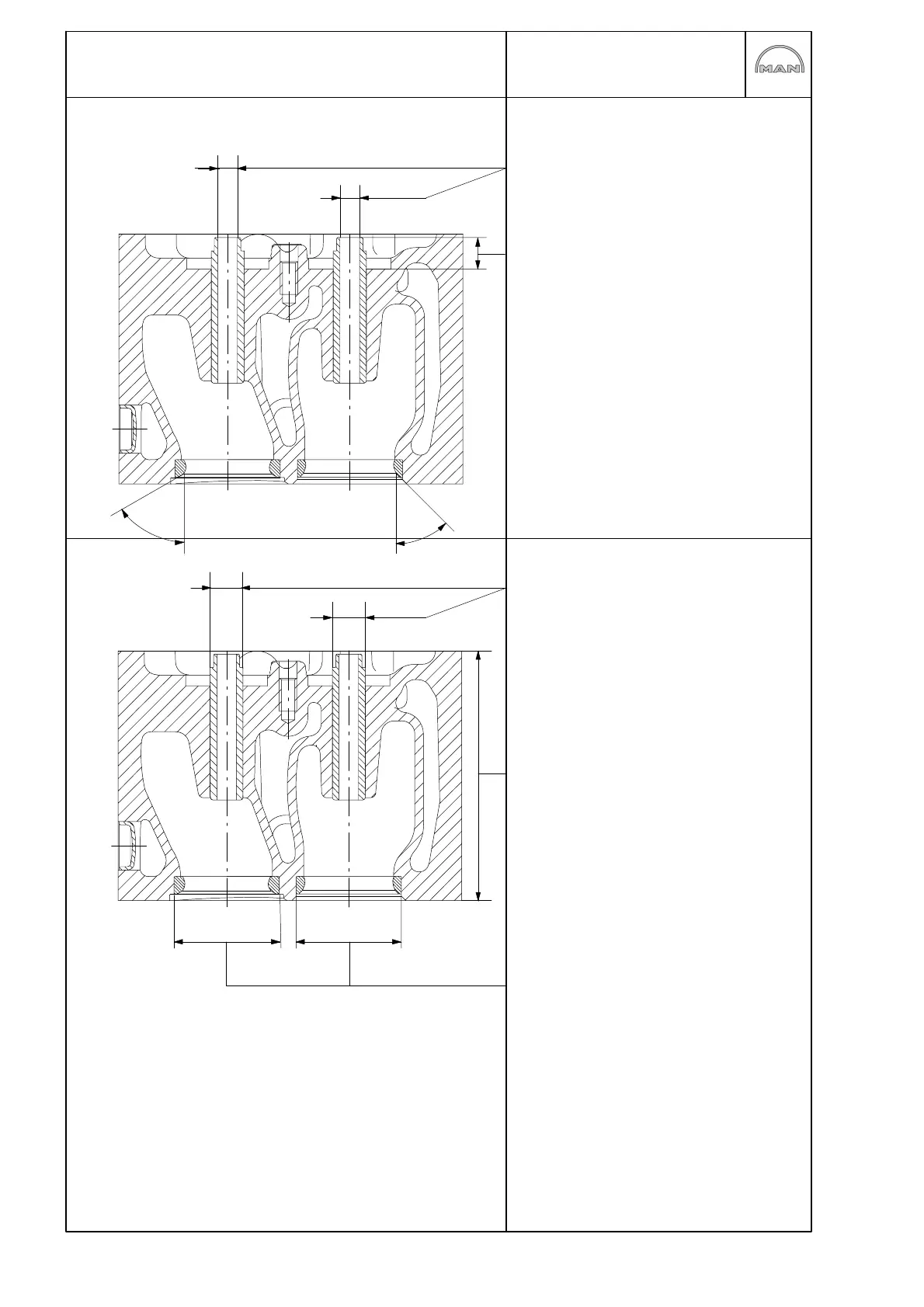

Cylinder head
9,000−9,015 mm
14,1−14,5 mm
Intake valve ö = 60_
Exhaust valve b = 45_
Valve guide bore in cylinder
head: 15,000−15,018 mm
Valve guide outside
diameter: 15,028−15,046 mm
standard: 113,9−114 mm
(observe specified dimensions for valve
recess and injector projection)
Valve seat insert bore in
cylinder head: 44,000−44,025 mm
46,000−44,025 mm
Valve seat insert
outside diameter: 44,105−44,115 mm
46,095−46,105 mm
