Oil injection nozzle
59
Removing the oil injection nozzle
D Draining off oil, see page 55
D Removing the oil pan, see page 55

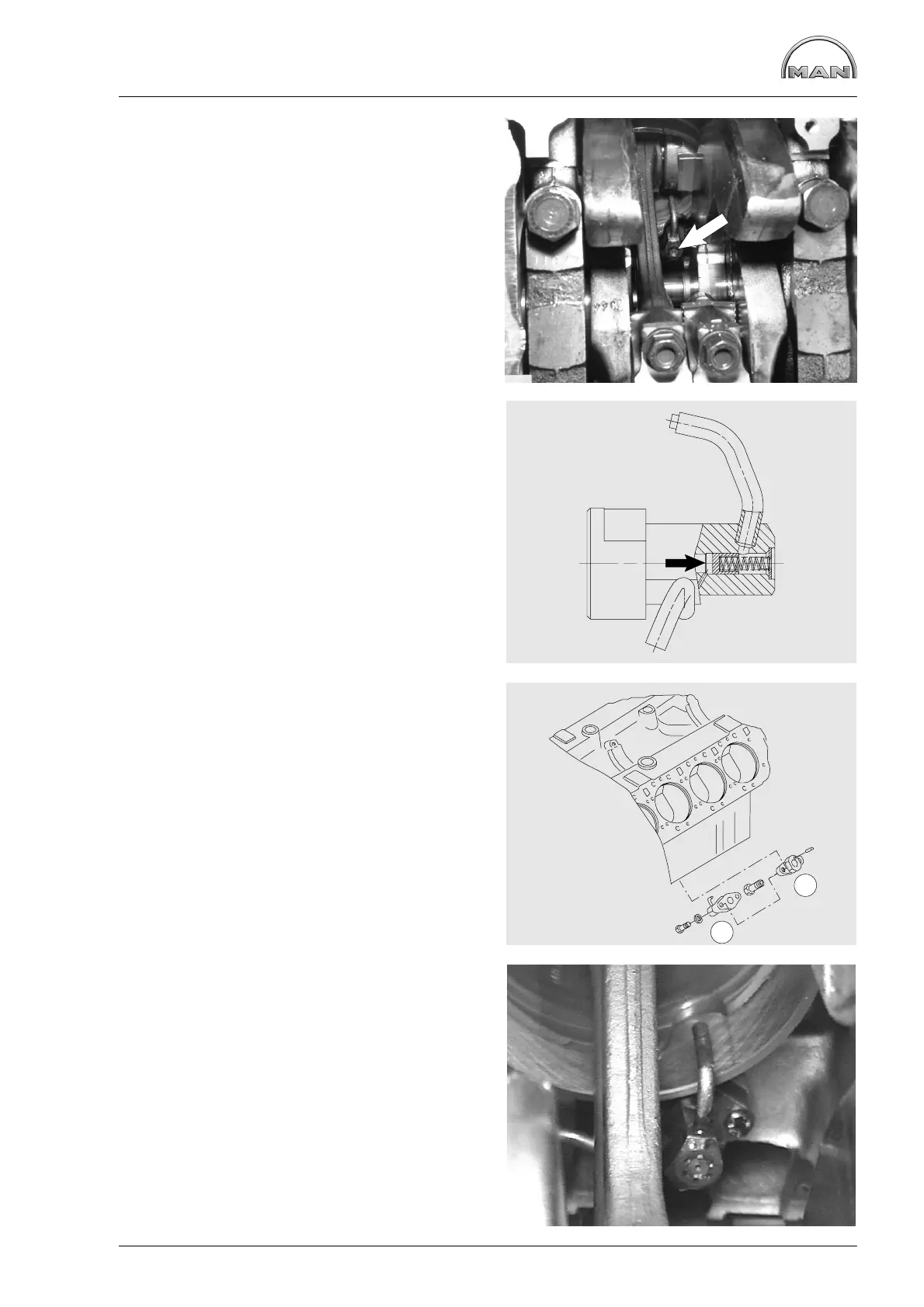

Fig. 1
Unscrew the securing bolts of the oil injection
nozzle (arrow).
Remove oil injection nozzle with valve.
Check the oil injection nozzle valve
Fig. 2
Unscrew the oil injection nozzle valve from the
body of the oil injection nozzle.
The valve plunger must move up and down easily.
If the valve plunger sticks or jams, replace the oil
injection nozzle valve.
Opening pressure, see “Service Data”.
Installing the oil injection nozzle
Fig. 3
Position the oil injection nozzle À at the oil injec-
tion nozzle flange Á.
Fig. 4
Tighten the securing bolts with the prescribed
torque.
