Man D 2842 LE 620 - Service Data; Crankshaft Rear End and Main Bearing Data

Ø
Ø
Ø
Ø
Ø
Ø
Ø
0,005
Limit values

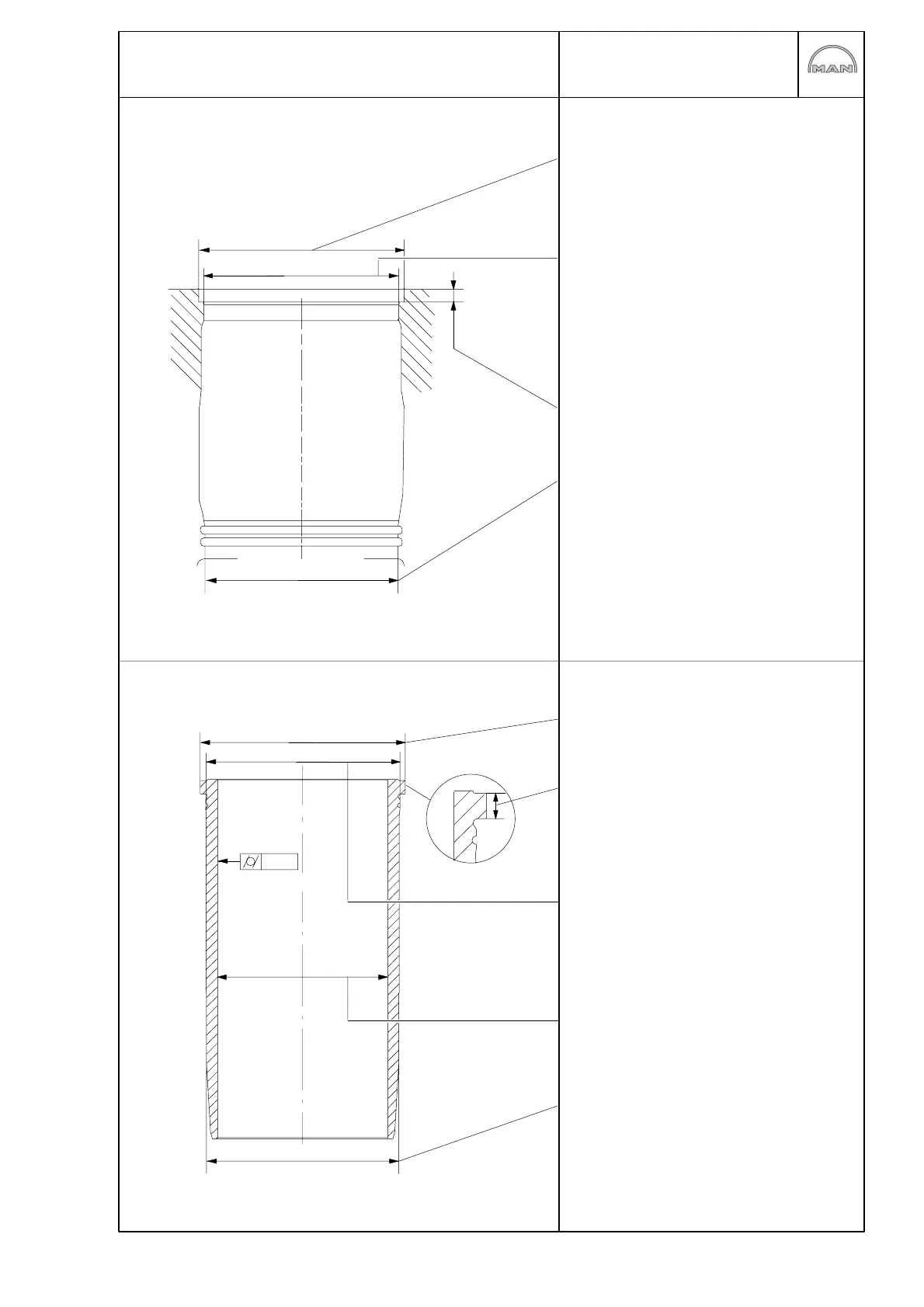

Service Data
Dimensions
137
Crankcase
standard size: 153,90−154,00 mm
for liners with larger outer diameter:
0,5 and 1,0 mm: 54,40−154,50 mm
standard size: 145,80−145,84 mm
for liners with larger outer diameter:
0,5 mm: 146,30−146,34 mm
1,0 mm: 146,80−146,84 mm
9,97−9,99 mm
standard size: 144,50−144,54 mm
for liners with larger outer diameter:
0,5 mm: 145,00−145,04 mm
1,0 mm: 145,50−145,54 mm
Cylinder liner
standard size: 153,694−153,757 mm
with larger outside diameter
0,5 and 1,0 mm: 154,194−154,257 mm
standard size: 10,030−10,050 mm
with more flange height:
0,2 mm: 10,230−10,250 mm
Liner protrusion above upper deck of
crankcase: 0,04−0,08 mm
standard size: 145,761−145,786 mm
with larger outside diameter
0,5 mm: 146,261−146,286 mm
1,0 mm: 146,761−146,786 mm
127,990−128,010
Max. wear limit:
0.15 mm below base dimension
standard size: 144,432−144,457 mm
with larger outside diameter
0,5 mm: 144,932−144,957 mm
1,0 mm: 145,432−145,457 mm
