Removing and installing turbocharger
75

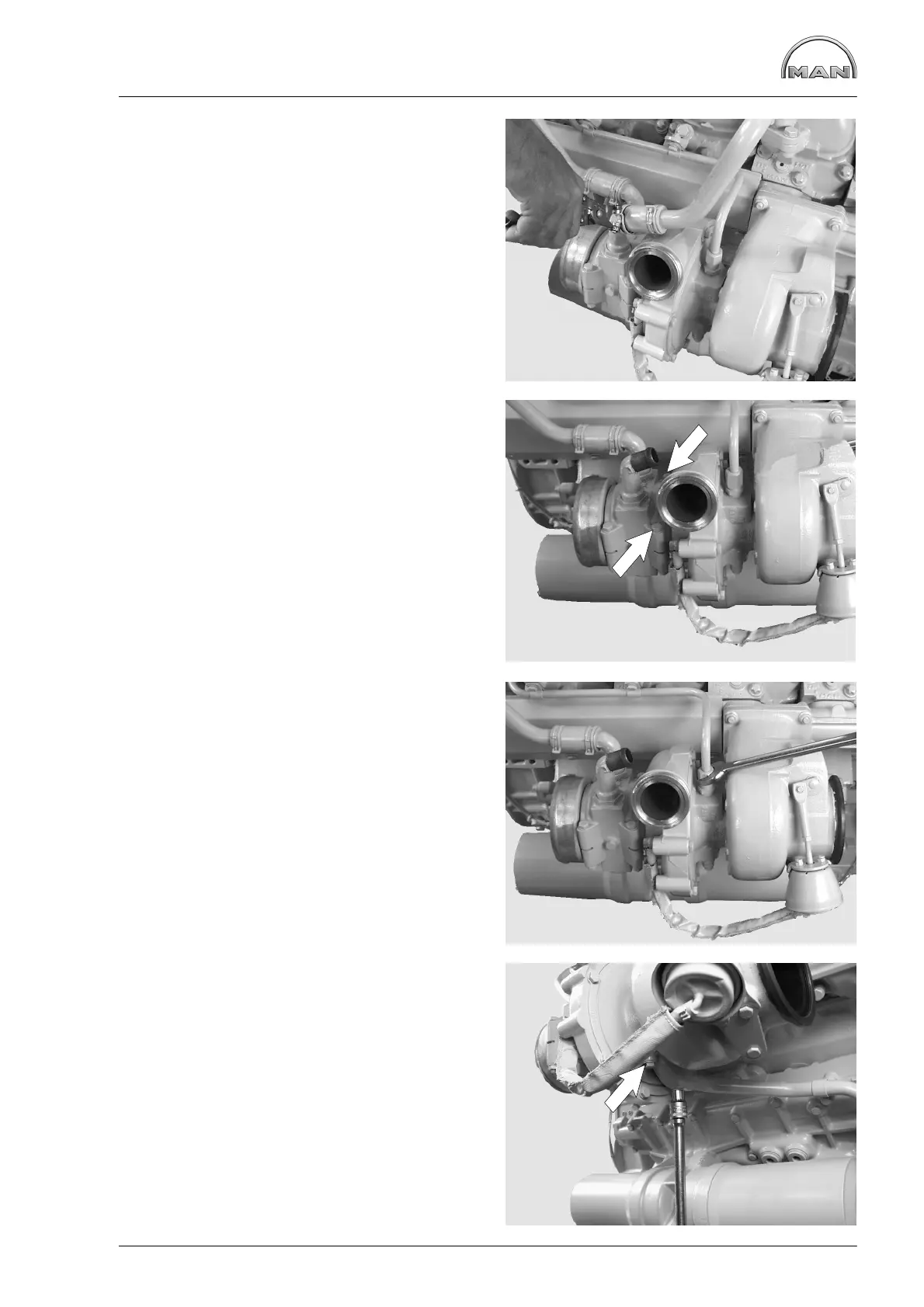

Removing turbocharger
Fig. 1
Remove the charge−air elbow and the charge−air
pipes leading to the turbocharger.
Fig. 2
Detach intake neck.
Fig. 3
Remove oil pressure line from turbocharger.
Fig. 4
Remove oil return line from turbocharger.
