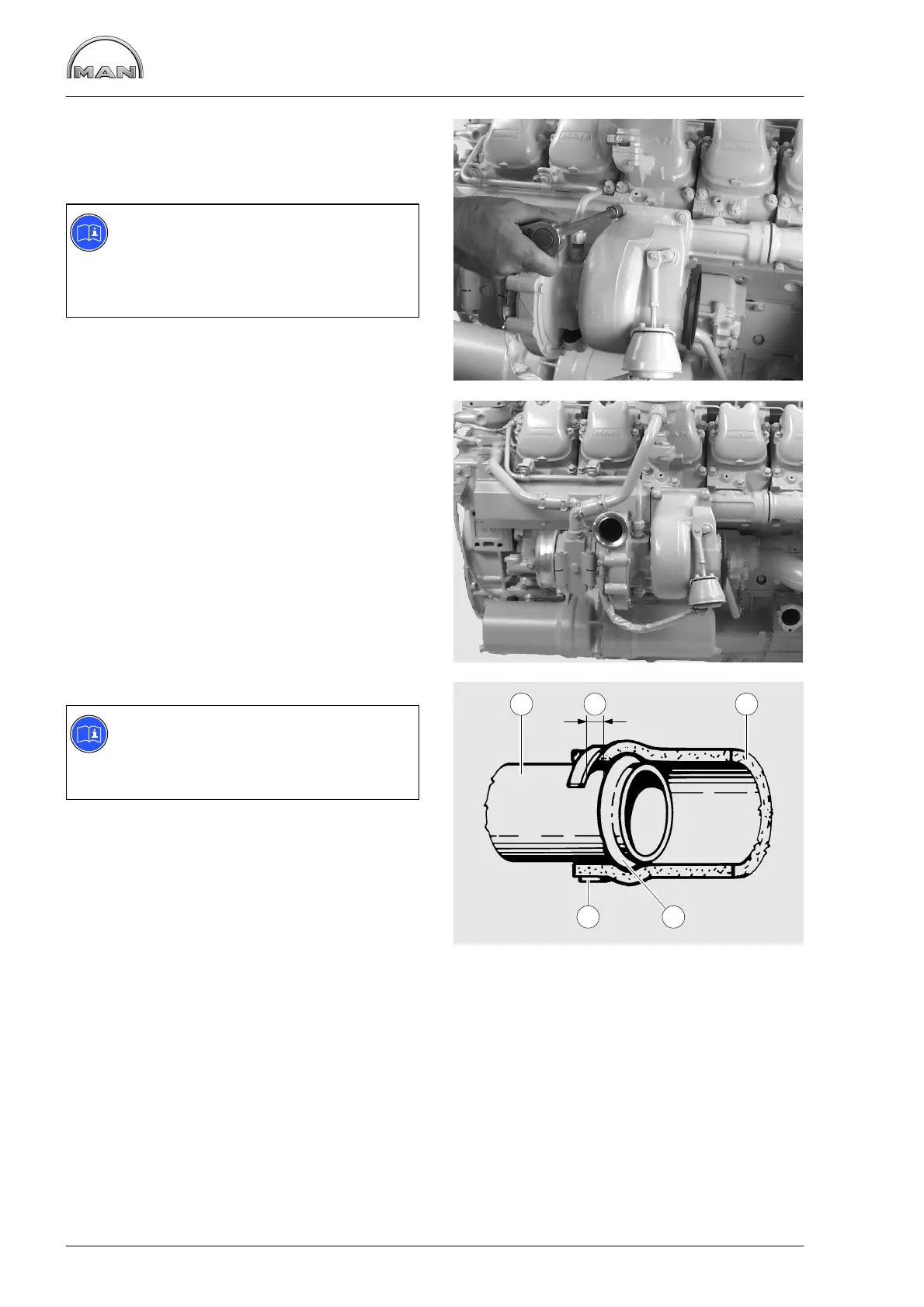

Removing and installing turbocharger
76
Fig. 5
Remove the bolts from the turbocharger.
Take off turbocharger.
Note:
When placing the turbocharger to one
side, ensure extreme cleanliness to pre-
vent penetration of dirt and foreign
bodies.
Installing turbocharger
Fig. 6
The turbocharger is fitted in reverse order.
On assembly, new gaskets and new self−locking
nuts are to be used.
Before connecting the oil supply line, fill the bear-
ing housing with fresh engine oil.
Check all the connections for leaks and to ensure
they are not subjected to strain.
Fig. 7
Note:
Ensure that the clamping area of the
hose is always behind the bead of the
pipe.
1 Pipe
2 Hose
3 Hose clamp
4 Distance
5 Bead on pipe
1 2 3
5 4
