Engine lubrication D 2842 LE 620
Valve opening pressures
Bypass valve for oil filter 2,2−2,8 bar
Overpressure valve on the oil pump 9−10 bar
Pressure valve of the oil injection nozzles
Opening pressure 1,66−1,9 bar
Pressure at max. opening 1,3−1,6 bar

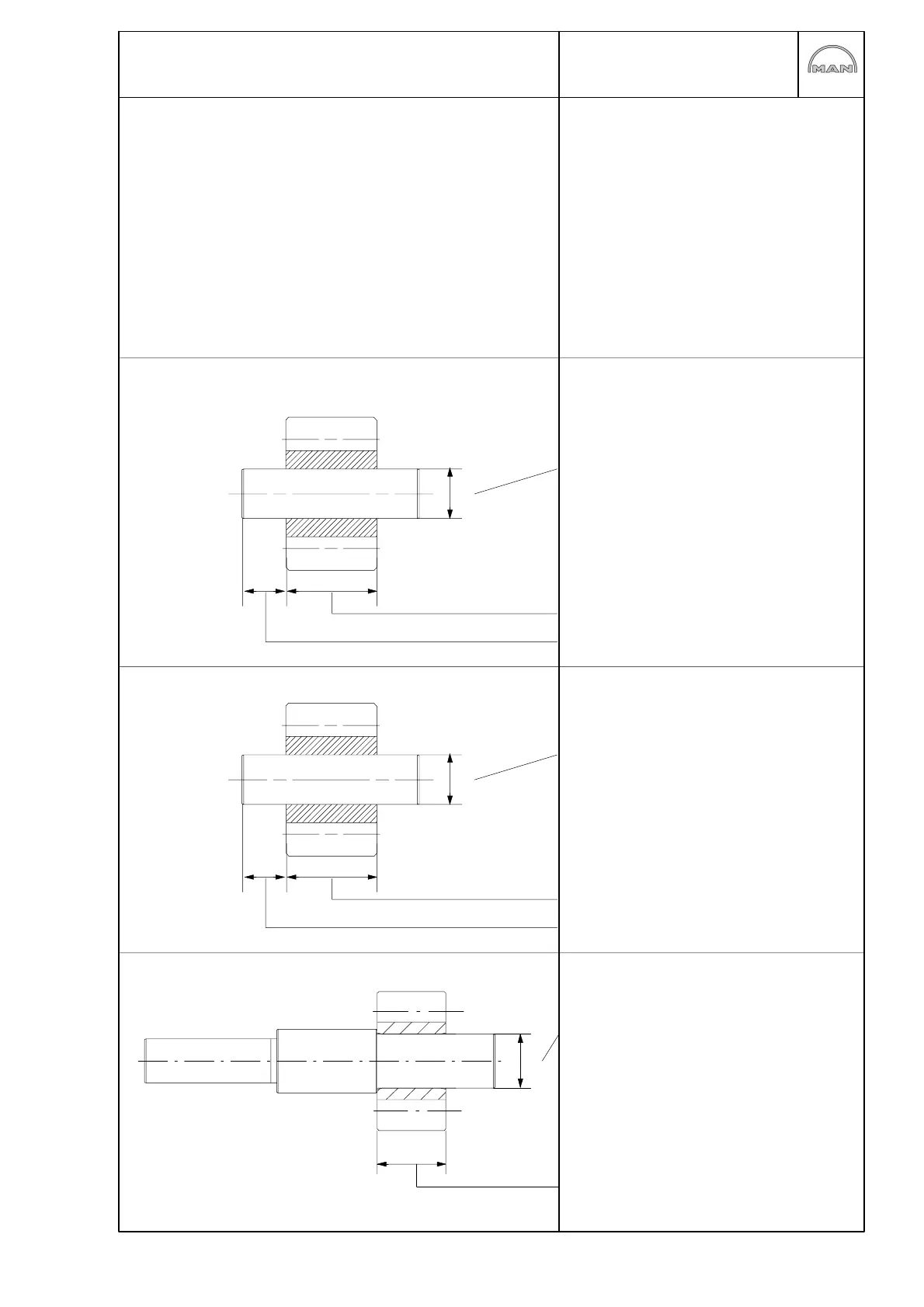

Oil pump D 2842 LE 620
3/2−gear oil pump
Oil pump wheel
Gear width: 34 mm
Shaft: 21,930−21,940 mm
Bore Ø in housing: 22,000−22,021 mm
Radial clearance 0,060−0,091 mm
Press on force: 12200 N
Housing depth: 34,000−34,039 mm
Axial clearance: 0,050−0,128 mm
33,911−33,950 mm
14,5−14,7 mm
Gear width: 38 mm
Shaft: 17,930−17,940 mm
Bore Ø in housing: 18,000−18,018 mm
Radial clearance 0,060−0,088 mm
Press on force: 10000 N
Housing depth: 38,000−38,039 mm
Axial clearance: 0,050−0,128 mm
37,911−37,950 mm
14,5−14,7 mm
Gear width: 28 mm
Shaft: 21,930−21,940 mm
Bore Ø in housing: 22,000−22,021 mm
Radial clearance 0,060−0,091 mm
Press on force: 10000 N
Housing depth: 28,000−28,033 mm
Axial clearance: 0,040−0,106 mm
27,927−27,960 mm
