Replacing crankshaft seal
(flywheel end)
67

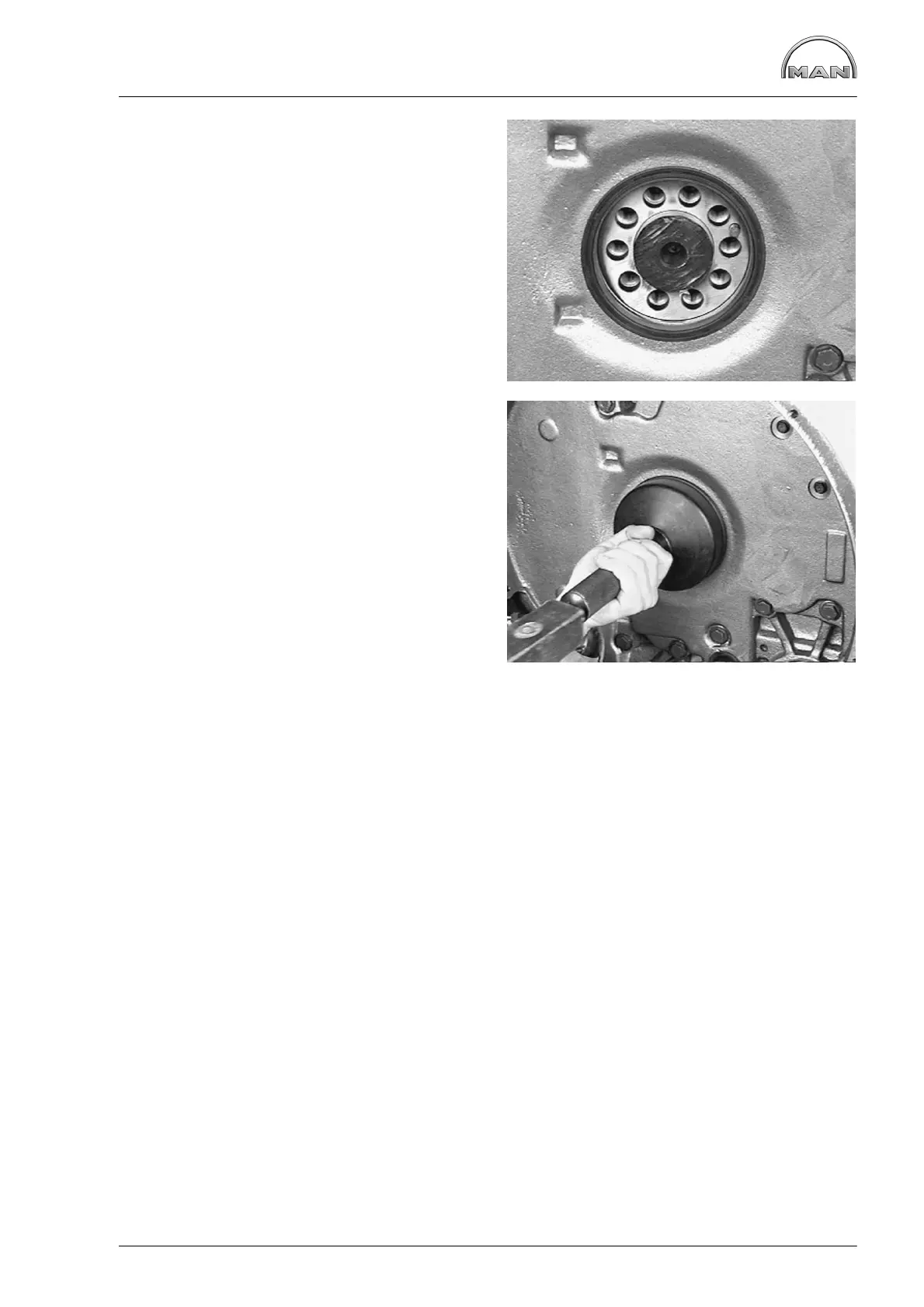

Removing shaft sealing ring
Fig. 1
Remove flywheel, see page 65.
Prisey out the insulation ring with the special tool
or a screwdriver
Fit shaft sealing ring
Fig. 2
When fitting a new shaft seal, you should also ex-
change the bearing race of the flywheel.
Insert the new shaft sealing ring into the flywheel
housing.
Use mandrel (special tool) to drive in sealing ring
until flush.
Refer to the comments and assembly instructions
on page 69.
