1
2
3

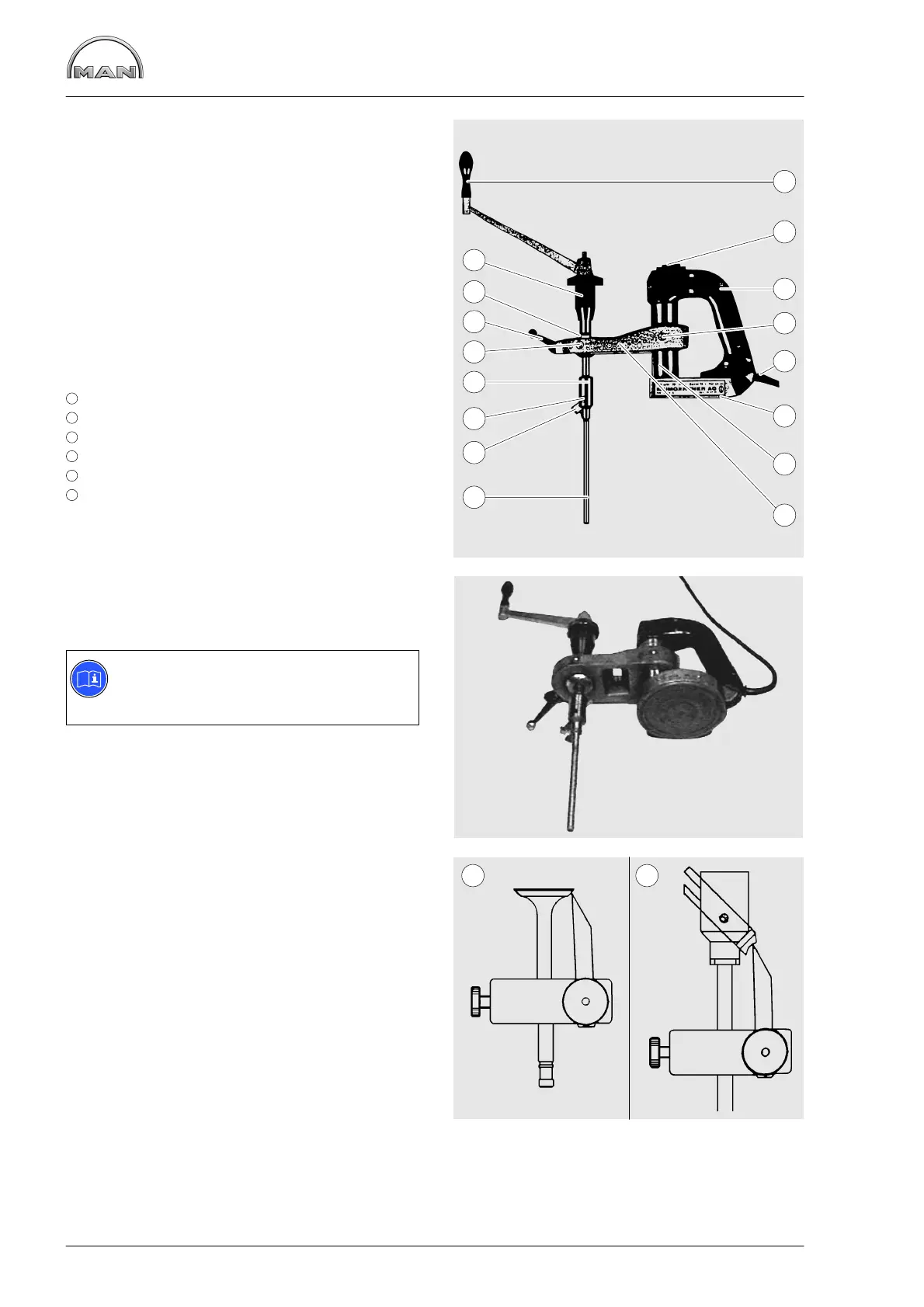

Reworking valve seat
96
Reworking valve seat
(with Mira precision valve seat machining tool)
Fig. 1
À Driving crank
Á Toggle switch
 Handle
à Lubricating nipple
Ä Mains connection
Å Magnetic flange with coil
Æ Guide pipe
Ç Slewing arm
È Guide mandrel
É Tool
11
Hex socket screw
12
Rotary head
13
Lubricating nipple
14
Jaccard lever
15
Guide ball
16
Feed nut with mm scale
Fig. 2
Select a suitable guide mandrel, screw it in and
tighten with a fork wrench.
Note:
For extreme precision work, the guide
mandrel must fit snugly.
Select and insert a forming cutter with the corre-
sponding seat width and corresponding seat angle.
Fig. 3
Adjust the forming cutter with a setting gauge and
tighten with the hexagon socket screw.
Insert the tool complete with guide mandrel in the
valve guide.
2
3
1
4
5
6
7
8
9
10
11
12
13
14
15
16
21
