Replacing cylinder liners
126

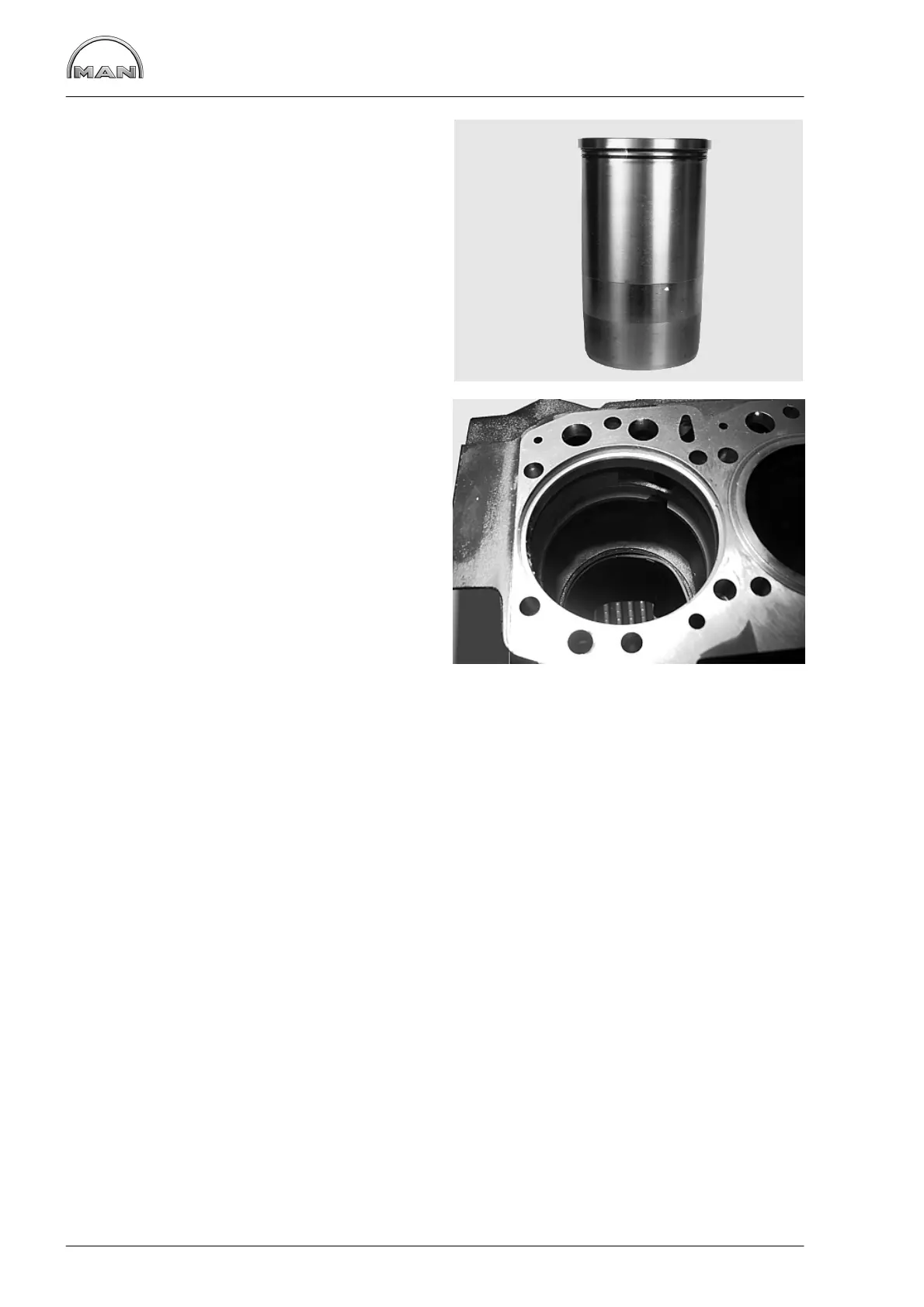

Fig. 5
Set the cylinder liner down in an upright position.
Remove the O-rings.
Number cylinder liners in order of installation.
Fig. 6
Remove the O-rings from the crankcase.
Clean the seat for the cylinder liners in the crank-
case.
