Limit values
Service Data
Dimensions
139

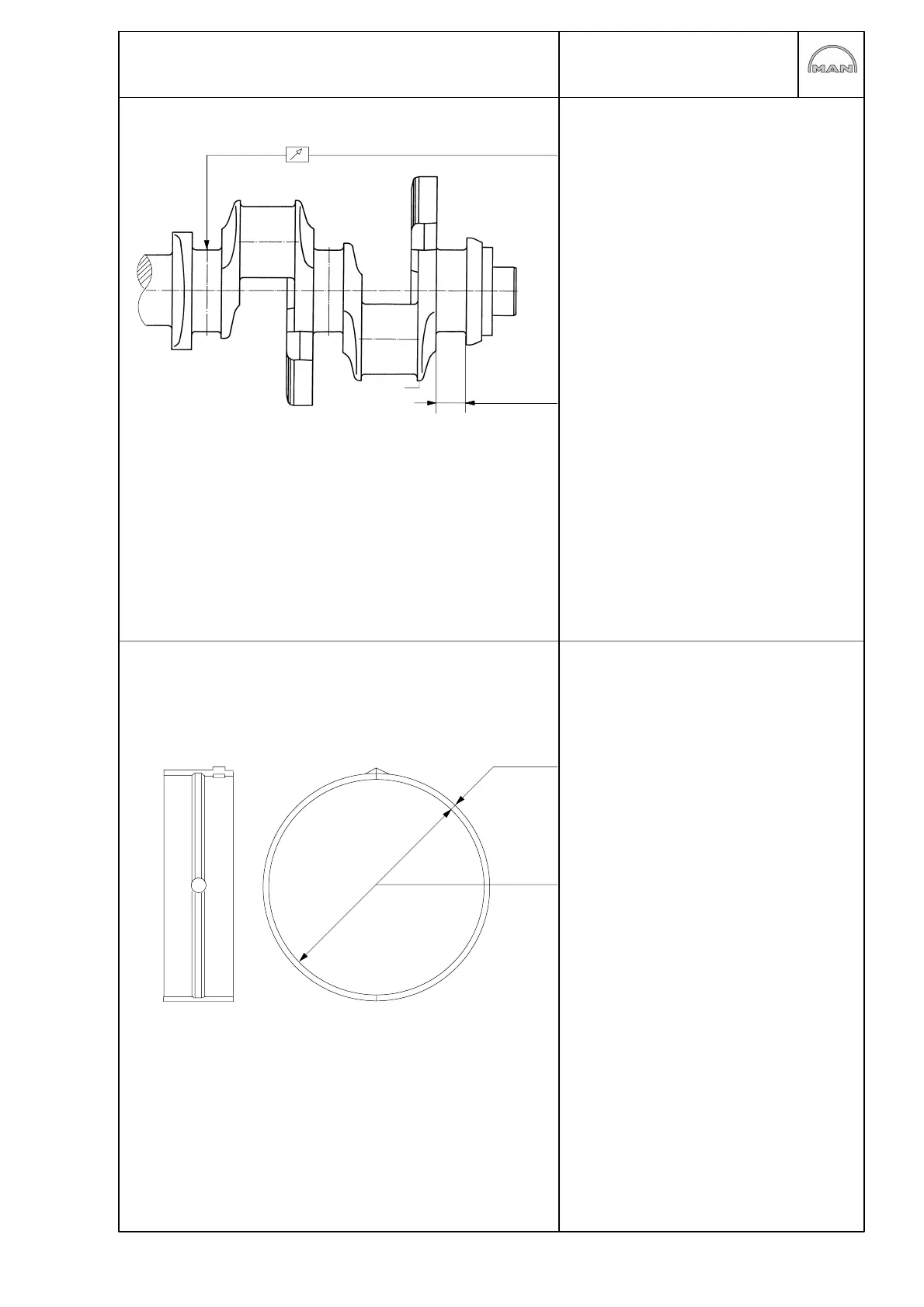

Crankshaft rear end (adjacent to flywheel)
Max. permissible runout with crankshaft
taken up in end bearings:
D 2842 at bearing 4 0,08 mm
Standard size: 38.000−38.062 mm
undersize −0.25: 38.500−38.562 mm
undersize −0.50: 38.500−38.562 mm
undersize −0.75: 39.000−39.062 mm
undersize −1.00: 39,000−39,062 mm
1 = Colour marking for size identification
of thrust bearing journal length
undersize −0,25: red
Undersize −0,50: white
Undersize −0,75: yellow
Undersize −1,00: lilac
Main bearing
Data for wall thickness and bearing
inner diameter also apply to the align-
ment bearing
Standard size: 3.455−3.467 mm
undersize −0.25: 3.580−3.592 mm
undersize −0.50: 3.705−3.717 mm
undersize −0.75: 3.830−3.842 mm
undersize −1.00: 3,955−3,967 mm
Internal bearing Ø when fitted:
Standard size: 104.066−104.112 mm
undersize −0.25: 103.816−103.862 mm
undersize −0.50: 103.566−103.612 mm
undersize −0.75: 103.316−103.362 mm
undersize −1.00: 103,066−103,112 mm
Spread: 0,3−1,2 mm
Marking:
top / bottom
standard size: 0958 / 0079 mm
undersize −0.25: 0962 / 0081 mm
undersize −0.50: 0964 / 0082 mm
undersize −0.75: 0966 / 0083 mm
undersize −1.00: 0968 / 0084
