Removing and fitting vibration damper,
replacing front crankshaft gasket
64
Fitting the vibration damper

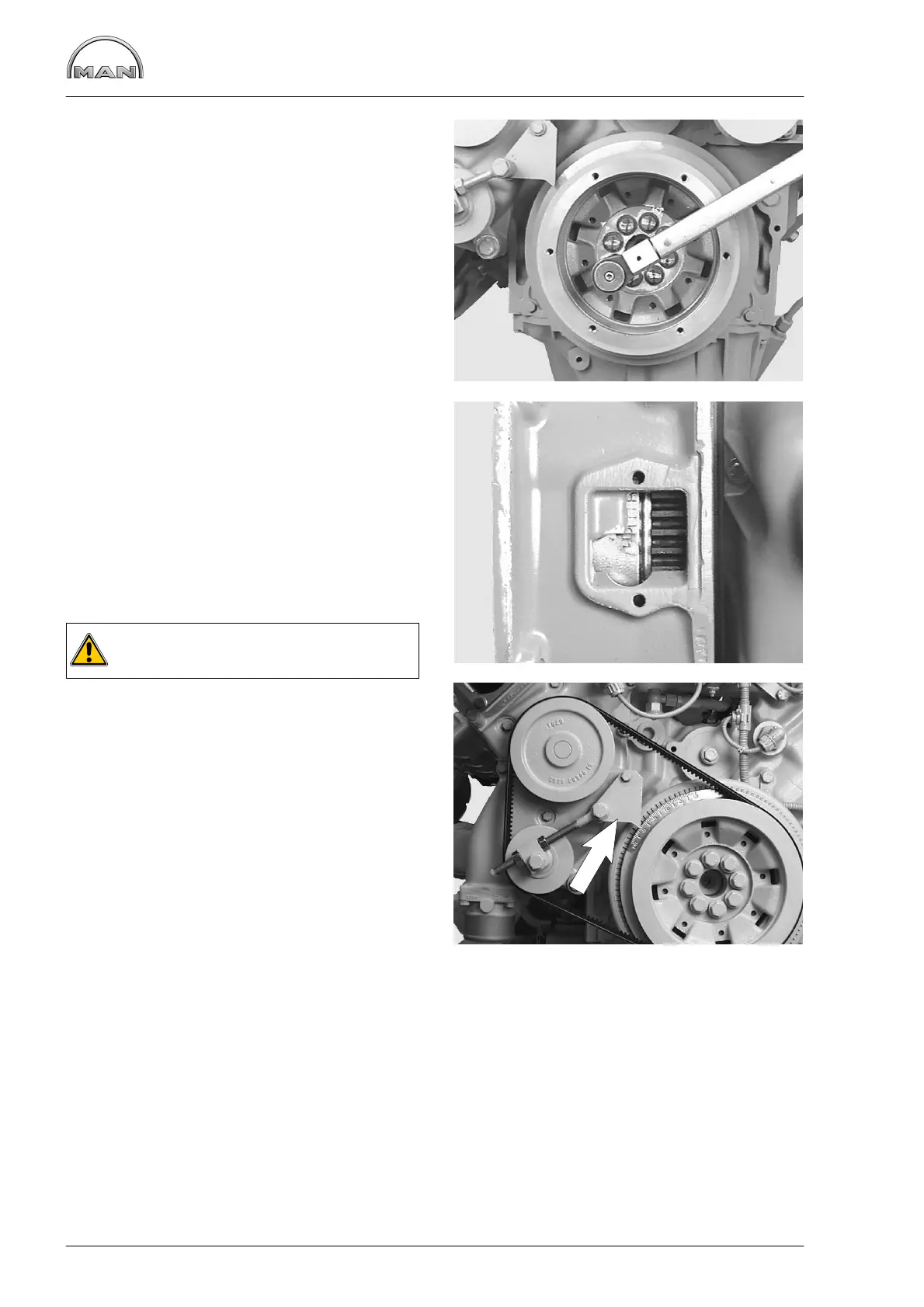

Fig. 12
Position the oil thrower on the crankshaft.
Position the vibration damper on two guide man-
drels (M16x1.5). Ensure that the position of the
graduated disc relative to the crankshaft is correct.
Tighten the mounting bolts with the prescribed
torque.
Fit cranking device.
Fit and tension V-belts, see page 132
Fig. 13 and Fig. 14
During assembly the delivery start indicator on the
vibration damper may have moved out of correct
adjustment.
This is why you should check whether the scale of
degrees on the inspection hole cover of the fly-
wheel housing (picture 14) and on the vibration
damper (picture 15) indicate the same values.
If necessary readjust delivery start indicator.
Caution:
Unblock the crankshaft drive!
