9
10
11
12

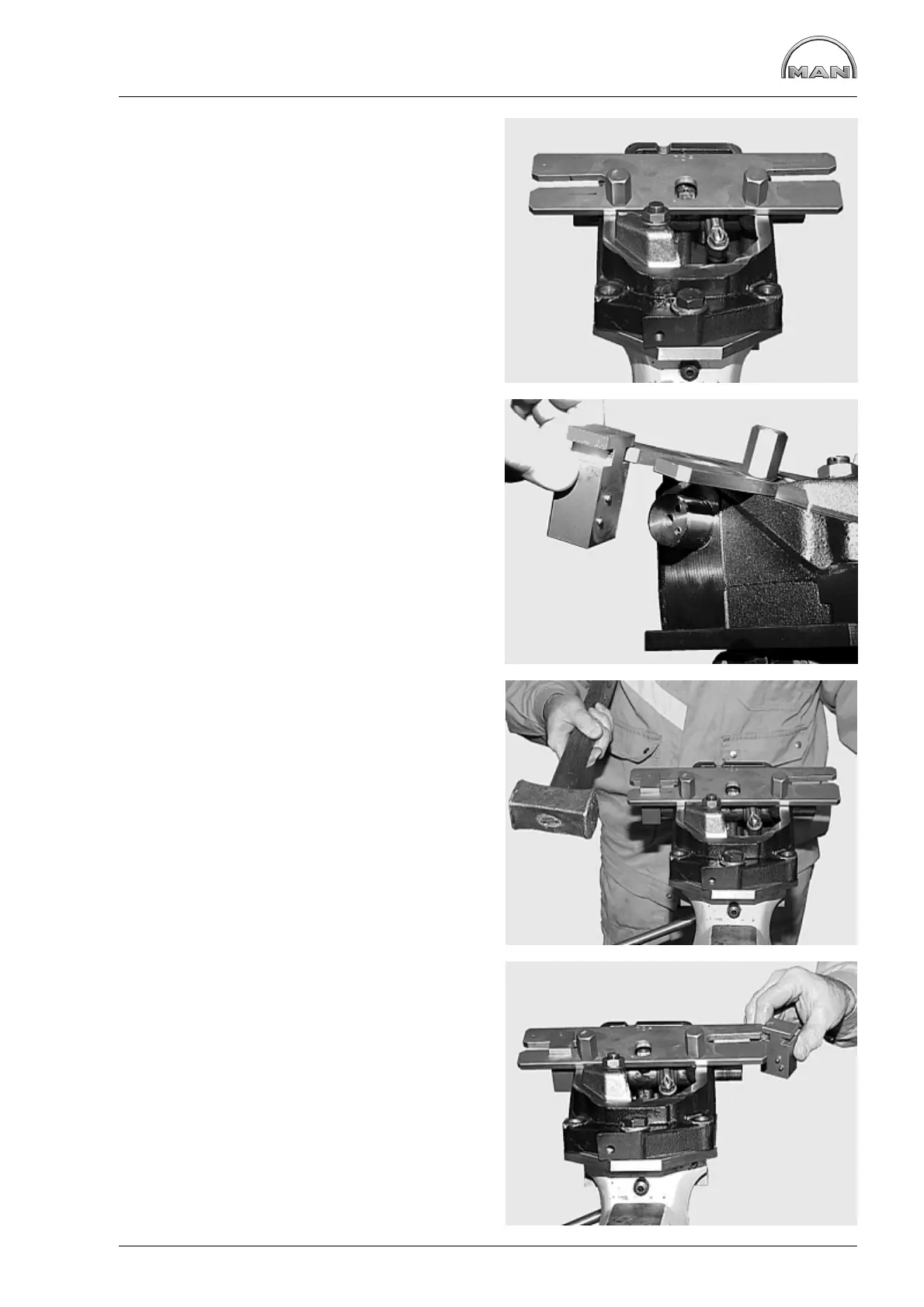

Dismantling and assembling the rocker arm mechanism
85
Fig. 9
Bolt the guide plate onto the rocker arm bearing
shaft − with “TOP” facing the intake side.
Fig. 10
Insert press−in part “A” for the exhaust−side shaft
into the guide plate, ensuring that the alignment
pins fit into the shaft bores.
Fig. 11
Drive the rocker arm shaft fully home into the bear-
ing housing.
Fig. 12
Insert press−in part “B” for the intake−side shaft
into the guide plate, ensuring that the alignment
pins fit into the shaft bores.
Drive the rocker arm shaft fully home into the bear-
ing housing.
