D15 – TURRET MOTOR REDUCER BRAKE REDUCER
DRAIN / REPLACE
Set the lifting platform on a horizontal surface with the engine switched off.
- Open the left turret cover.
- The motor reducer is presented with the valve unit to the rear.

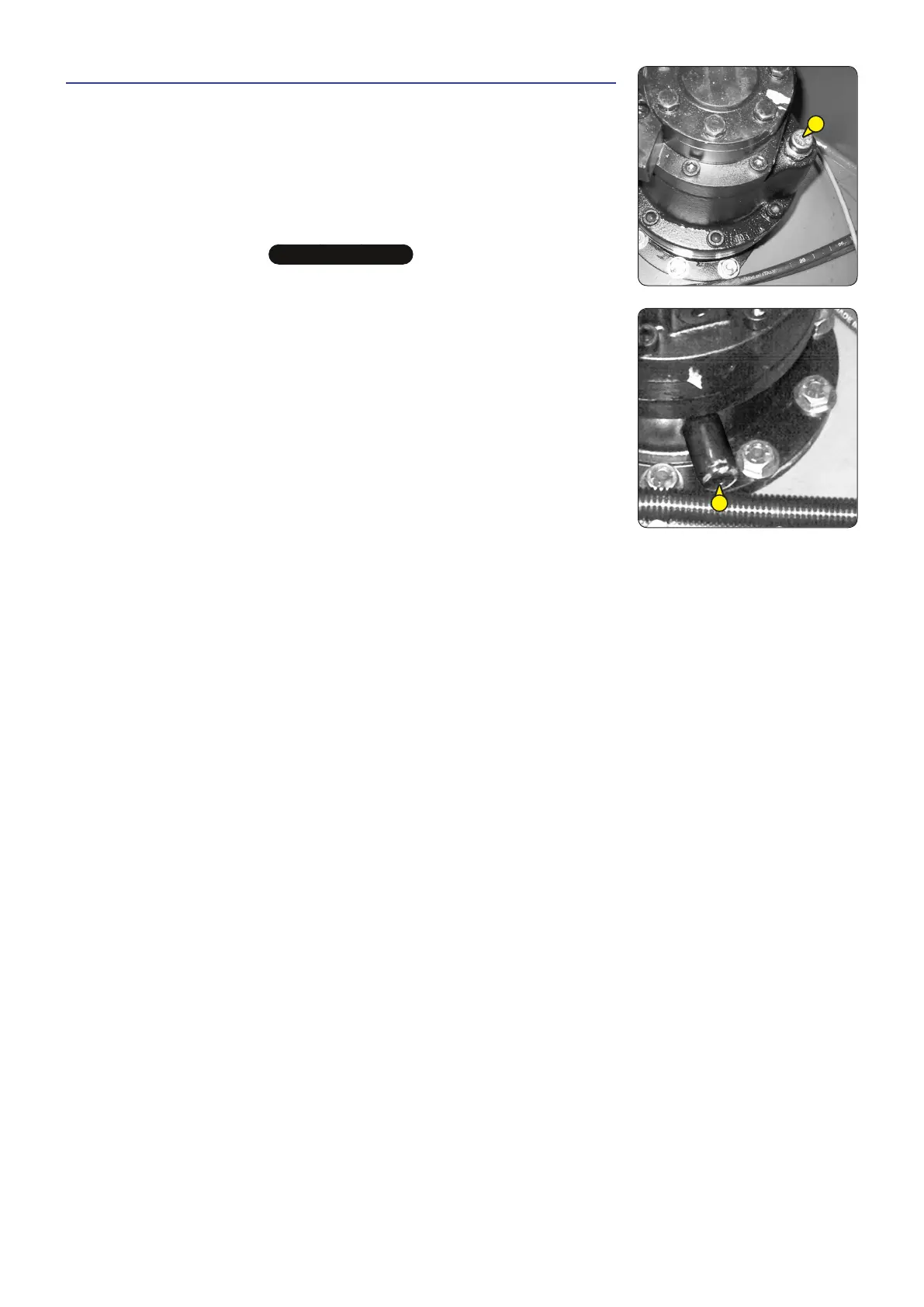

- Remove the sniffler/filling cap 1 to ensure good drainage.
- Note the drain plug 2 located on the right-hand side reducer unit’s sole plate.
- Place a (small) receptacle to catch the oil.
- Unscrew the drain plug.
t
IMPORTANT
t
Dispose of the drained oil in an environmentally friendly manner.
- Refit the drain plug 2
- Use a syringe to fill the reducer via the sniffler/filling hole 2. The oil capacity is 0.85
litres and the level is correct when the sniffler is full of oil.
- Refit the sniffler/filling cap 1.
3 - 28
1
2
647533 (09/10/2015) MAN'GO 12
