D13 – IC ENGINE OIL FILTER
REPLACE
t
IMPORTANT
t
The internal-combustion engine oil and its oil filter must be replaced after the first 50 hours of operation, and
subsequently every 500 hours of operation.
Set the platform on a horizontal surface, leave the engine running at idling speed for a
few minutes and then switch it off.

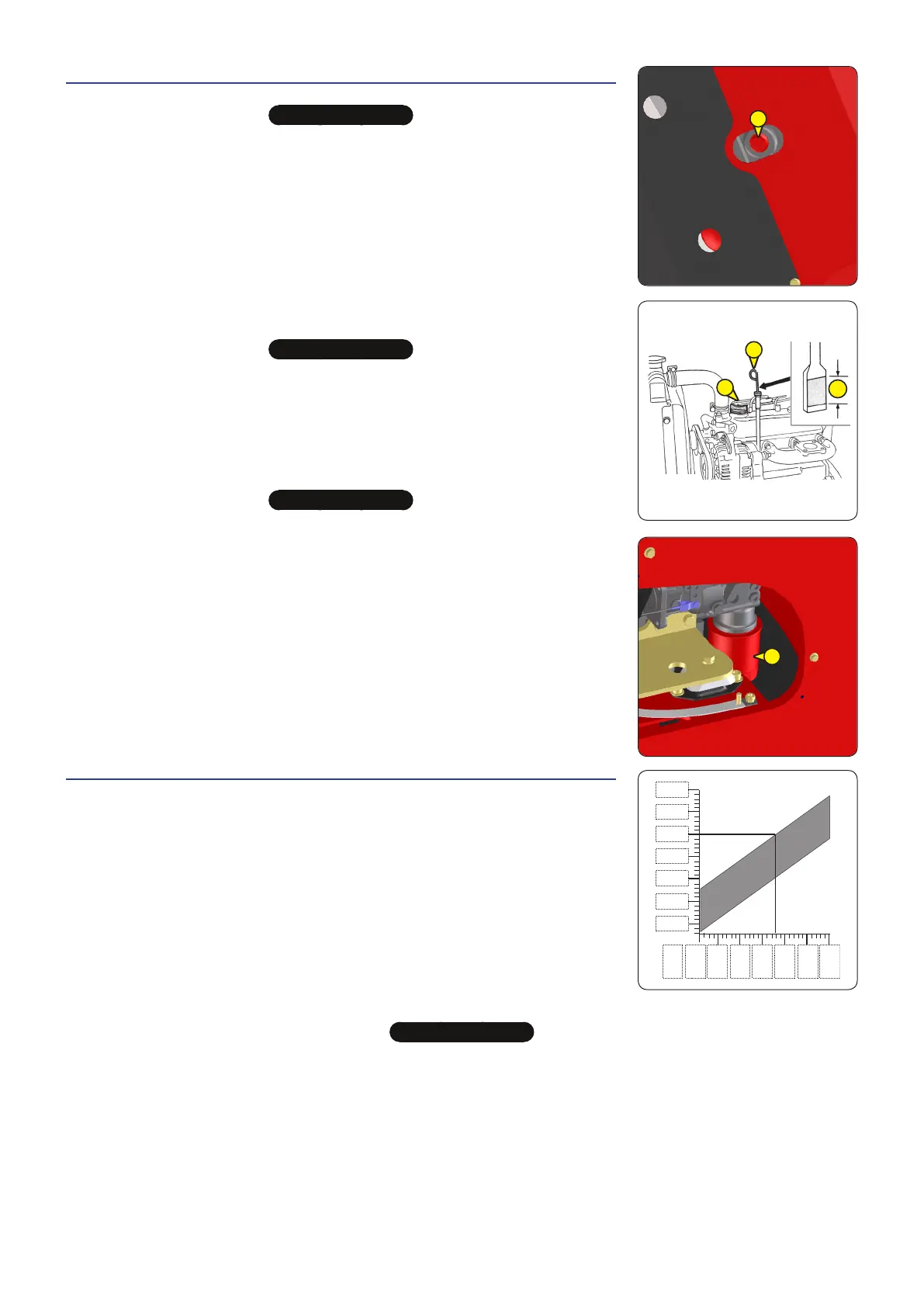

DRAINING THE OIL
- Open the rear cover and the chassis right and left cover.
- Lay a receptacle on the ground.
- Remove the blanking cap 1 located under the engine.
- Remove the filling cap 2 to ensure good drainage.
- When draining is complete, screw the plug back in.
t
IMPORTANT
t
Dispose of the drained oil in an environmentally friendly manner.
FILTER REPLACEMENT
- Remove the engine oil filter 3 and throw it away, together with its seal.
- Clean the filter bracket with a clean lint-free cloth.
- Lightly oil the new seal.
- Refit the oil filter on its bracket.
t
IMPORTANT
t
Tighten the oil filter only by hand and then lock it with a quarter turn from the filter wrench.
REFILLING WITH OIL
- Ensure that the plug 1 is correctly in place and tighten it.
- Top up with oil (See the LUBRICANTS section) via the filling hole 2.
- Wait a few minutes to let the oil flow into the sump.
- Check the level with a dipstick 4.
- Start the engine and leave it to run for a few minutes.
- Check for any leaks from the drain plug and the engine oil filter.
- Stop the engine, wait a few minutes and check that the level is between the 2
notches on the dipstick A.
- Top up, if necessary.
D14 – BATTERY ELECTROLYTE SPECIFIC GRAVITY
CHECK
The electrolyte’s density varies according to the temperature but a minimum level of
1260 at 16°C must be maintained.
In the hatched section (Fig. D10), the battery is normally charged.
Above the hatched section, the battery must be recharged.
The density must not vary by 0.025 unit from one battery element to another.
- Open the battery cover.
- Check the electrolyte density in each battery element with an acidometer.
- Never check after having added distilled water. Recharge the battery and wait 1
hour before checking the battery electrolyte’s density.
t
IMPORTANT
t
Manipulating and servicing a battery can be dangerous; take the following precautions:
- Wear protective goggles.
- Keep the battery horizontal when manipulating it.
- Never smoke or work close to a naked flame.
- Work in a sufficiently well-ventilated area.
- If some electrolyte splashes onto your skin or in your eyes, rinse the affected area thoroughly with cold water for 15 minutes and call a doctor.
3 - 27
1.240
1.250
1.260
1.270
1.280
1.290
1.300
°C
°F
18
0
-10
14
0
32
10
50
20
68
30
86
40
104
1
4
2
A
3
647533 (09/10/2015) MAN'GO 12
