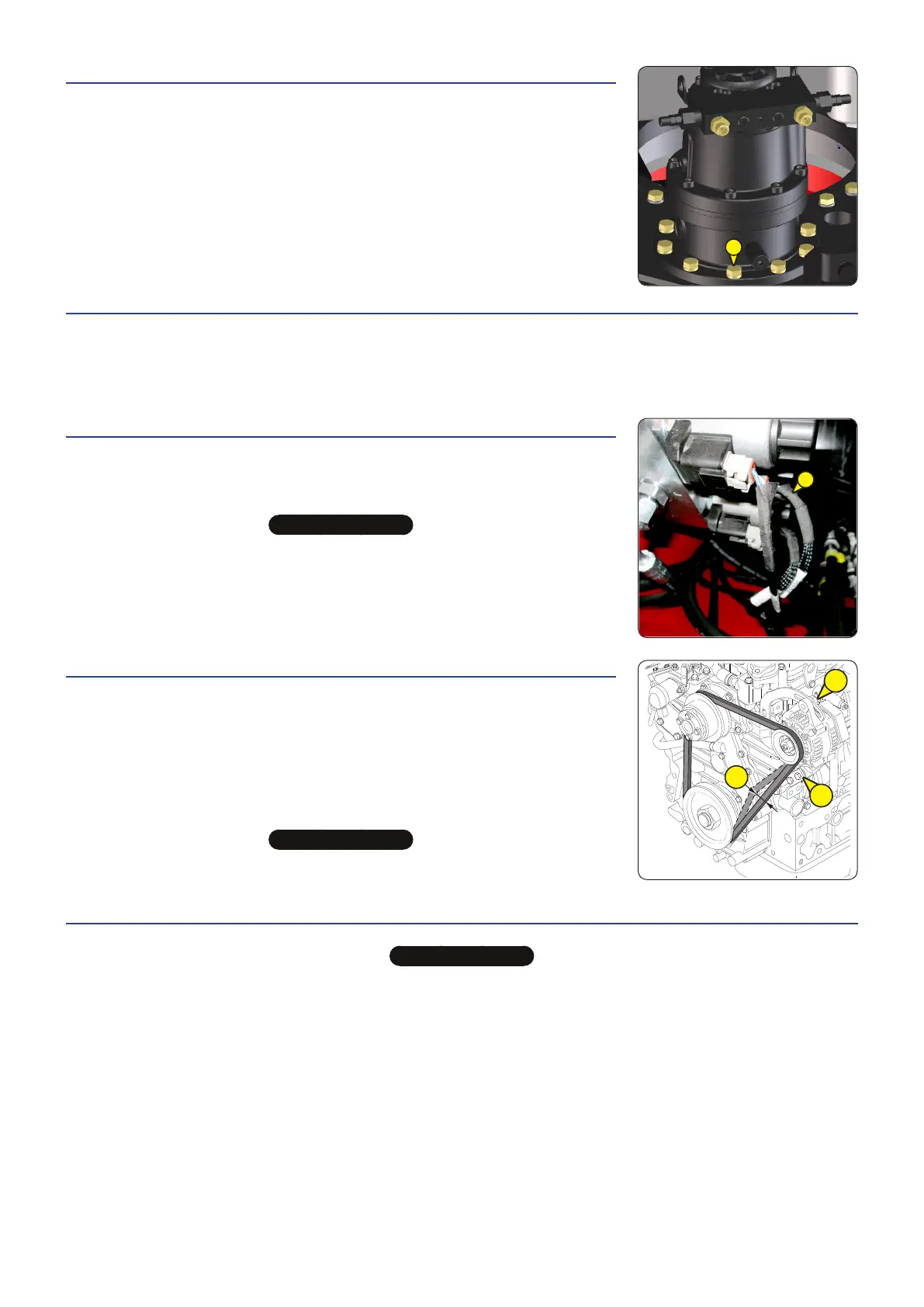

D8 – TIGHTENING THE TURRET ROTATION MOTOR’S BOLTS
CHECK
Set the lifting platform on a horizontal surface with the engine switched off.
- Check the tightness of the nine screws 1 : the screws’ tightening toque 1 is 8 daN.m
± 10%.
D9 – TIGHTENING THE BOLTS ON THE TURRET ORIENTATION CROWN GEAR
CHECK
- The tightness of the screws must be checked at the latest after 50 hours of operation. This check must then be repeated
every 500 hours of operation.
- The tightening torque for the screws is 12 daN.m ± 10 %.
D10 – BRAKING
CHECK
- Check the braking system by disconnecting the coil EV100 from the hydraulic unit
on the chassis (to access the unit, remove the casing on the front side of the chassis)
and make a translation movement.
t
IMPORTANT
t
The lifting platform must not move forward.
- After the test, reconnect the coil.
D11 – ALTERNATOR/FAN/CRANKCASE BELT
REPLACE
- Open the rear cover.
- Loosen the bolts 1 two or three turns.
- Swivel the alternator assembly to free the belt and the replace it with a new one
(see: 3 - MAINTENANCE: FILTER ELEMENTS AND BELTS).
- Adjust the tension between the crankcase and alternator pulleys.
- Under thumb pressure (98 N), the tension should be 7 to 9 mm.
- Retighten the bolts 1.
t
IMPORTANT
t
Recheck the belt tension after the first 20 hours of operation.
D12 – IC ENGINE OIL
DRAIN / REPLACE
t
IMPORTANT
t
The internal-combustion engine oil and its oil filter must be replaced after the first 50 hours of operation, and subsequently every 500 hours of operation.
3 - 26
1
1
A
1
1
647533 (09/10/2015) MAN'GO 12
