Manitou MAN'GO 12 - 500 Hour Hydraulic Maintenance; Auxiliary Hydraulic Oil Filter Replacement; Hydraulic Oil Draining and Refilling; Hydraulic Hoses Condition Check

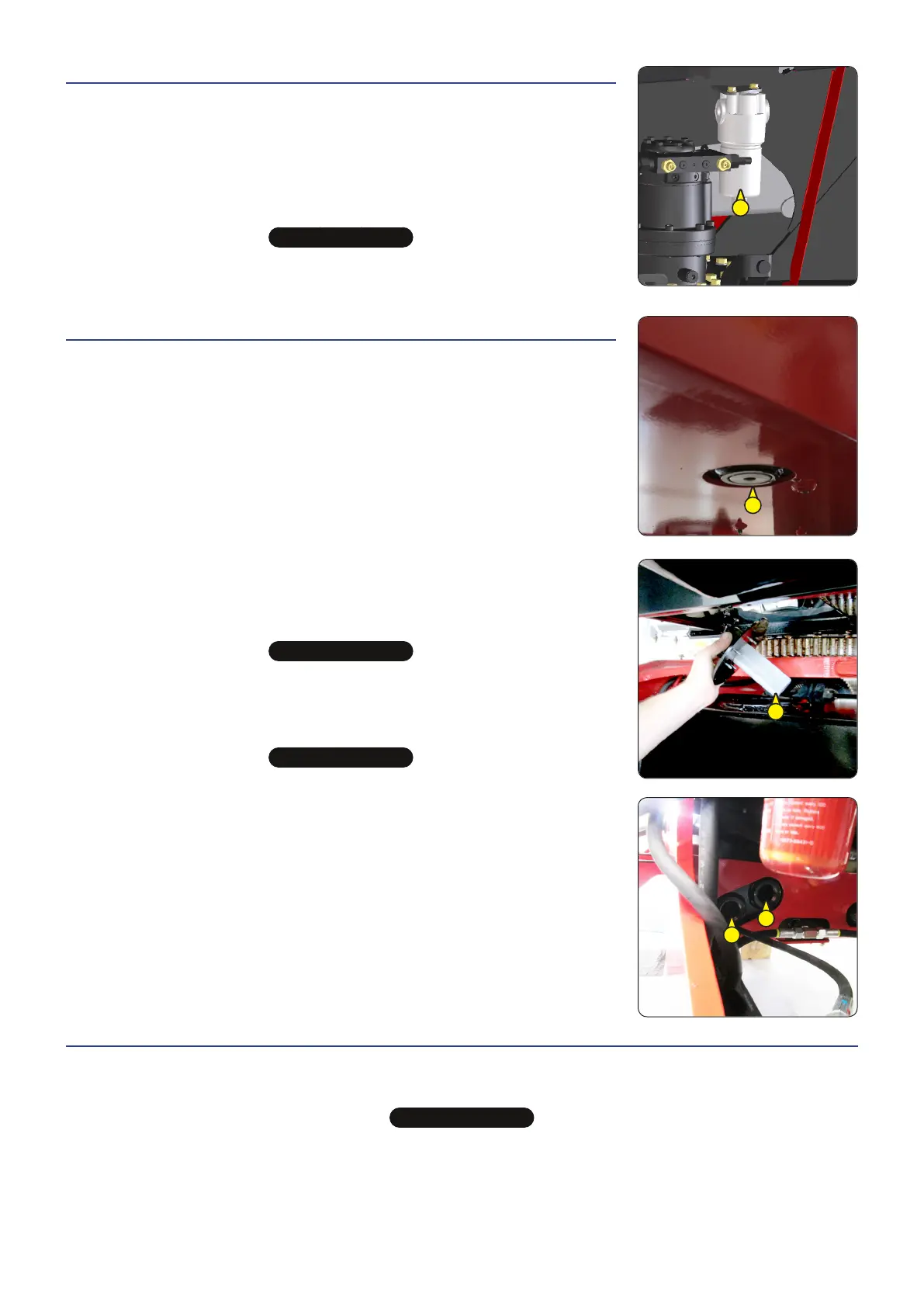

D5 – AUXILIARY HYDRAULIC OIL FILTER CARTRIDGE
REPLACE
- With the machine stopped and the battery cutout in the OFF position.
- Unscrew the filter body 1.
- Remove the filter cartridge and replace it with a new one (see “FILTER ELEMENT”
section).
NB: Pay attention to the direction for fitting.
- Refit the filter body 1.
t
IMPORTANT
t
Carefully clean the exterior of the filter and its surroundings before performing any work in order to avoid any risk of
pollution getting into the hydraulic circuit.
D6 – HYDRAULIC OIL
DRAIN - REPLACE
- Set the lifting platform on a horizontal surface in transport position with the engine off.
DRAINING THE OIL
- Set a receptacle under the drain plug 1.
- Remove the drain plug 1.
- Remove the filling cap to facilitate draining.
CLEANING THE SIEVE
- Remove the sieve 2; clean it with a jet of compressed air.
- Refit the sieve.
CLEANING THE STRAINERS
- Remove the chassis left cover to access the strainers 3 and 4.
- Remove the strainers 3 and 4 and clean them wish a compressed air jet.
- Refit the strainers in place.
REFILLING THE OIL
t
IMPORTANT
t
Use an oil bath and a very clean funnel; clean the top of the oil can before filling.
- Refit the drain plug 1 and tighten it.
- Refill with hydraulic oil (see the LUBRICANTS section) via the filling hole.
- The oil level should be above the red mark on the gauge.
t
IMPORTANT
t
Dispose of the drained oil in an environmentally-friendly manner.
1
2
3
D7 – CONDITION OF THE HOSES
CHECK
- Check the apparent condition (cracking) of the hoses subject to heat stresses and UV; their technical characteristics may
have altered (porosities).
t
IMPORTANT
t
BEWARE OF LEAKS
Hydraulic oil escaping under high pressure can pierce the skin and cause severe lesions. If you are injured by a jet of oil under pressure, immediately consult a doctor.
If you are in doubt about any leak, do not search with your hand: check with a piece of cardboard while protecting your hands and your body.
For your safety’s sake, replace worn hose.
4
3 - 25
1
647533 (09/10/2015) MAN'GO 12
