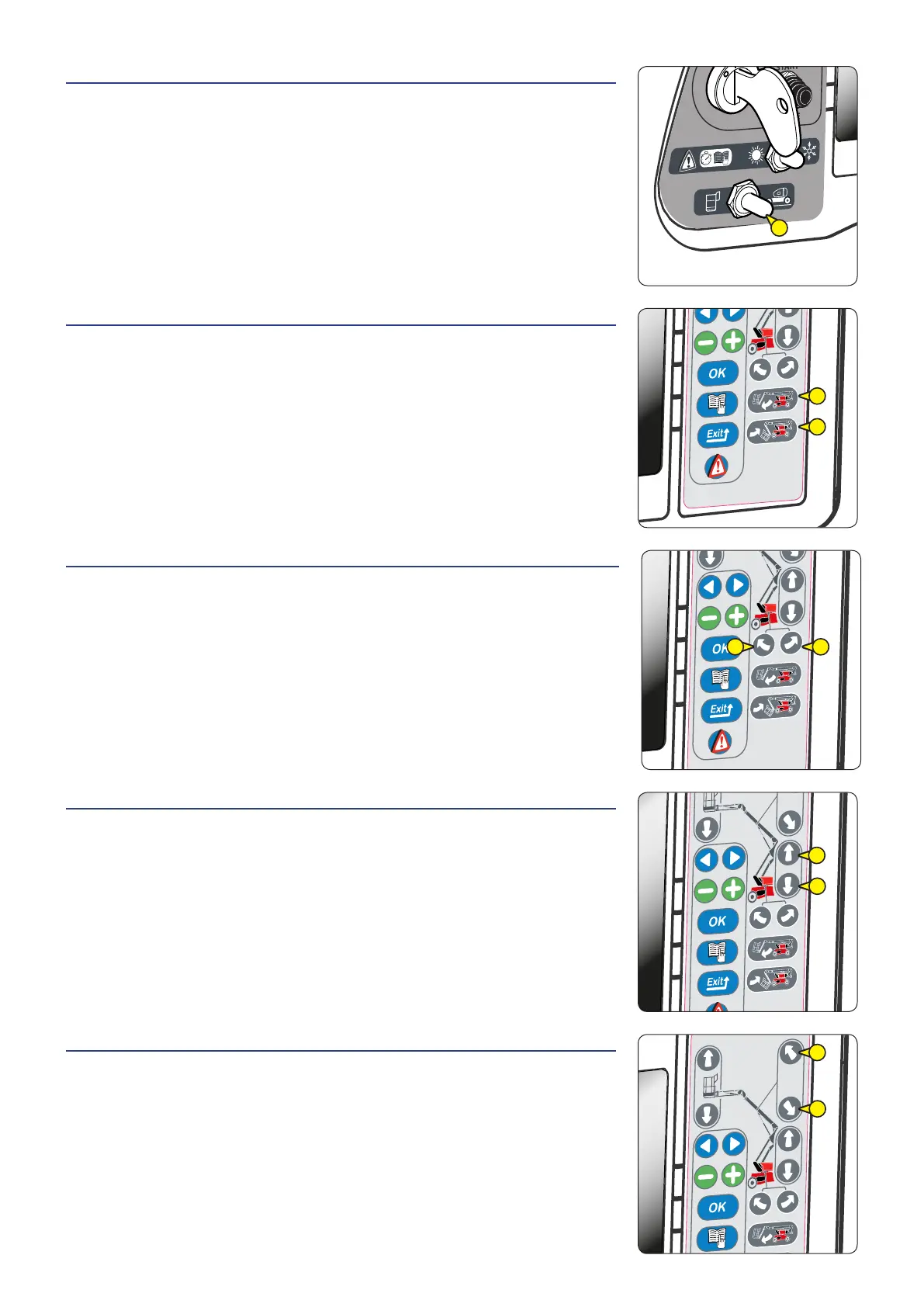

8 - "DEAD MAN'S" FUNCTION
The button must be held down in the Dead Man’s position (position 2) to provide power
to the base control, at the same time as holding down the lifting and rotation keys.
8
9 - BASKET TILT DOWN / TILT UP BUTTON
Using these keys at the same time as pressing button 8 to the Dead Man’s position,
control correction of the basket’s horizontality or the complete folding back of the
basket in Transport position.
9A : TILTING THE BASKET DOWNWARDS
- Hold down the Dead Man’s button 8 and press key 9A.
9B : TILTING THE BASKET UPWARDS
- Hold down the Dead Man’s button 8 and press key 9B.
10 - TURRET ROTATION KEYS
Using these keys at the same time as pressing button 8 to the Dead Man’s position,
enable you to rotate the turret.
10A : ROTATING THE TURRET LEFT
- Hold down the Dead Man’s button 8 and press key 10A.
10B : ROTATING THE TURRET RIGHT
- Hold down the Dead Man’s button 8 and press key 10B.
11 - LOWER ARM LIFTING AND LOWERING KEYS
Using these keys at the same time as pressing button 8 to the Dead Man’s position
enables the lower arms to be lifted and lowered.
A : LIFTING THE LOWER ARMS
- Hold down the Dead Man’s function 8 and press key 11A.
B : LOWERING THE LOWER ARMS
- Hold down the Dead Man’s function 8 and press key 11B.
12 - EXTEND / RETRACT TELESCOP KEYS
Using these keys at the same time as pressing button 8 to the Dead Man’s position
enables the telescop to be extended and retracted.
A : EXTENDING THE TELESCOP
- Hold down the Dead Man’s function 8 and press key 12A.
B : RETRACTING THE TELESCOP
- Hold down the Dead Man’s function 8 and press key 12B.
9B
9A
11B
11A
12A
12B
10A
10B
2 - 30
647533 (09/10/2015)
MAN'GO 12
