Manitou MAN'GO 12 - Basket Control Station - System Status; Fuel Level Indicator and Speed Selection; Overload and Tilt Indicators; Use Under Tilt Button

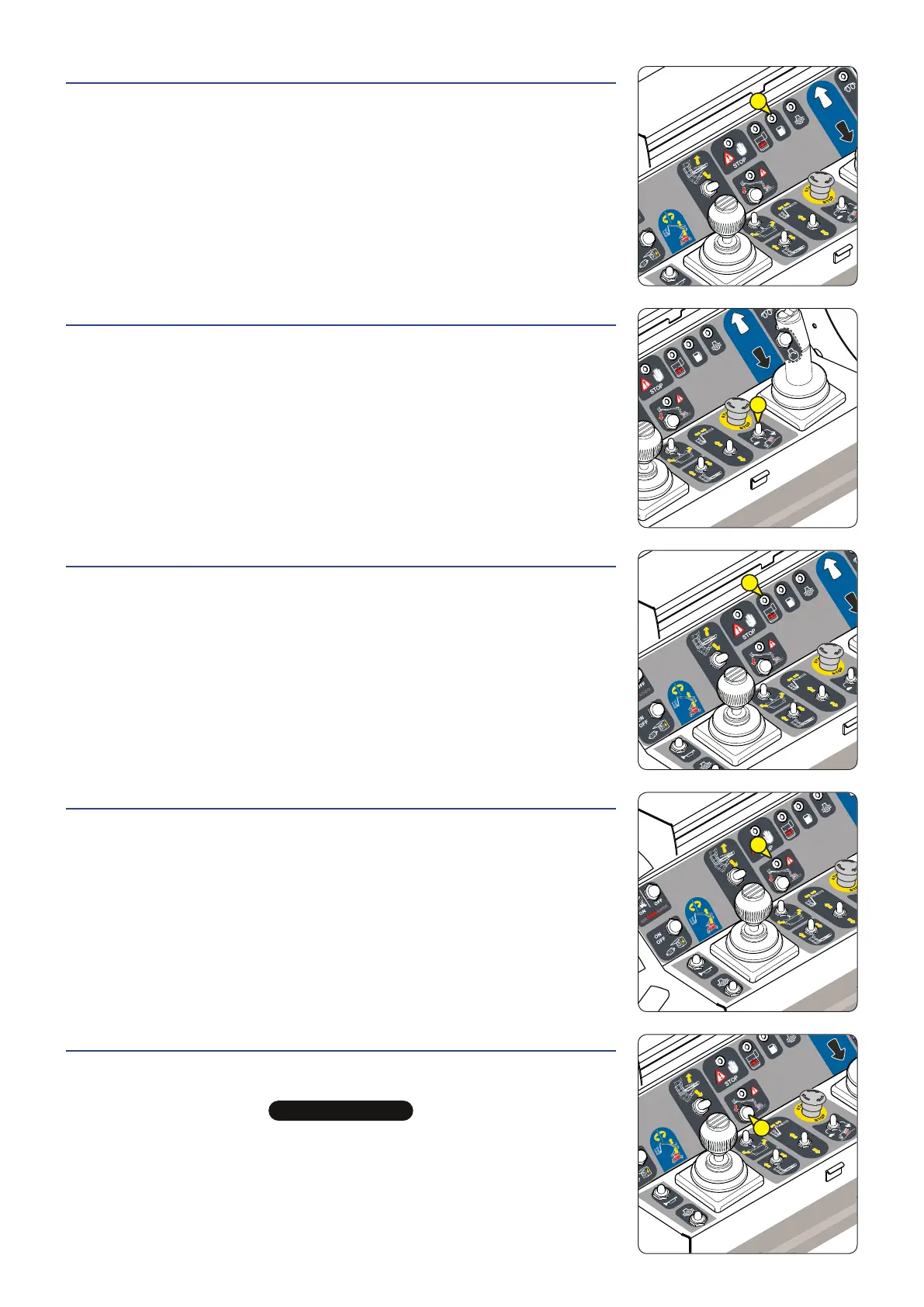

27 - LOW FUEL LEVEL INDICATOR
This indicator light illuminates when the fuel level is low and the basket buzzer is activated :
• Level 1 of alarm: 3 beeps every 10 minutes
• Level 2 of alarm: 3 beeps the every 1 minute
• Level 3 of alarm: 3 beeps every 10 seconds and blocking of the movements rises
after 5 seconds of activation.
28 - TRANSLATION SPEED SELECTION CONTACTOR
This contactor has 3 positions.
POSITION 1 : TORTOISE (SLOW SPEED)
POSITION 2 : RAMP (SLOW SPEED WITH FULL POWER) Only if crossing a very steep ramp.
POSITION 3 : HARE (HIGH SPEED)
NB: When the selector switch is in position 3 (high speed) and the machine is in
4-wheel drive, the switch moves automatically to position 2 (ramp speed).
29 - “OVERLOAD” INDICATOR LIGHT
This indicator light illuminates if the basket is overloaded and the buzzer sounds
continuously (see the SAFETY SYSTEMS section).
30 - “TILT” INDICATOR LIGHT
When the lifting platform reaches the maximum authorised tilt, the LED lights up, any
movements to raise the arms are blocked and the buzzer sounds with intermittent
long beeps.
31 - “USE UNDER TILT” BUTTON
This button enables you to utilise the prohibition on movements when the lifting
platform is tilting (see the SAFETY SYSTEMS section”).
t
IMPORTANT
t
Dans le cas d’une utilisation en dévers il y a un risque de perte de stabilité. La surcharge du panier reste
néanmoins active.
27
28
29
30
31
2 - 35
647533 (09/10/2015) MAN'GO 12
