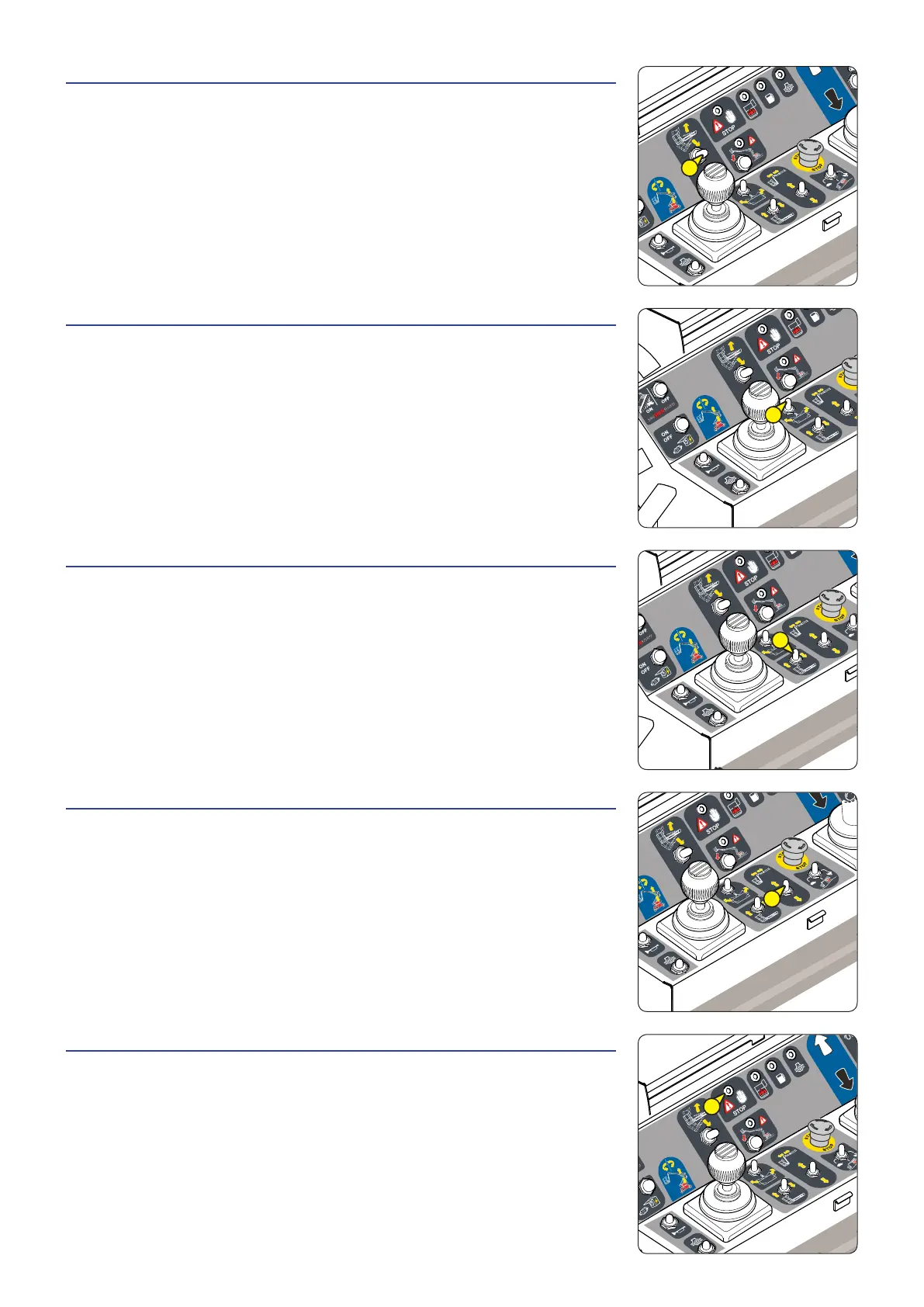

32 - BASKET INCLINATION CONTACTOR
This contactor enables you to correct the basket’s horizontality or to fold the basket
back completely in Transport position.
CORRECTING THE BASKET UPWARDS
- Push the contactor up.
CORRECTING THE BASKET DOWNWARDS
- Pull the contactor down.
33 - BASKET ROTATION CONTACTOR
This contactor enables you to rotate the basket left and right
RIGHT ROTATION
- Push the contactor to the right.
LEFT ROTATION
- Push the contactor to the left.
34 - RAISE /LOWER BASKET PENDULAR ARM CONTACTOR
This contactor enables you to raise and lower the basket pendular arm.
RAISING THE PENDULAR ARM
- Push the contactor forwards.
LOWERING THE PENDULAR ARM
- Pull the contactor backwards.
35 - EXTEND / RETRACT TELESCOPE CONTACTOR
This contactor enables you to extend and retract the pendular unit telescope.
EXTENDING THE TELESCOPE
- Push the contactor forwards.
RETRACTING THE TELESCOPE
- Push the contactor backwards.
36 - MACHINE FAULT LED
- This indicator light comes on and a short intermittent buzzer signal sounds when a major fault
occurs (see the SCREEN DISPLAY paragraph – page descriptions).
- Put the lifting platform out of service immediately.
- See the fault code display on the base screen.
