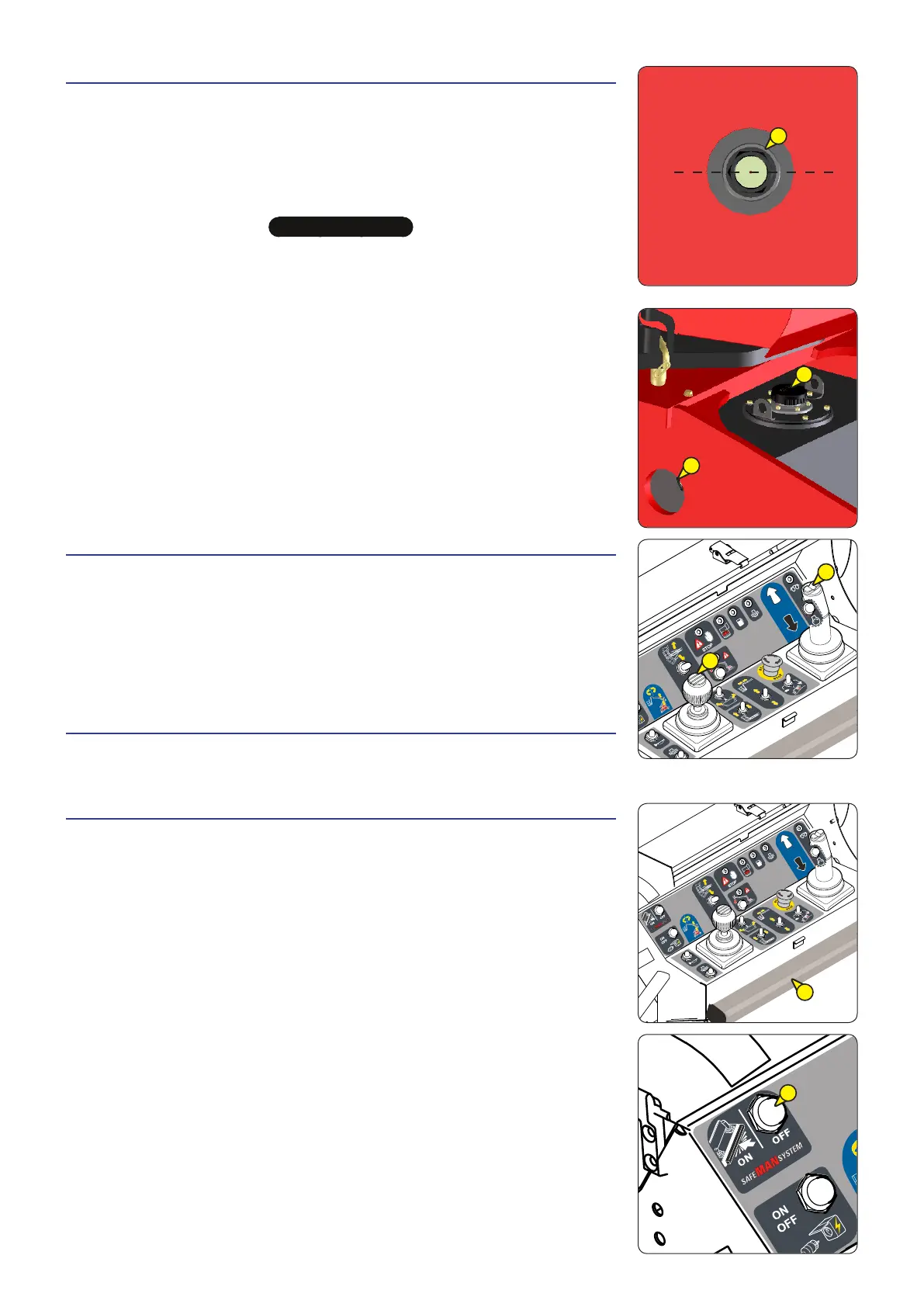

A6 – HYDRAULIC OIL LEVEL
CHECK
- Set the platform on a horizontal surface in transport position with the engine
switched off.
- The oil level should be in the middle of the visual indicator 1.
- Make a 90° turret rotation on the left.
- Remove the front cover.
- If necessary, top up the oil (See the “LUBRICANTS section) via the filling hole 2.
t
IMPORTANT
t
There may be a difference in the oil level of 10 to 20mm between warm and cold oil.
It is advisable to top up the oil when the oil is warm.
A7 – CONDITION OF THE JOYSTICK BELLOWS
CHECK
To check their condition, climb into the basket with the engine switched off.
- Check that the rubber bellows 1 on the joysticks are in good condition by operating
them as if you were making a movement.
The bellows should not have any cracks or tears, through which water could penetrate
risking damage to the machine’s operation.
A8 – CONDITION OF THE WHEELS AND TYRES
CHECK
- Check the condition of the tyres for any cuts, tears, bulges, worn patches, etc.
A9 – SAFE MAN SYSTEM (OPTION) STATUS
CHECK
Press on the pressure-sensitive edge 1 and confirm:
- All platform movements stop.
- The blue warning light and the audible alarm operate.
- The operation of the nacelle movements when the “OFF” button is pressed once.
If the pressure-sensitive edge is defective, the blue warning light flashes faster and a
special alarm sounds. However, the platform can be operated normally.
If the “OFF” rearming button does not work, use the emergency stop to rearm the platform.
3 - 12
1
2
1
1
1
1
2
647533 (09/10/2015)
MAN'GO 12
