Manitou MAN'GO 12 User Manual

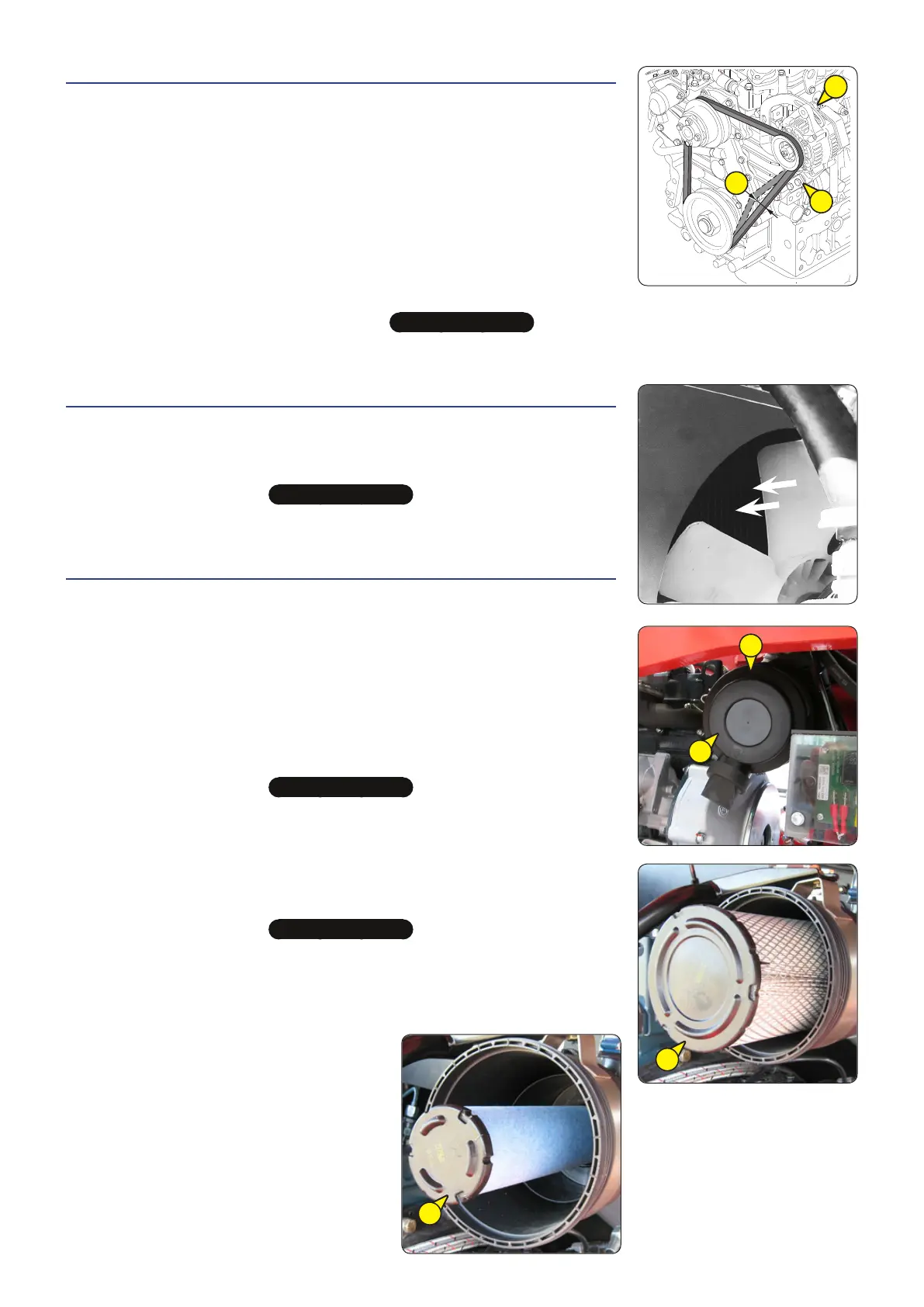

B4 – ALTERNATOR/CRANKSHAFT/FAN BELT TENSION
CONTROL / ADJUST
- Open the rear cover.
- Check the condition of the belt for any signs of wear or cracking and replace it, if
necessary (see: 3 - MAINTENANCE: FILTER ELEMENTS AND BELTS).
- Check the tension between the crankcase and alternator pulleys.
- Under thumb pressure (98 N), the tension A must be 7 to 9 mm
- Adjust, if necessary.
- Loosen the bolts 1 two or three turns.
- Swivel the alternator assembly to obtain the requisite belt tension.
- Retighten the bolts 1.
t
IMPORTANT
t
When changing an alternator belt, recheck the tension after the first 20 hours of operation.
B5 – RADIATOR CORE
CLEAN
- Open the rear cover.
- To avoid clogging the radiator core, clean it with a jet of compressed air directed
from the front towards the back. This is the only way to expel any dirt effectively.
t
IMPORTANT
t
Clean the radiator core daily when the lifting platform is being used in a very dusty area.
B6 – DRY AIR FILTER CARTRIDGE
CLEAN
If the machine is being used in a very dusty atmosphere, reduce these maintenance
intervals and see the FILTER ELEMENTS AND BELTS section.
- Open the chassis right cover.
- Locate the air filter 1.
- Unclip the cover 2.
- Release the filter cartridge 3 by pulling it.
- Leave the safety filter 4 in place.
- Use a jet of compressed air to clean the filter cartridge, blowing only from the
inside towards the outside.
t
IMPORTANT
t
Observe the safety distance of 30 mm between the jet of air and the cartridge to avoid tearing or piercing the
cartridge. You must not blow out the cartridge near the air filter casing. Never clean the cartridge by tapping it against
a hard surface. Protect your eyes during this operation.
- Clean the inside of the filter with a clean, damp, lint-free cloth.
- Check the condition of the filter cartridge and replace it, if necessary.
- Refit the cartridge and the cover.
t
IMPORTANT
t
Never wash a dry air filter cartridge. You must not clean the safety cartridge located inside the filter cartridge under
any circumstances; replace it with a new one if it is clogged or damaged.
3 - 15
1
A
1
3
1
2
4
647533 (09/10/2015) MAN'GO 12
