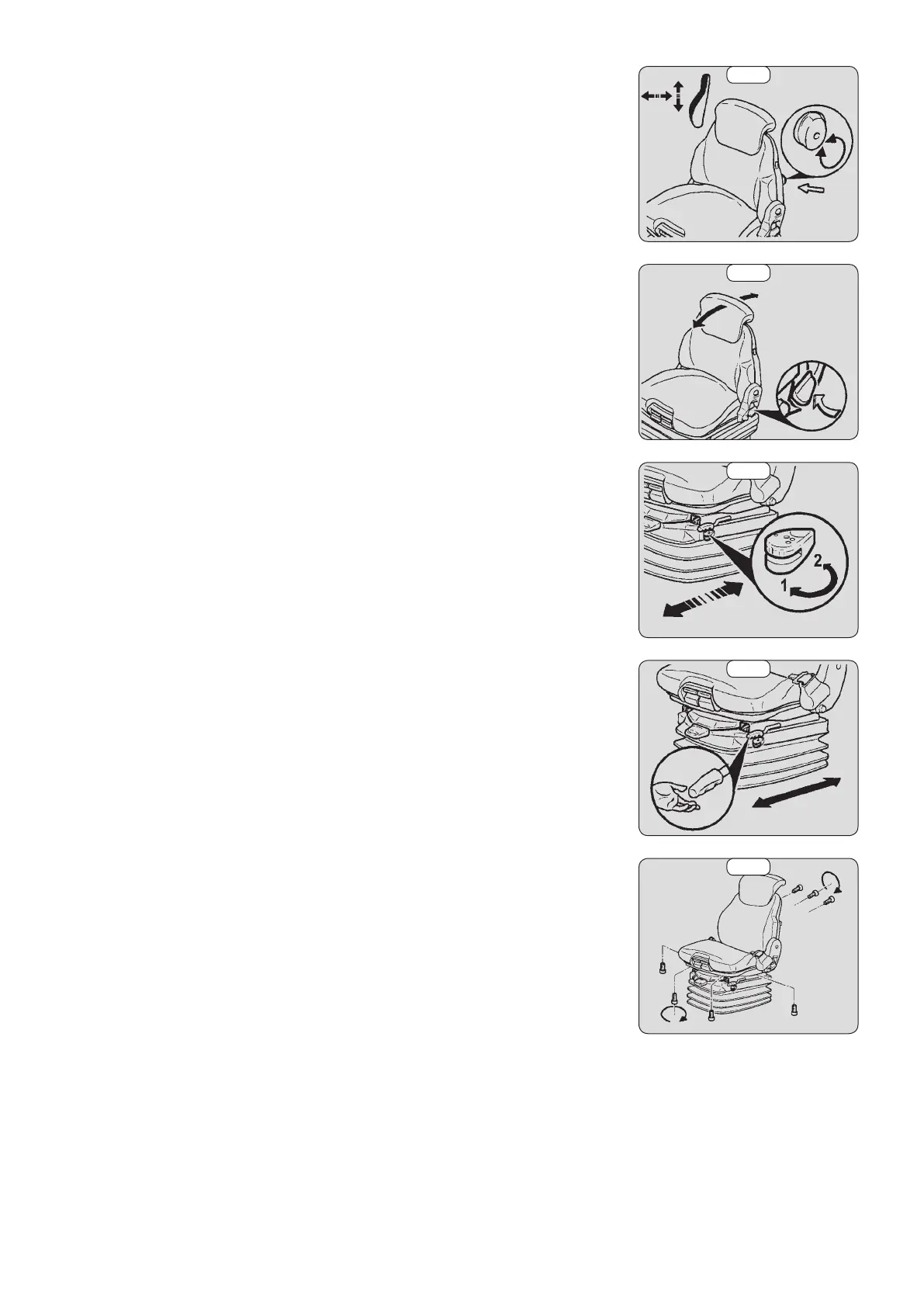

HORIZONTAL SHOCK ABSORBER (FIG. H)
In certain conditions (e.g. rough terrain, etc.) the driver's seat can absorb shocks.
- Turn the button to position (1) to activate the shock absorber.
- Turn the button to position (2) to deactivate the shock absorber.
LONGITUDINAL ADJUSTMENT (FIG. I)
- Pull the lever, then move the seat forwards or backwards into the desired position.
- Release the lever to lock it.
LUMBAR ADJUSTMENT (FIG. F)
- Turn the handle either left or right to adjust the height and depth to the desired
position.
ADJUSTMENT OF THE ANGLE OF THE BACKREST (FIG. G)
- Support the backrest, pull the lever and tilt the backrest to find the desired position.
SERVICING (FIG. J)
- Keep your seat clean to ensure it operates efficiently
- Clean the cushions using a suitable product.
- Apply to a small hidden area first, to check the colour-fastness of covering.
- Avoid wetting the cushions.
- To facilitate cleaning remove the cushions from the seat frame.
