22 ENGINE REMOVAL

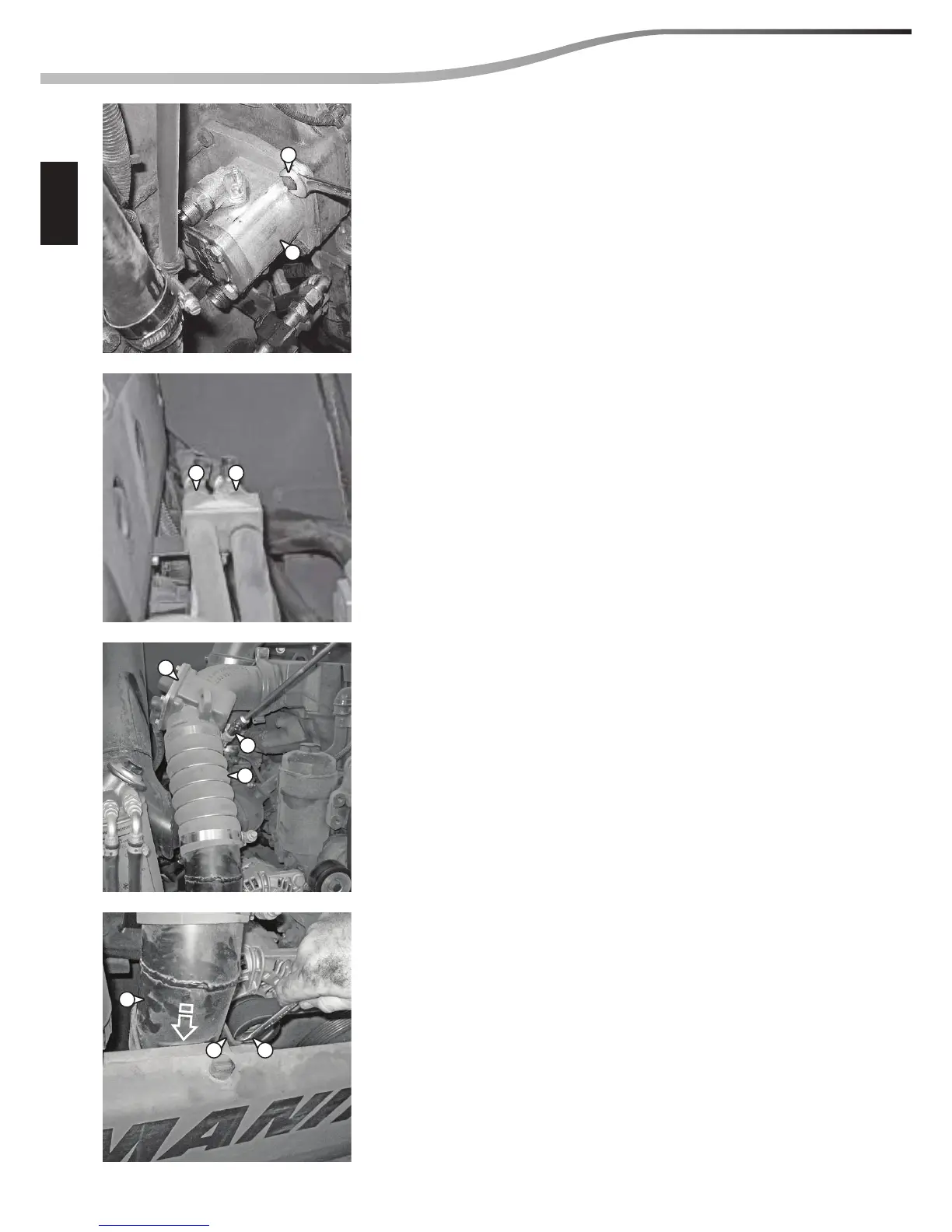

Slacken the screws (Ref. 9) and remove the hydraulic pump
(Ref. 10).
Disconnect the tubes (Ref. 11) for the air conditioner.
Slacken the clamp (Ref. 12) and remove the hose (Ref. 13) from
the suction duct (Ref. 14).
Slacken the screws (Ref. 15) and remove the bracket (Ref. 16)
which supports the radiator pipe (Ref. 17).
Shift the pipe downwards to make it easier to remove the engine.
9
10
1111
14
13
12
17
1516
