(05/06/2012) 10-06-M184EN
10
23ENGINE REMOVAL

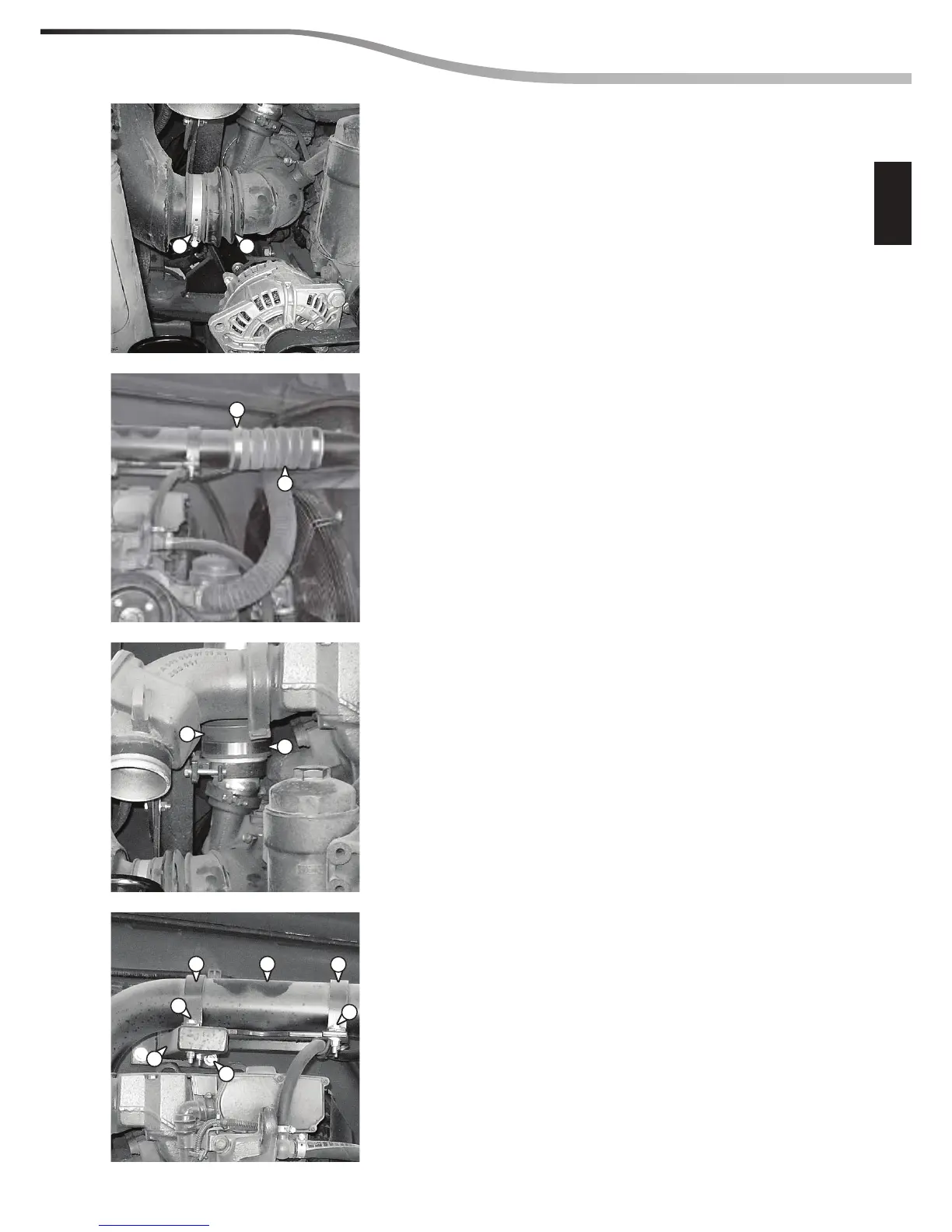

Slacken the clamp (Ref. 18) and remove the hose (Ref. 19) for
the exhaust gases.
Slacken the clamp (Ref. 20) and remove the hose (Ref. 21)
entering the radiator.
Slacken the clamp (Ref. 22) and remove the hose (Ref. 23) from
the turbocompressor.
Slacken the screws (Ref. 24) and remove the brackets (Ref. 25).
Remove the cooling system pipe (Ref. 26).
Slacken the screws (Ref. 27) and remove the support (Ref. 28)
from the vehicle.
18 19
20
21
22
23
25
25
24
24
26
27
28
