(05/06/2012)10-06-M184EN
10
24 ENGINE REMOVAL

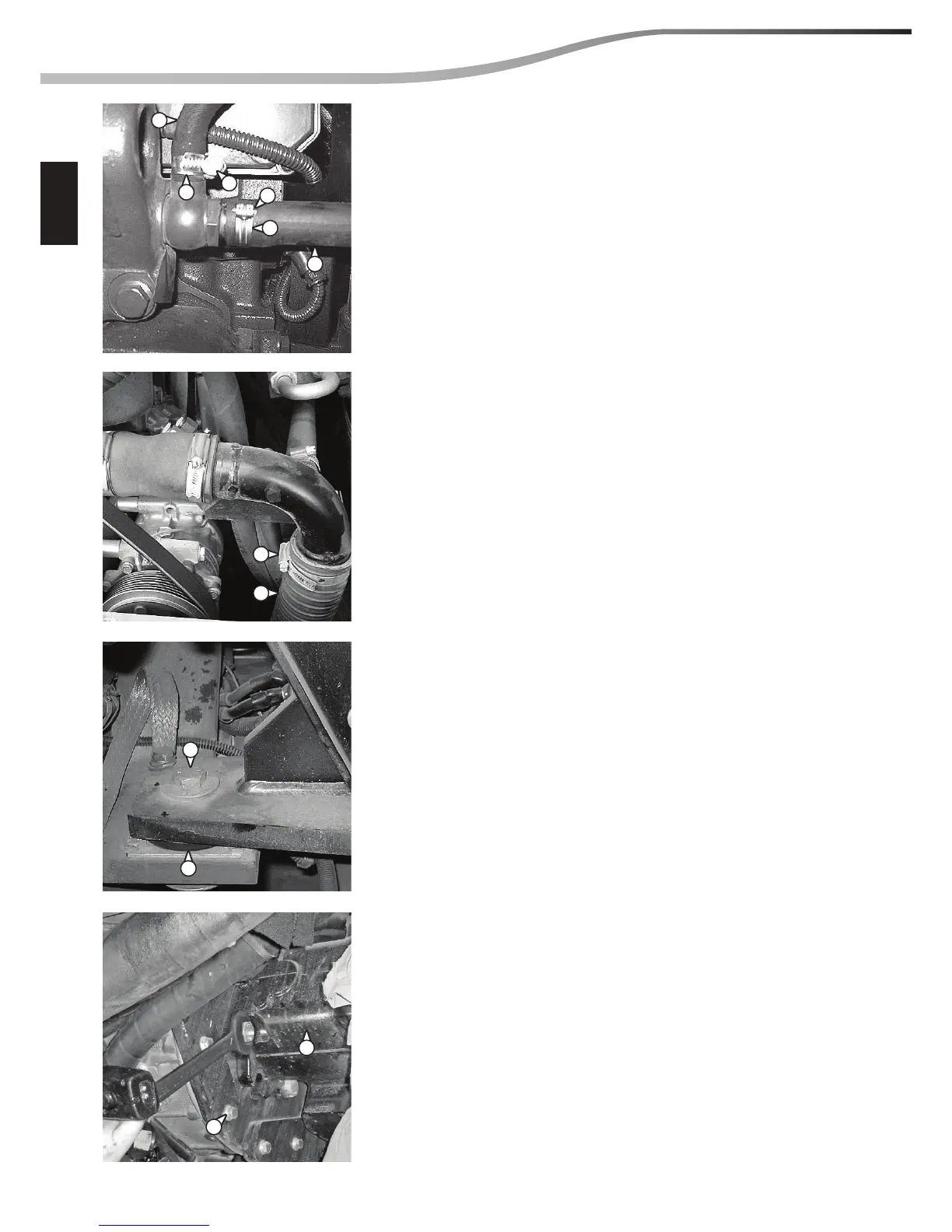

Slacken the screws (Ref. 29) and slacken the clamps (Ref. 30).
Disconnect the upper (Ref. 31) and lower (REf. 32) heating pipes.
Slacken the clamp (Ref. 33) and remove the hose (Ref. 34) from
the water pump.
Secure the engine to the overhead crane and slacken the screws
(Ref. 35) which x the engine to the chassis.
Remove the four silent blocks (Ref. 36).
Place a hydraulic jack under the hydraulic pump (Ref. 37).
Slacken the screws (Ref. 38) which block the engine.
32
31
30
30
29
29
33
34
35
36
38
37
