(25/11/2011) 10-07-M184EN
10

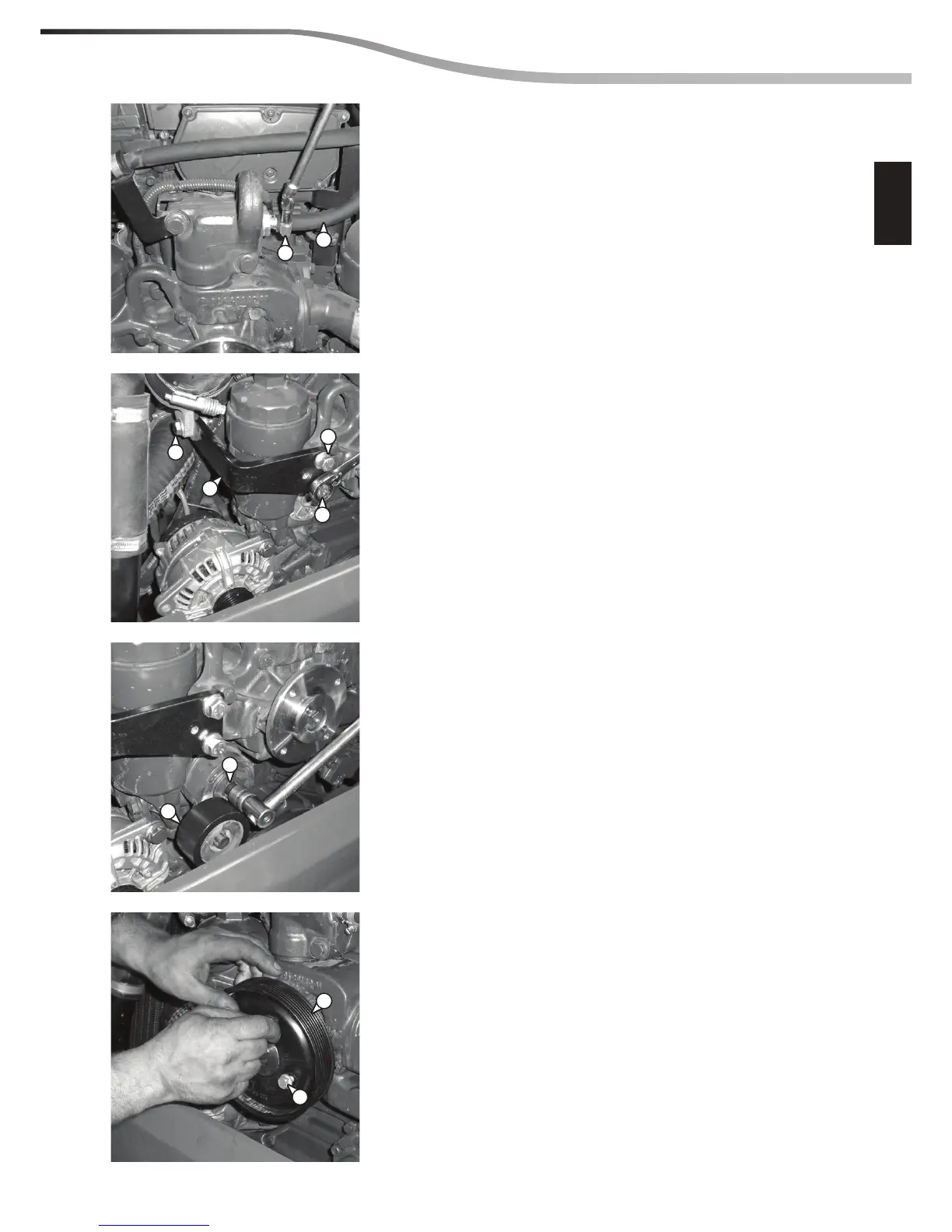

17ENGINE REFIT
Re t the exhaust pipe (Ref. 7) on the thermostatic valve and
tighten the clamp (Ref. 8).
Re t the bracket (Ref. 9) on the air unit by means of the screws
(Ref. 10 and 11).
Re t the belt tightener (Ref. 12) by means of screws (Ref. 13)
on which Loctite threadlock must be applied, using a 50 Nm
tightening torque.
Re t the pulley (Ref. 14) by means of the screws (Ref. 15) on
which Loctite threadlock must be applied.
8
7
11
9
10
10
13
12
14
15
