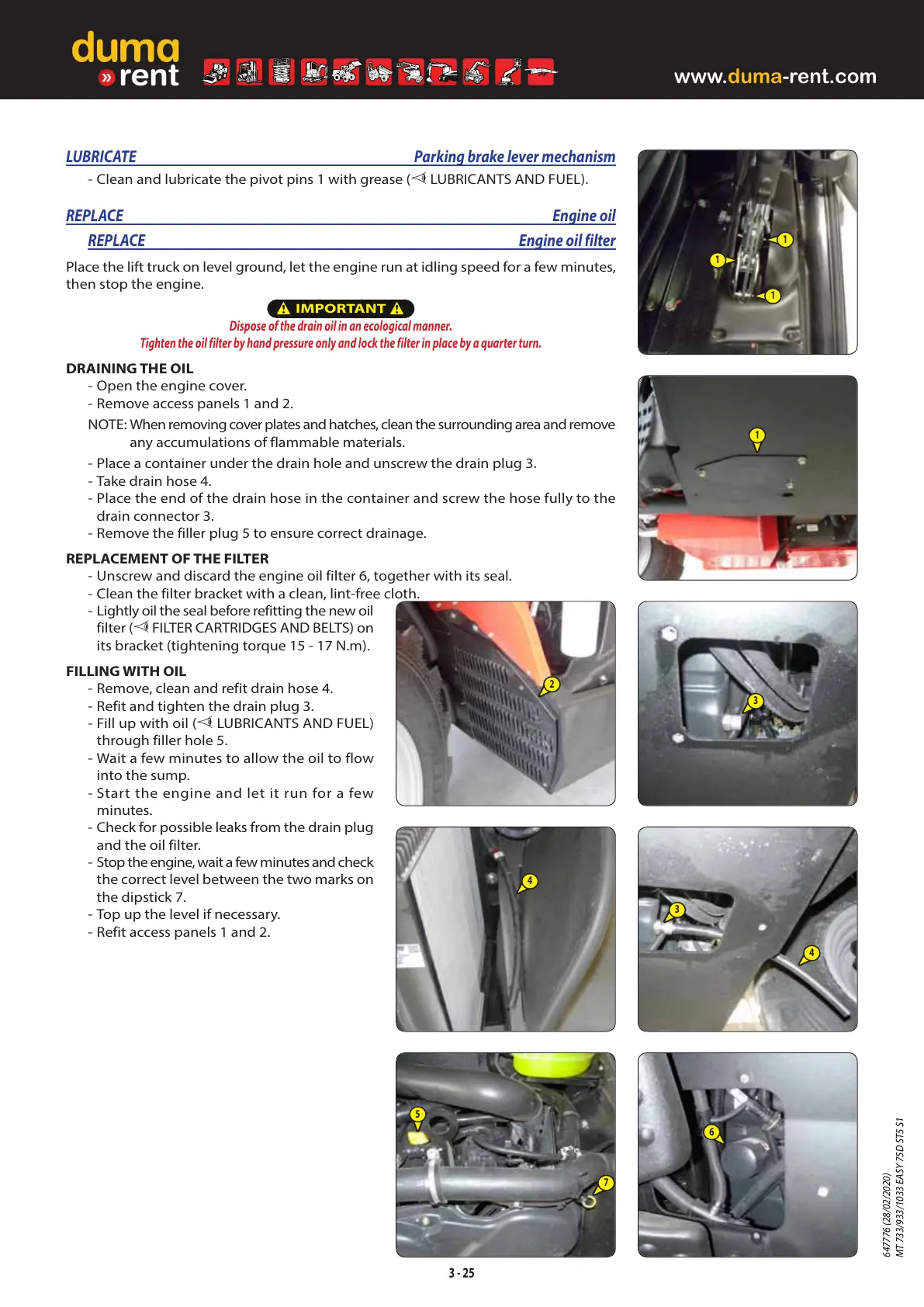

Manitou MT 733 EASY 75D ST5 S1 User Manual

LUBRICATE Parking brake lever mechanism
- Clean and lubricate the pivot pins 1 with grease (eLUBRICANTS AND FUEL).
REPLACE Engine oil
REPLACE Engine oil filter
Place the lift truck on level ground, let the engine run at idling speed for a few minutes,
then stop the engine.
t
IMPORTANT
t
Dispose of the drain oil in an ecological manner.
Tighten the oil filter by hand pressure only and lock the filter in place by a quarter turn.
DRAINING THE OIL
- Open the engine cover.
- Remove access panels1 and2.
NOTE: When removing cover plates and hatches, clean the surrounding area and remove
any accumulations of flammable materials.
- Place a container under the drain hole and unscrew the drain plug3.
- Take drain hose4.
- Place the end of the drain hose in the container and screw the hose fully to the
drain connector3.
- Remove the filler plug5 to ensure correct drainage.
REPLACEMENT OF THE FILTER
- Unscrew and discard the engine oil filter6, together with its seal.
- Clean the filter bracket with a clean, lint-free cloth.
- Lightly oil the seal before refitting the new oil
filter (
eFILTER CARTRIDGES AND BELTS) on
its bracket (tightening torque15-17 N.m).
FILLING WITH OIL
- Remove, clean and refit drain hose4.
- Refit and tighten the drain plug3.
- Fill up with oil (
eLUBRICANTS AND FUEL)
through filler hole5.
- Wait a few minutes to allow the oil to flow
into the sump.
- Start the engine and let it run for a few
minutes.
- Check for possible leaks from the drain plug
and the oil filter.
- Stop the engine, wait a few minutes and check
the correct level between the two marks on
the dipstick7.
- Top up the level if necessary.
- Refit access panels1 and2.
3 - 25
3
3
4
5
7
4
1
2
6
1
1
1
647776 (28/02/2020) MT 733/933/1033 EASY 75D ST5 S1
