1 F1 - UB + T/T CCM10 Module Battery Power
2 F2 - UB + T/T CCM10 Module Battery Power
3 F3 - UB + Cab IOL32/SCM0 Module/Operator
4
F4 - UB + Cab IOL32/SCM0 Module/Operator
Display Battery Power
5 F5 - Keyswitch Power
6 F6 - Steering Column Power
7 F7 - Dome Lights
8 F8 - Work Lights
9 F9 - 12V Outlet
10 F10 - Diagnostic Tool Power
11 F11 - UB + T/T IOL30 Module Battery Power
12 F12 - UB + T/T IOL30 Module Battery Power
13
F13 - UE + Cab SCM0/IOL32 Module Battery
Power
14
F14 - UE + T/T CCM10/IOL30 Module Battery
Power
15
F15 - Jog Dial/Status Light Bar/Operator
Displayed Fused Relay Power
16 F16 - Accessory Lights Power
17 F17 - Heater/AC Panel Power
18 F18 - Circulating Fan
19 F19 - Spare
20 F20 - Skylight Wiper
21 F21 - Cranestar Battery Power
22 F22 - Switch Power
23
K104 - Jog Dial/Status Light Bar/Operator
Display Relay
24 K103 - Skylight Wiper Relay
2
1
9
10
7
5
3
4
8
6
11
12
14
13
15
16
18
17
19
20
22
21
23
24

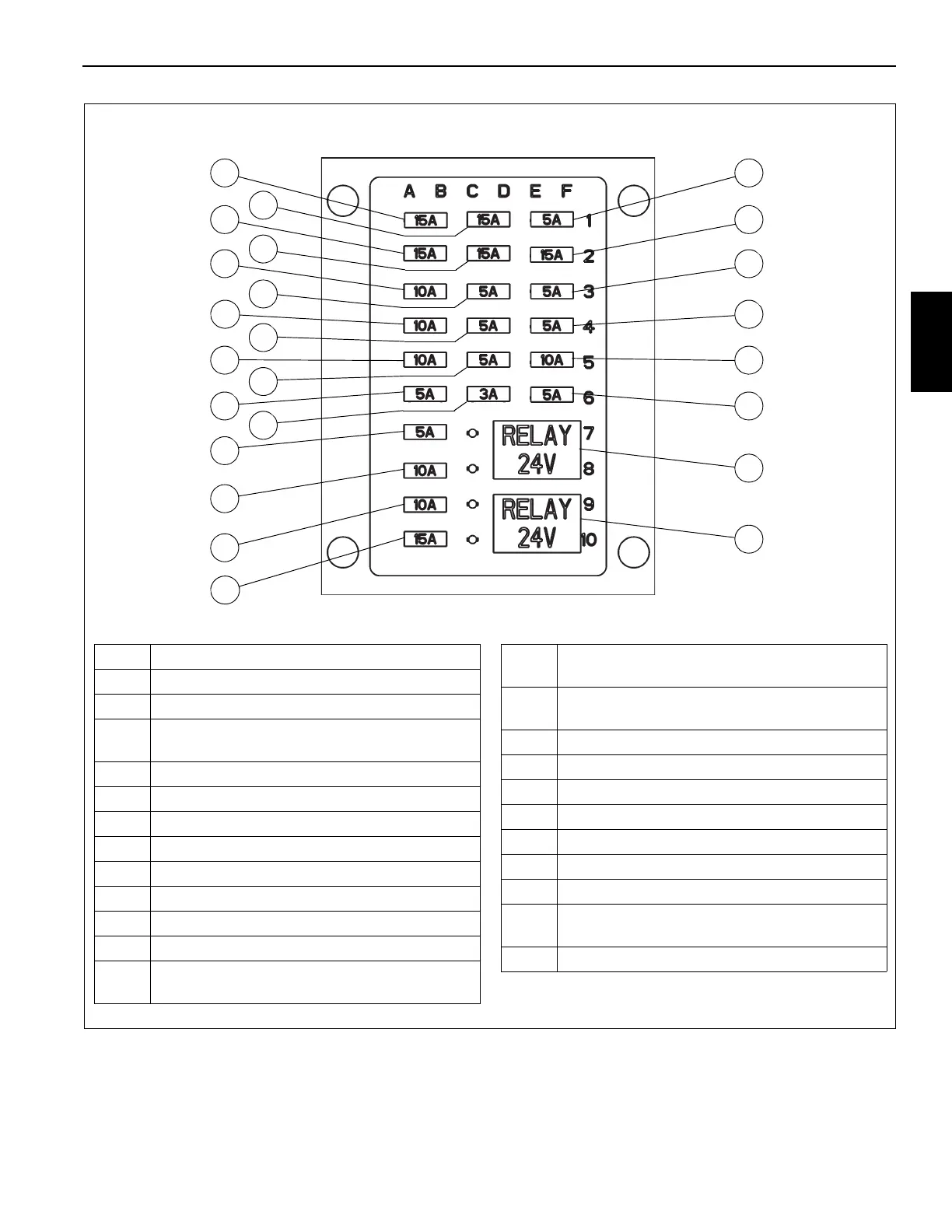

FIGURE 3-4
Cab Fuse and Relay Box 1
