LUBRICATION GRT8100 SERVICE MANUAL
9-14
Published 3/26/2018, Control # 596-05
Steering and Suspension
Item
Lube Point
Description
Figure
No.
Approved
Lubricant
Lube
Capacity
Lube Interval Application
20
Steer Cylinder
Pivot Pins
Figure 9-4 A
Until grease
extrudes
500 hours or 3 months 8 grease fittings
21
Upper and Lower
King Pins
Figure 9-4 A
Until grease
extrudes
500 hours or 3 months 8 grease fittings
22
Tie Rod Pivot
Pins
Figure 9-4 A
Until grease
extrudes
500 hours or 3 months 4 grease fittings
23
Lockout Cylinder
Pivot Pins
Figure 9-4 A
Until grease
extrudes
500 hours or 3 months 4 grease fittings

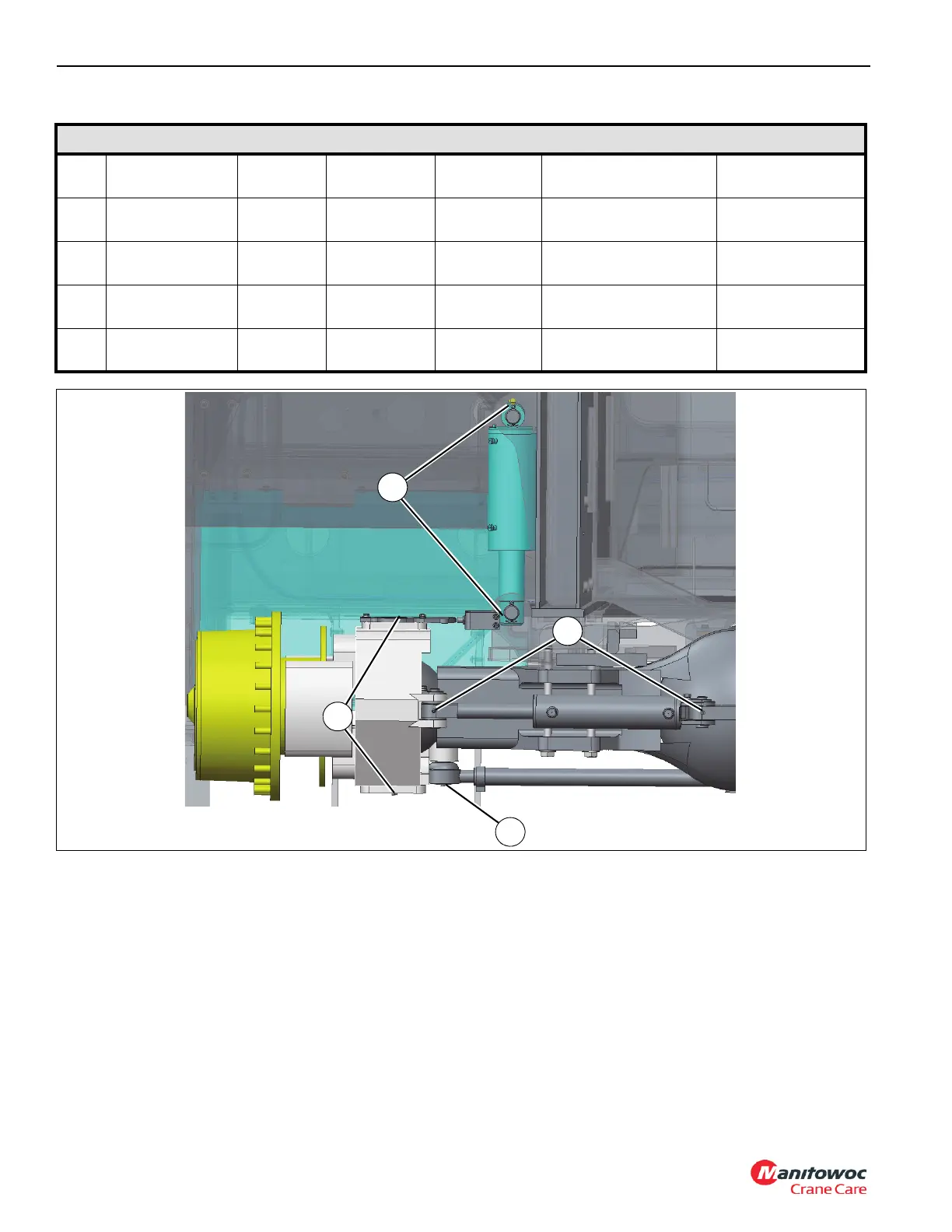

FIGURE 9-4
8594
23
22
21
20
