Manitowoc Grove GRT8100

ELECTRICAL SYSTEM GRT8100 SERVICE MANUAL
3-8
Published 3/26/2018, Control # 596-05

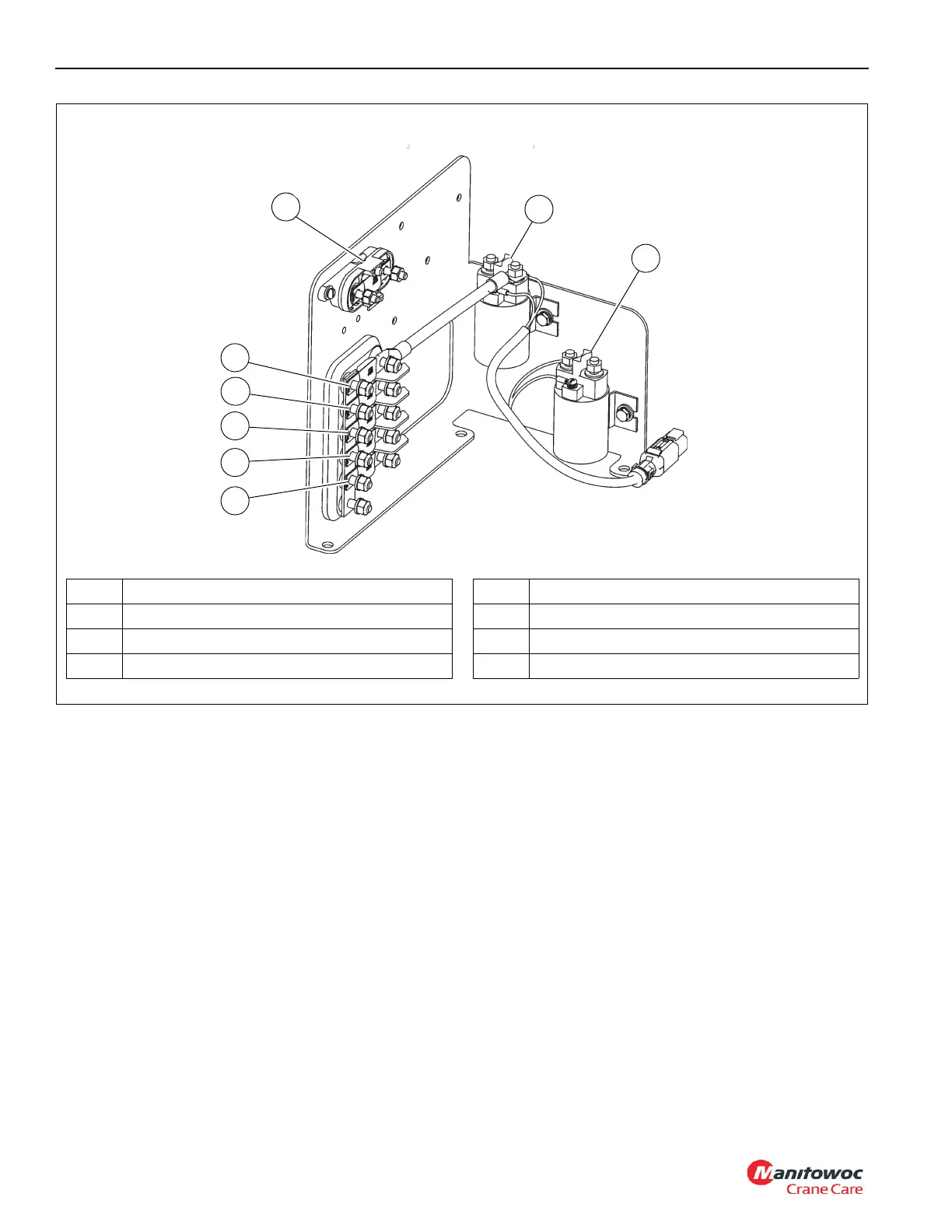

FIGURE 3-7
7
8
1
2
3
4
5
6
1 F52 - 100A Power
2 F53 - 100A Power
3 F54 - 100A Power
4 F56 - 100A Power
5 F55 - Intake Air Heater Relay Power
6 F51 - 125A Alternator Power
7 Grid Heater Relay
8Starter Relay
Carrier Fuse Panel
