Manitowoc Grove GRT8100

POWER TRAIN GRT8100 SERVICE MANUAL
7-10
Published 3/26/2018, Control # 596-05

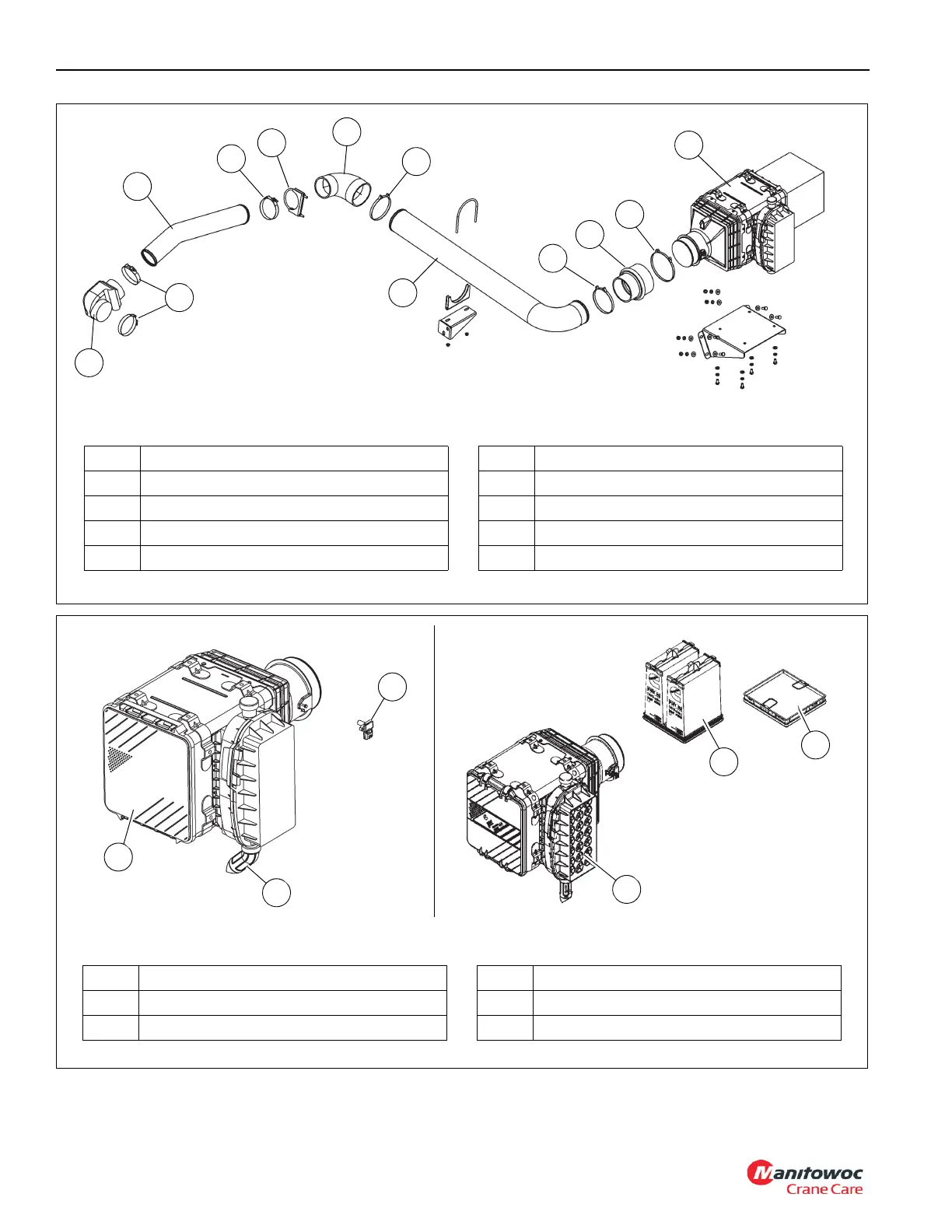

FIGURE 7-7
1 Elbow
2 T-bolt Clamp
3 Tube
4 Muffler Clamp
5 Elbow
6 Clamp
7 Tube
8 Reducer
9 Clamp
10 Air Cleaner Assembly
3
1
4
2
2
6
5
6
7
10
8
9
Air Intake Assembly - Tier 4
8804-118
FIGURE 7-8
Air Filter Assembly - Tier 4
1 Service Door
2 Vacuator Valve
3 TAP Sensor
4 Pre-cleaner
5 Primary Air Filter
6 Secondary Air Filter
2
1
3
5
6
4
