Manitowoc Grove RT540E Service Maintenance Manual

Published 4-20-2015, Control # 502-01 1-3
RT540E SERVICE MANUAL INTRODUCTION
1
GROVE
Hoists
Drum Dimensions
Diameter . . . . . . . . . . . . . . . 270 mm (10.63 in)
Length (Standard) . . . . . . . . 415 mm (16.34 in)
Cable
Diameter . . . . . . . . . . . . . . . . . 16 mm (5/8 in)
Length-Main . . . . . . . . . . . . . . . 137 m (450 ft)
Length-Aux. . . . . . . . . . . . . . . . .137 m (450 ft)
Max. Permissible Line Pull (6x36)
. . . . . . . . . . . . . . . . . . . . . . . . . .51.7 kN (11,640 lb)
Max. Single Line Speed . . . .156.7 m/min (514 fpm)
Hoist Motor Displacement
Low . . . . . . . .107 cm
3
(6.53 in
3
) per revolution
High . . . . . . . .61 cm
3
(3,72 in
3
) per revolution
Table 1-1
Axle Weight Distribution Table

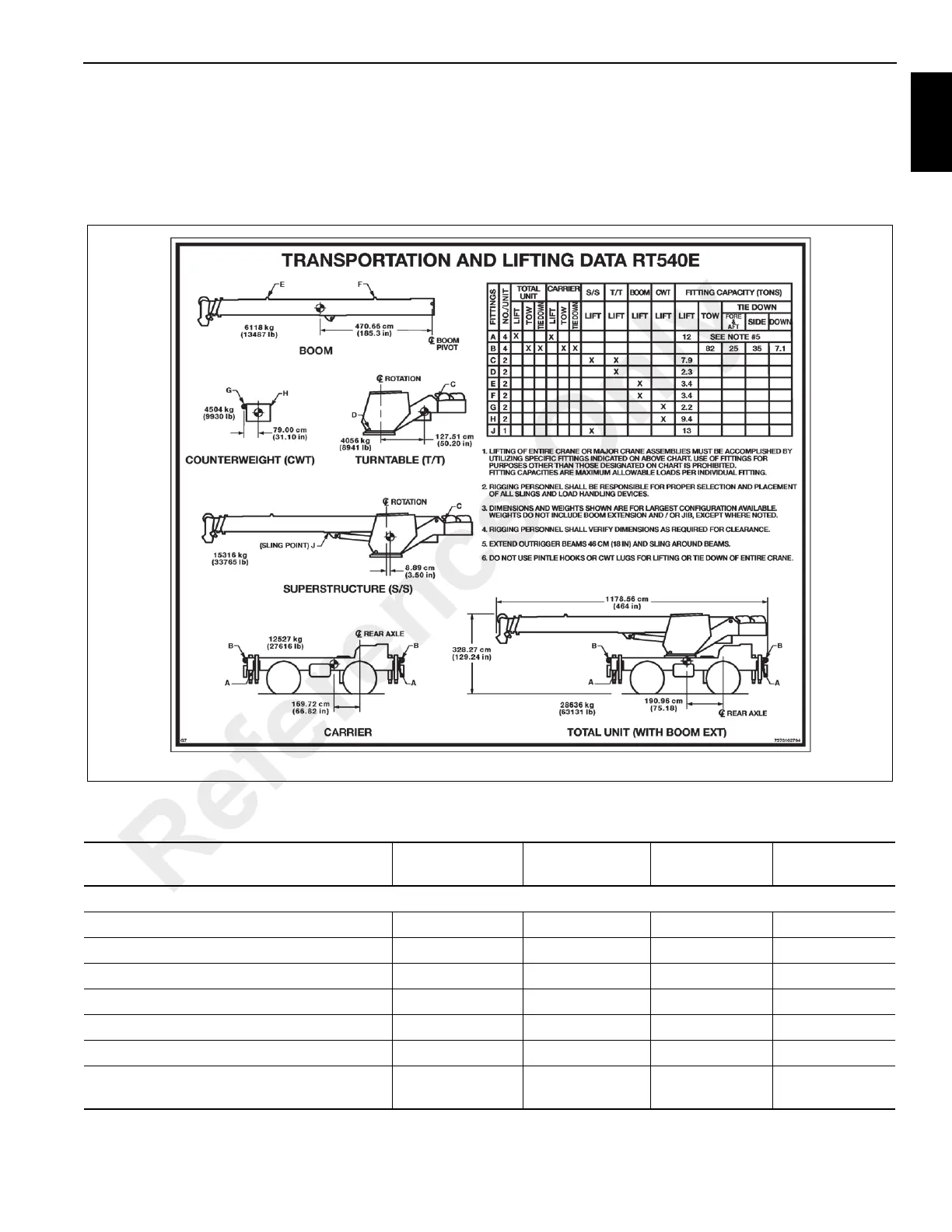

FIGURE 1- 1
Description
CG From Rear
Axle cm (in)
Weight
kg (lb)
Front Axle
kg (lb)
Rear Axle
kg (lb)
Basic Unit
Maximum Axle Loads Allowed 16783 (37000) 16783 (37000)
Maximum Axle Loads Allowed while Towing 14969 (33000) 14969 (33000)
Maximum Tire Loads Allowed 15604 (34400) 15604 (34400)
Standard Carrier Assy. 4 x 4; Plus all Fluids 158.83 (62.53) 12451 (27449) 5406 (11919) 7044 (15530)
Superstructure w/Cab Plus w/Main Hoist 68.66 (27.03) 3862 (8514) 725 (1598) 3137 (6916)
Pinned on Counterweight -119.38 (-47.00) 4305 (9490) -1405 (-3097) 5709 (12587)
Boom Assembly; w/(2/4) Sheaves, RCL,
Pivot Pins
464.82 (183.00) 5954 (13126) 7566 (16681) -1613 (-3555)
Reference Only
