RT540E SERVICE MANUAL BOOM
4
GROVE
.

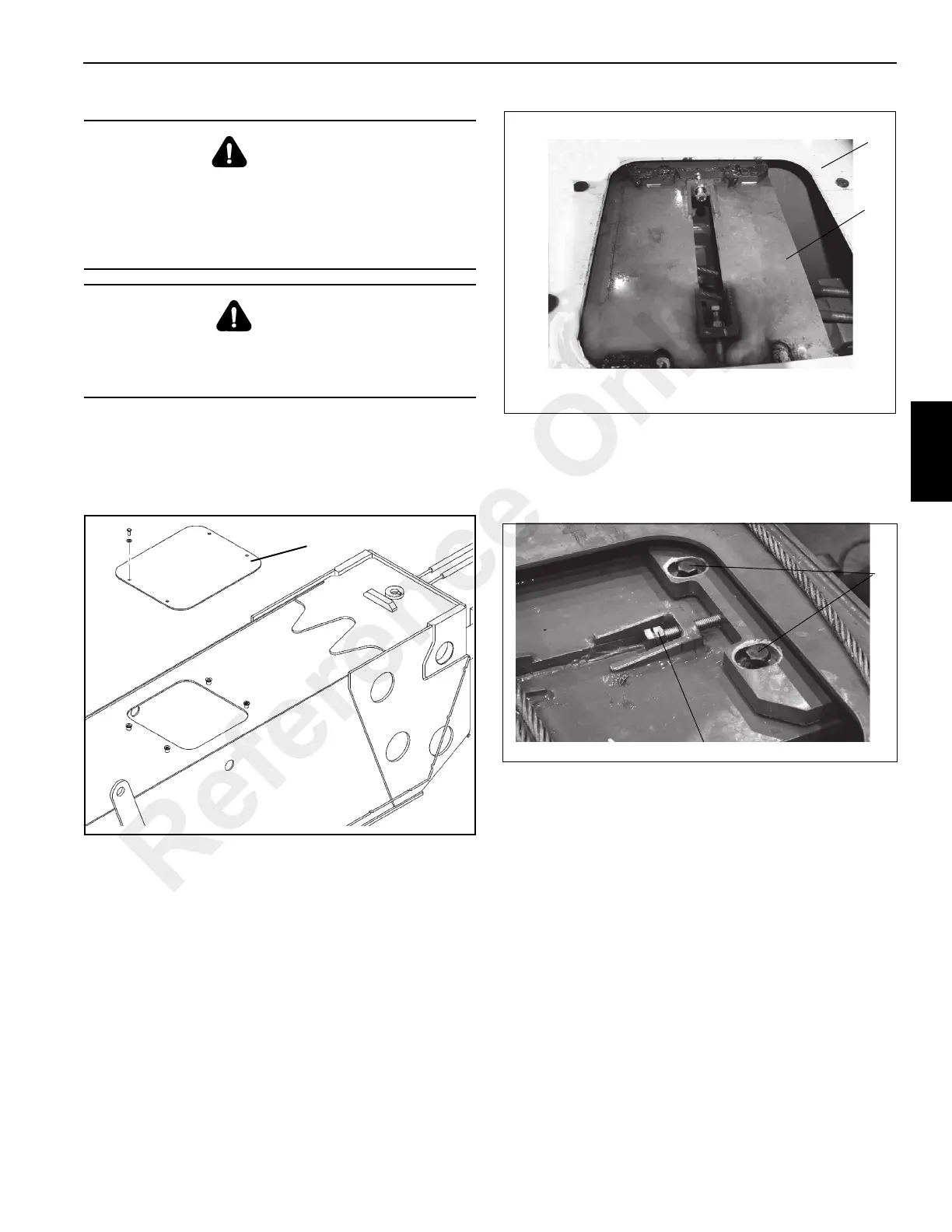

1. Remove the access cover (Figure 4-11, 1) on the top
rear of the base section. Slide the assembly out of the
base section (Figure 4-12, 1) enough to gain access to
the top rear adjustable wear pads on the inner mid
(Figure 4-12, 2).
2. Remove the bolt (Figure 4-13, 1), washer, and offset
washer securing each top rear adjustable wear pad and
remove the wear pads, keeper plates and bolts
(Figure 4-13, 2) from the top of the inner mid. Note
location of wear pads and shims for installation.
3. On the top front of the base section, remove the two
bolts securing the kick back plate and remove the plates.
4. Remove the bolts securing the outer mid retract cable
anchor plates to the lower front of the base section.
Remove the cable locknuts and the anchor plates from
the cables.
5. Remove the two screws securing each top (Figure 4-14,
1) and bottom (Figure 4-14, 2) side wear pads at the
front of the base section. Remove wear pads, shims,
and mounting angle (top left side only).
DANGER
The combined weight of the boom inner mid, outer mid,
and fly sections, including the telescope cylinder, is
approximately 3680 kg (8110 lb). Ensure that adequate
and properly tested lifting devices are used to remove
these sections
DANGER
To prevent serious injury or death, always wear personal
protective equipment; i.e., a hard hat, eye protection,
gloves and metatarsal boots.
1
FIGURE 4-11
FIGURE 4-12
1
2
FIGURE 4-13
1
2
