Manitowoc Grove RT540E Service Maintenance Manual

Published 4-20-2015, Control # 502-01 4-23
RT540E SERVICE MANUAL BOOM
4
GROVE

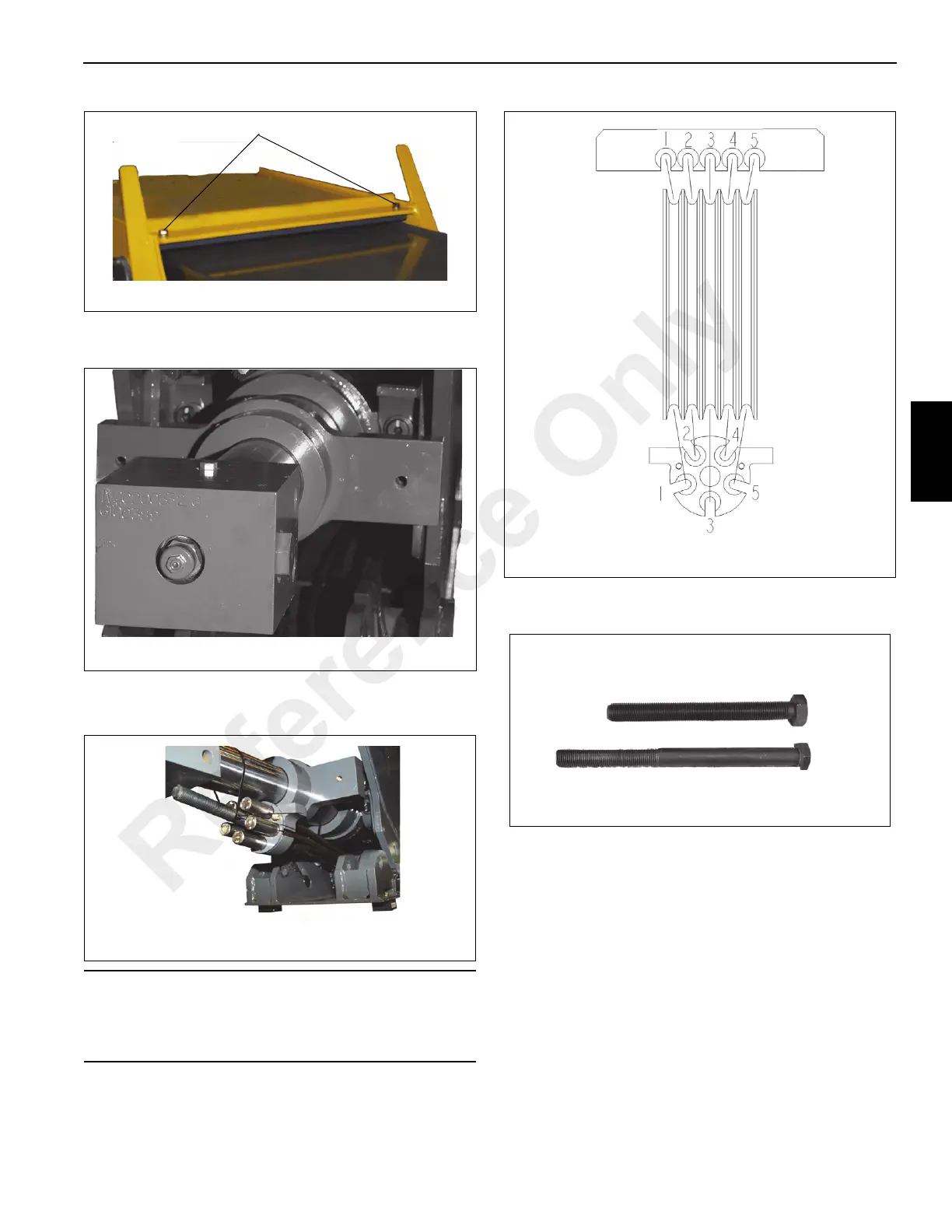

19. Rotate cylinder mounting to facilitate mounting in to the
Inner Mid section. (Figure 4-55)
20. Install Extend Cables in to the round keeper plate
(Figure 4-56 and Figure 4-57).
21. Install adjusting (Figure 4-58) bolt to the anchor
assembly.
.
22. Temporary secure anchor assembly to the Extend
Cylinder Rod.
23. Attach the mid retract cables to the anchor point at the
base end of the Outer Mid.
a. Lubricate and install pin through cable ends. Secure
pin (Figure 4-59, 1) with cotter keys.
24. Lay out the threaded end of the mid retract cables
through the Inner Mid section toward the base end.
CAUTION
Install Extend Cables in proper sequence. Do not allow
the cables to become entangled or overlap. Cable or
boom failure could result.
FIGURE 4-54
1
FIGURE 4-55
6748-31
FIGURE 4-56
6748-29
FIGURE 4-57
FIGURE 4-58
Permanent Anchor Bolt
Assembly Bolt
Reference Only
