UNDERCARRIAGE RT540E SERVICE MANUAL
8-4 Published 4-20-2015, Control # 502-01

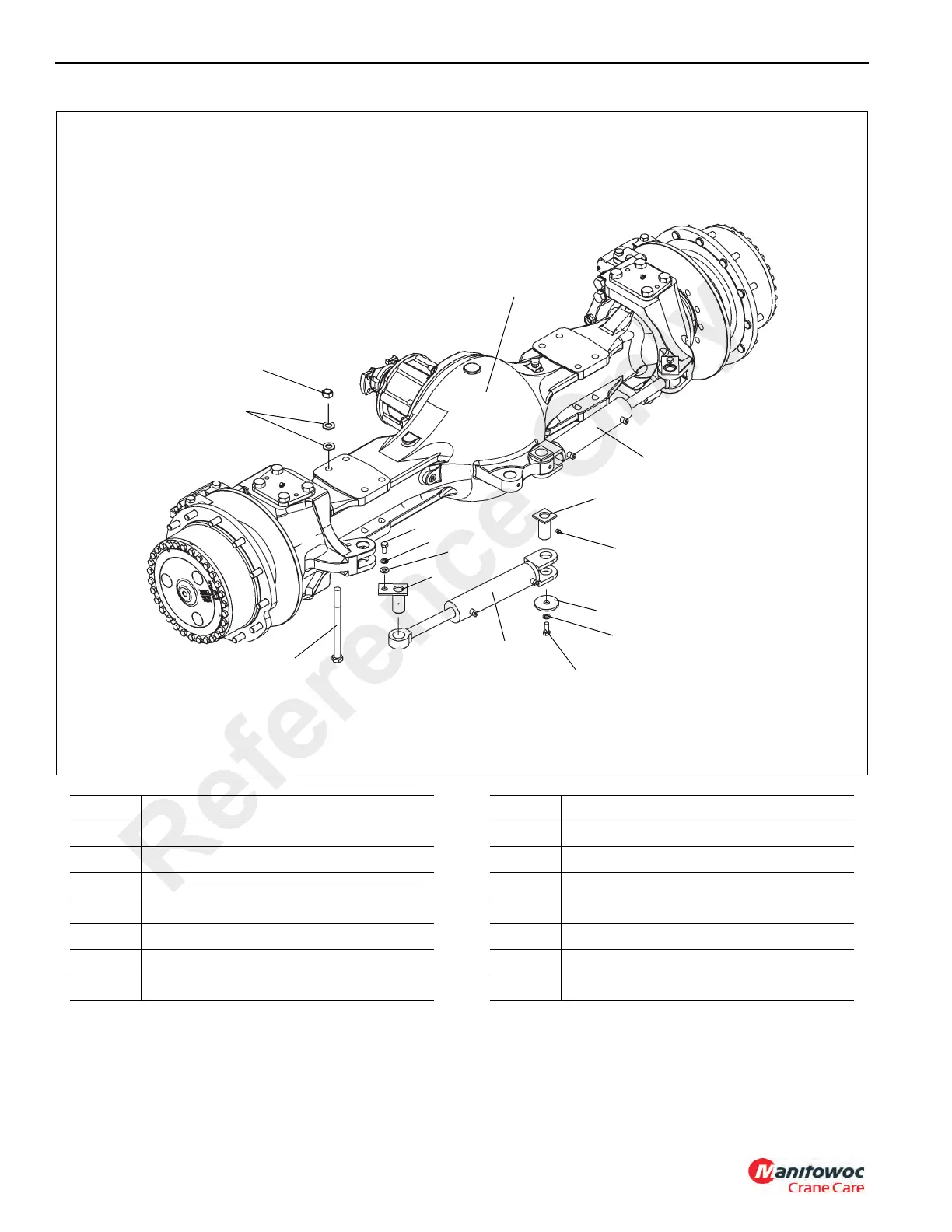

FIGURE 8-2
10
11
5
6
7
9
13
12
14
8
4
1
3
2
9
Item Description
1 Front Axle
2 Capscrew
3Hex Nut
4 Washer
5Pin Weld
6 Capscrew
7 Lockwasher
Item Description
8 Flatwasher
9 Steer Cylinder
10 Pin Weld
11 Grease Fitting
12 Flatwasher
13 Lockwasher
14 Capscrew
Reference Only
