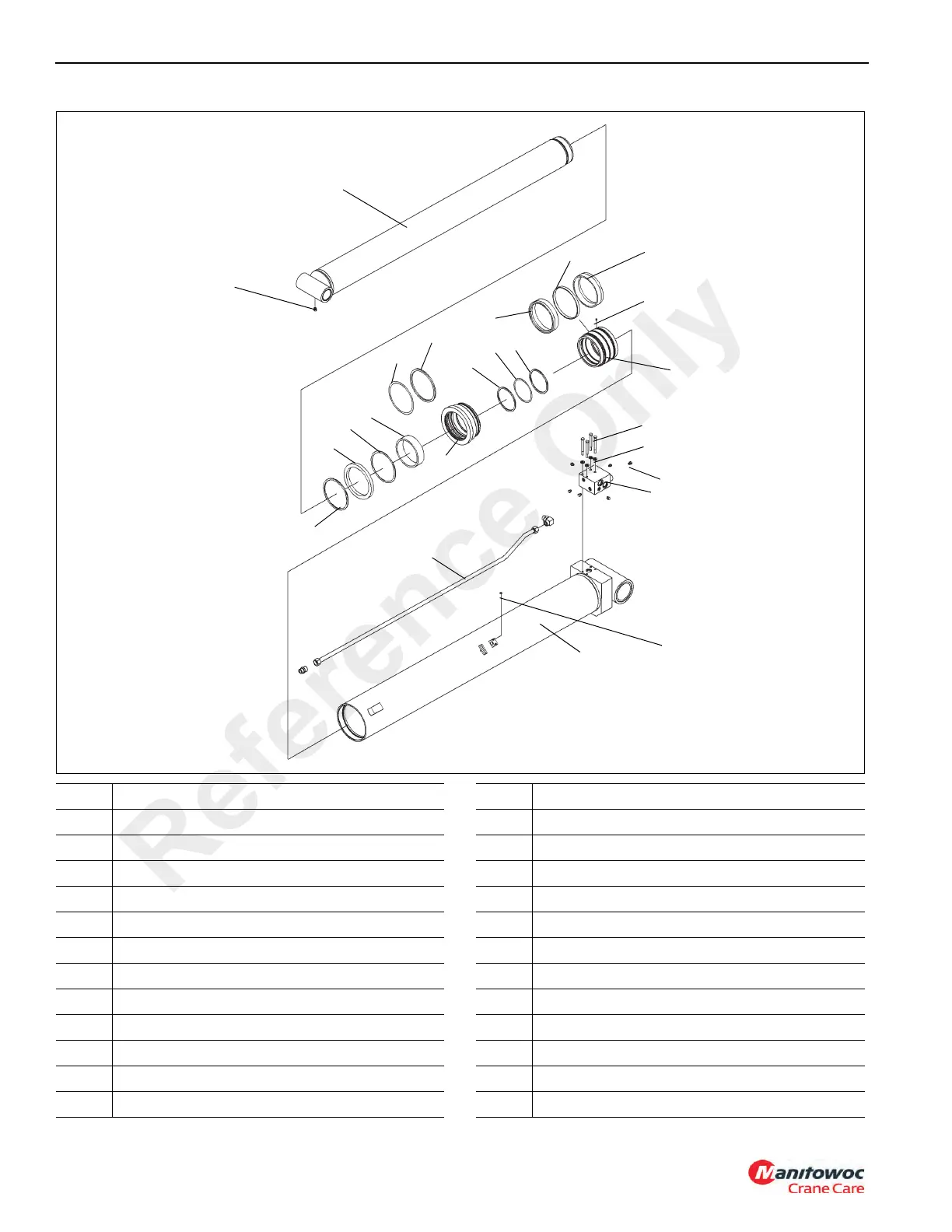

HYDRAULIC SYSTEM RT540E SERVICE MANUAL
2-58 Published 4-20-2015, Control # 502-01
17
2
15
14
16
13
6
7
3
8
9
20
18
4
12
10
19
5
21
22, 23, 24
1
11
5
8
Item Description
1 Grease Fitting
2Rod
3 Setscrew
4Piston
5 Seal Assembly
6 Guidelock Ring
7 Capscrew
8 Backup Ring
9O-ring
10 Head
11 Backup Ring
12 O-ring
13 Wear Ring
14 Buffer Seal
15 Rod Seal
16 Wiper Ring
17 Barrel
18 Washer
19 Plug
20 Holding Valve
21 Tube Assembly
22 Nut
23 Capscrew
24 Pipe Clamp
Item Description
Reference Only
