HYDRAULIC SYSTEM RT540E SERVICE MANUAL
2-62 Published 4-20-2015, Control # 502-01

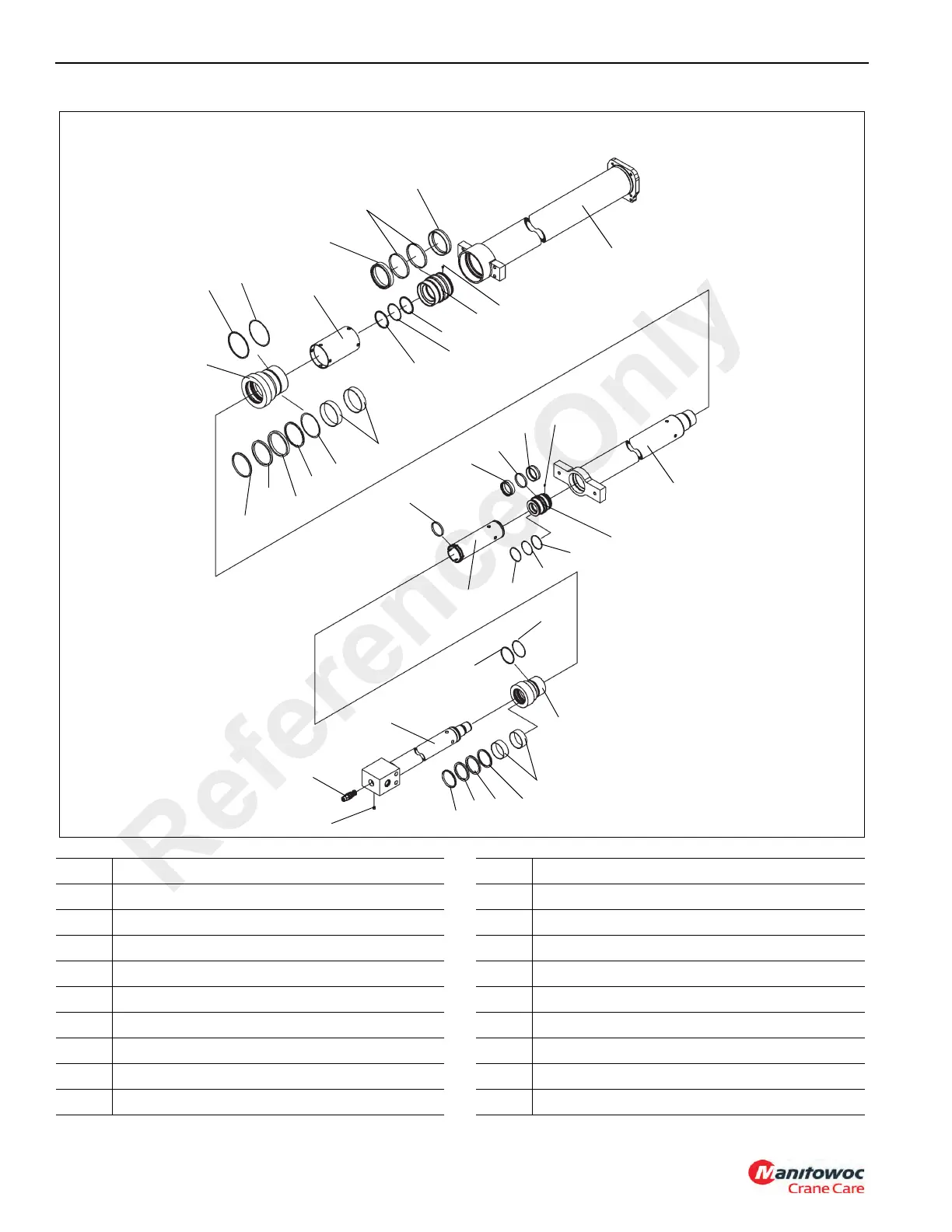

FIGURE 2-33
1
17
2
8
10
7
6
9
3
4
27
28
29
30
35
31
32
25
26
34
33
16
19
20
18
21
24
22
23
11
12
14
15
6714
11
9
8
5
7
5
3
13
Item Description
1 Barrel
2Piston
3 Seal
4 Wear Ring
5 Setscrew
6O-ring
7 Backup Ring
8 Hydrolock Seal
9 Wear Ring
Item Description
10 O-ring
11 Backup Ring
12 Spacer
13 Piston
14 Spacer
15 Rod
16 Rod
17 Head
18 Wear Ring
Reference Only
