RT880E SERVICE MANUAL HYDRAULIC SYSTEM
2

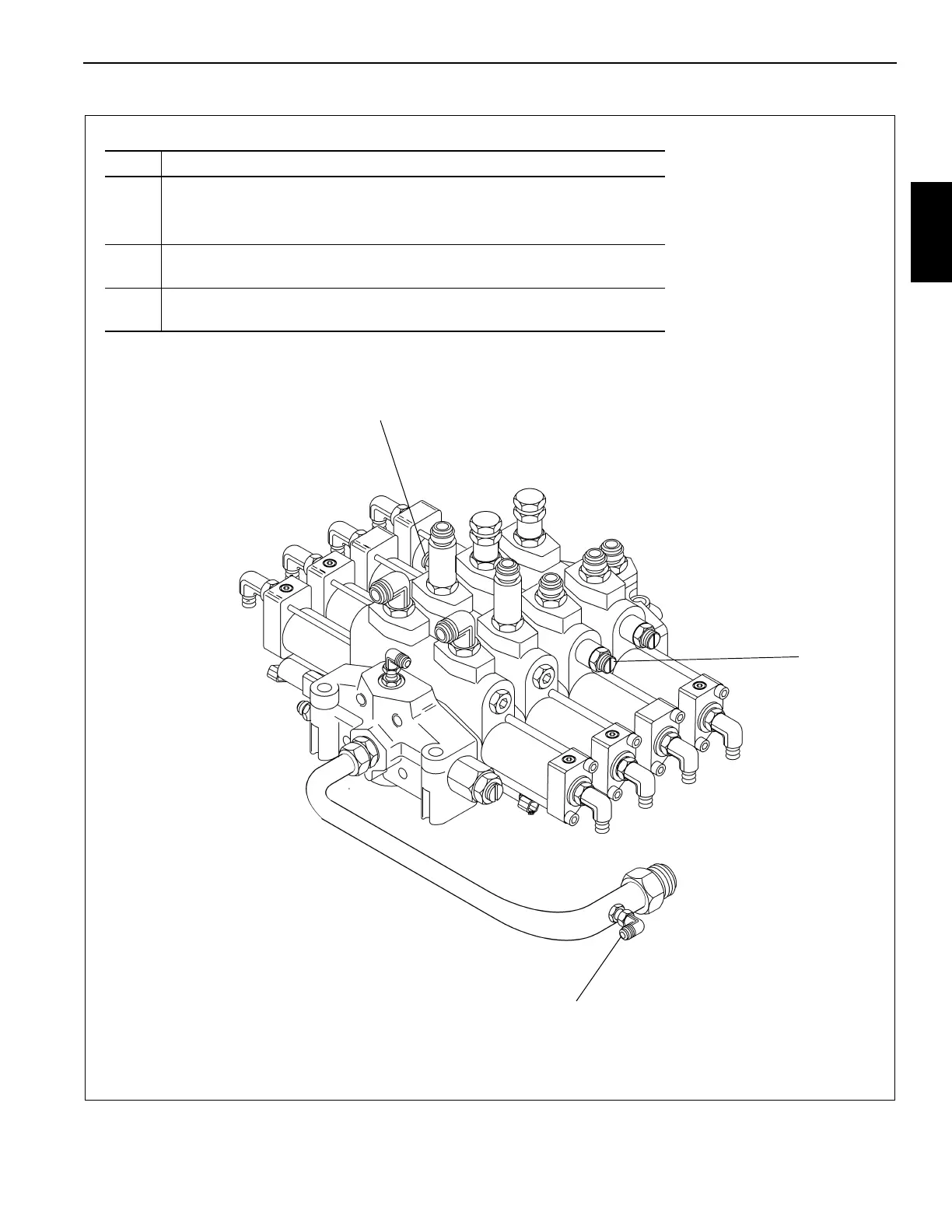

Boom lift/Telescope/Hoist Valve Bank
FIGURE 2-11
6480-4
Item Description
1 Procedure A - Main Control Valve Pressure for Hoists, Boom Lift, Telescope
- Check/Adjust - Step No. 1
Procedure I - Swing Brake Release Pressure - Check/Adjust - Step No. 3
2 Procedure A - Main Control Valve Pressure for Hoists, Boom Lift, Telescope
- Check/Adjust - Step No. 7
3 Procedure A - Main Control Valve Pressure for Hoists, Boom Lift, Telescope
- Check/Adjust - Step No. 11
3
1
2
