STRUCTURALS 5540F/YB5515 SERVICE MANUAL
11-26
brake port and adapting a torque wrench to input shaft.
The torque here in the payout direction should be 95 to
115 lb. (10.6 to 12.9 Nm).
Planet Sets
1. Remove the spiral ring from the planet pins
(Figure 11-50).
2. Remove the pins from the carrier by carefully tapping
them out (Figure 11-51).

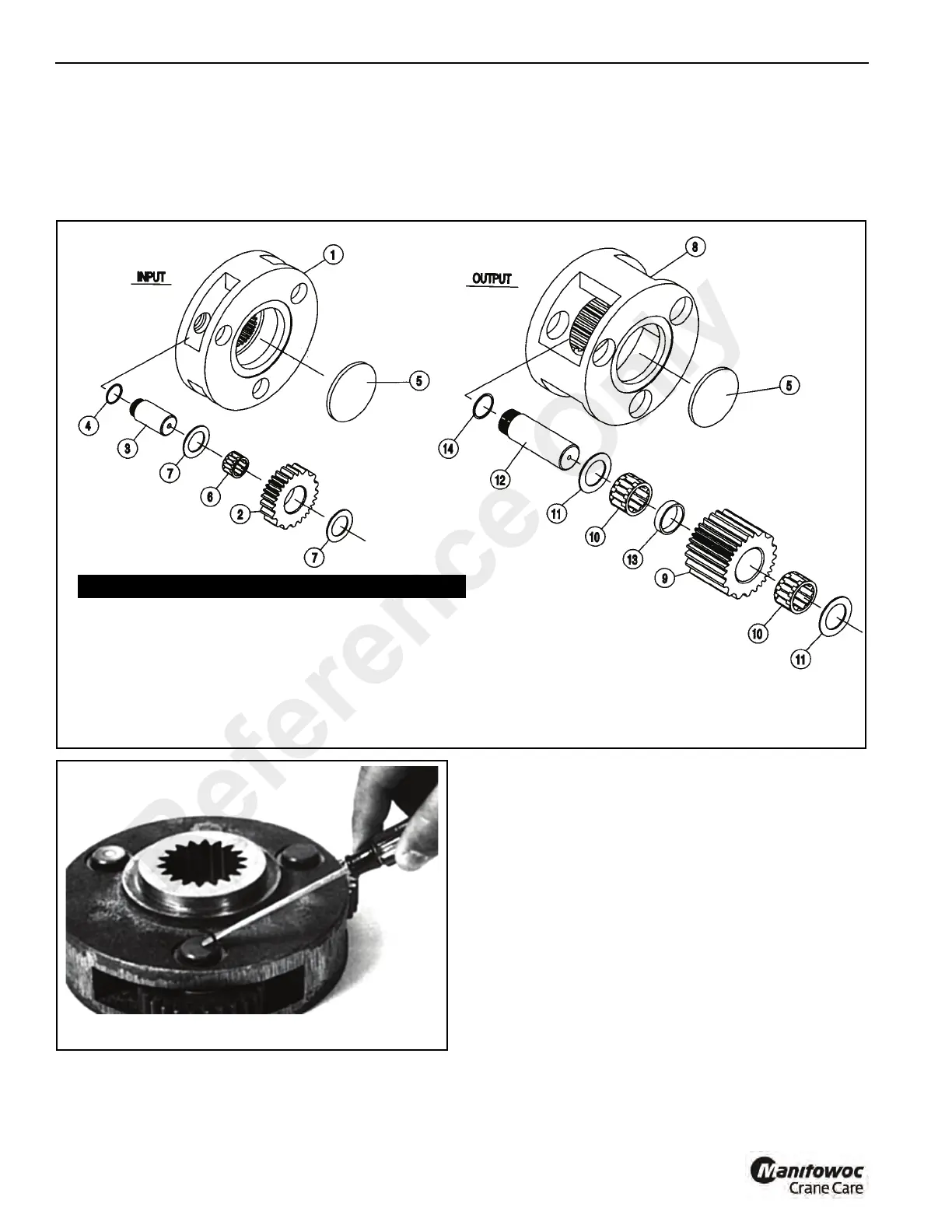

FIGURE 11-49
p0480
Planet Sets - Exploded View
Item Description
1. Input Carrier
2. Planet Gear (3)
3. Planet Pin (3)
4. Retaining Ring (3)
5. Plug (2)
6. Bearing (3)
7. Thrust Washing (6)
Item Description
8. Output Carrier
9. Planet Gear (3)
10. Bearing (6)
11. Thrust Washing (6)
12. Planet Pin (3)
13. Spacer (3)
14. Retaining Ring (3)
Reference Only
