STRUCTURALS 5540F/YB5515 SERVICE MANUAL
11-36
Remove and discard the O-ring from the outside of the
drum closure.
10. Remove the seal and bearing from inside of closure.

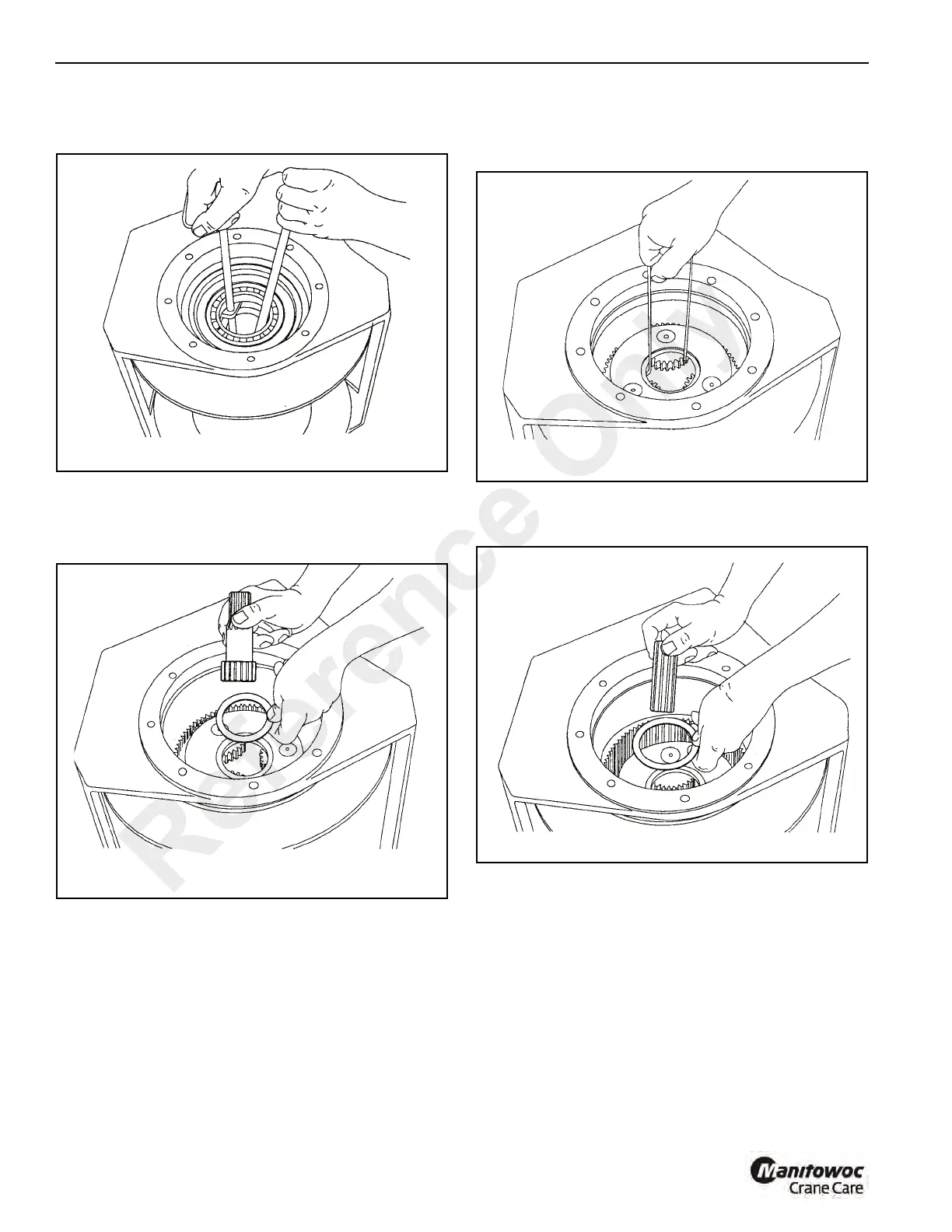

11. Remove the primary sun gear and thrust washer
(Figure 11-68) from the primary planet carrier.
12. Remove the primary planet carrier from the drum
(Figure 11-69). Refer to “Planet Carrier Service,” for
additional information.
13. Remove the output sun gear and thrust washer
(Figure 11-70) from the output planet carrier.
14. Remove the output planet carrier (Figure 11-71) from
the drum. Refer to “Planet Carrier Service”, for additional
information.
