2.1. Components of the
digital AC servo drive
2. The digital intelligent AC servo drive with ANALOG interface

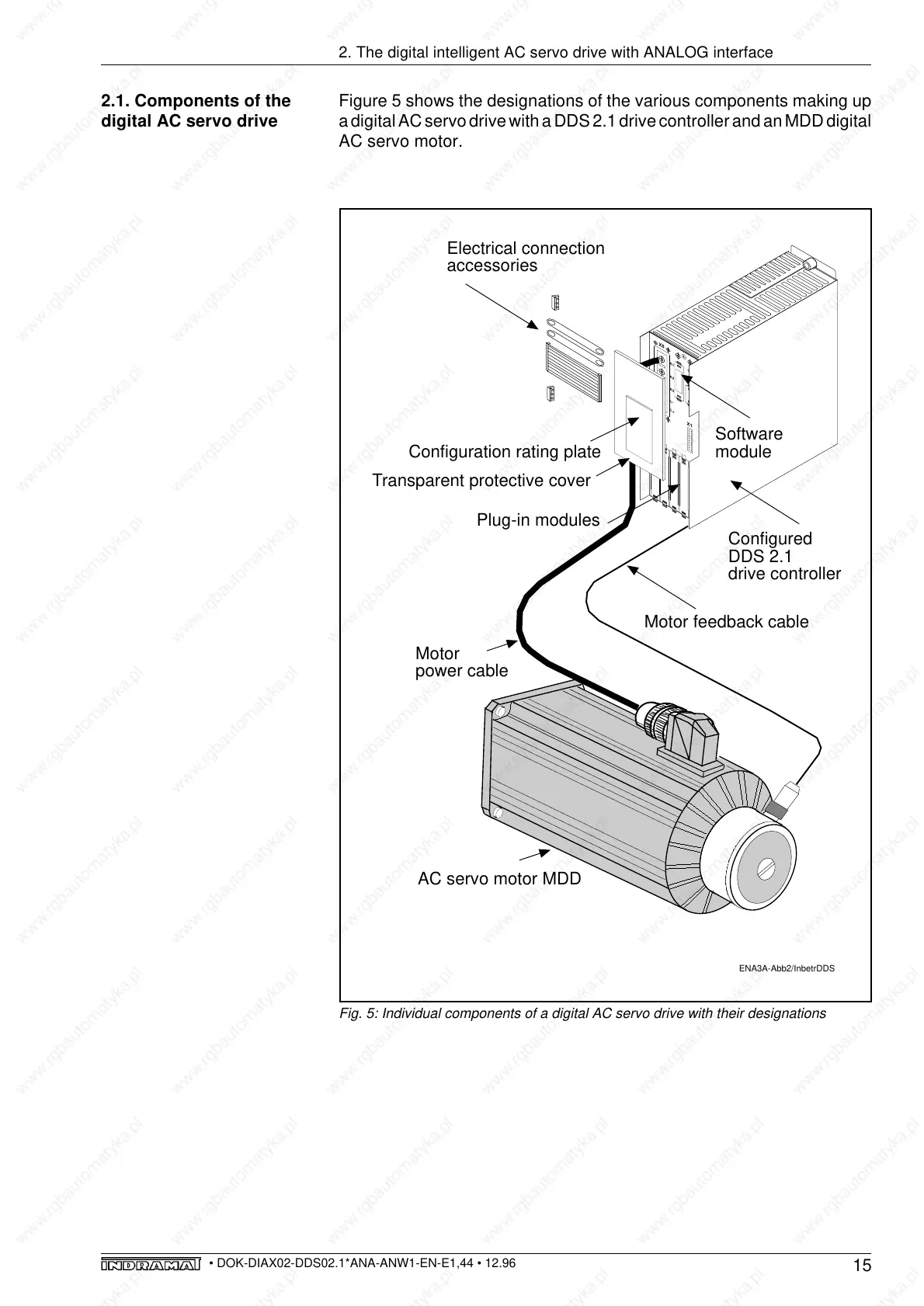

Figure 5 shows the designations of the various components making up
a digital AC servo drive with a DDS 2.1 drive controller and an MDD digital
AC servo motor.
ENA3A-Abb2/InbetrDDS
L-
L+
X8
S1
1
11
A3
A1
A2
X1
Configured
DDS 2.1
drive controller
Electrical connection
accessories
Motor feedback cable
Motor
power cable
AC servo motor MDD
Transparent protective cover
Plug-in modules
Configuration rating plate
Software
module
Fig. 5: Individual components of a digital AC servo drive with their designations
