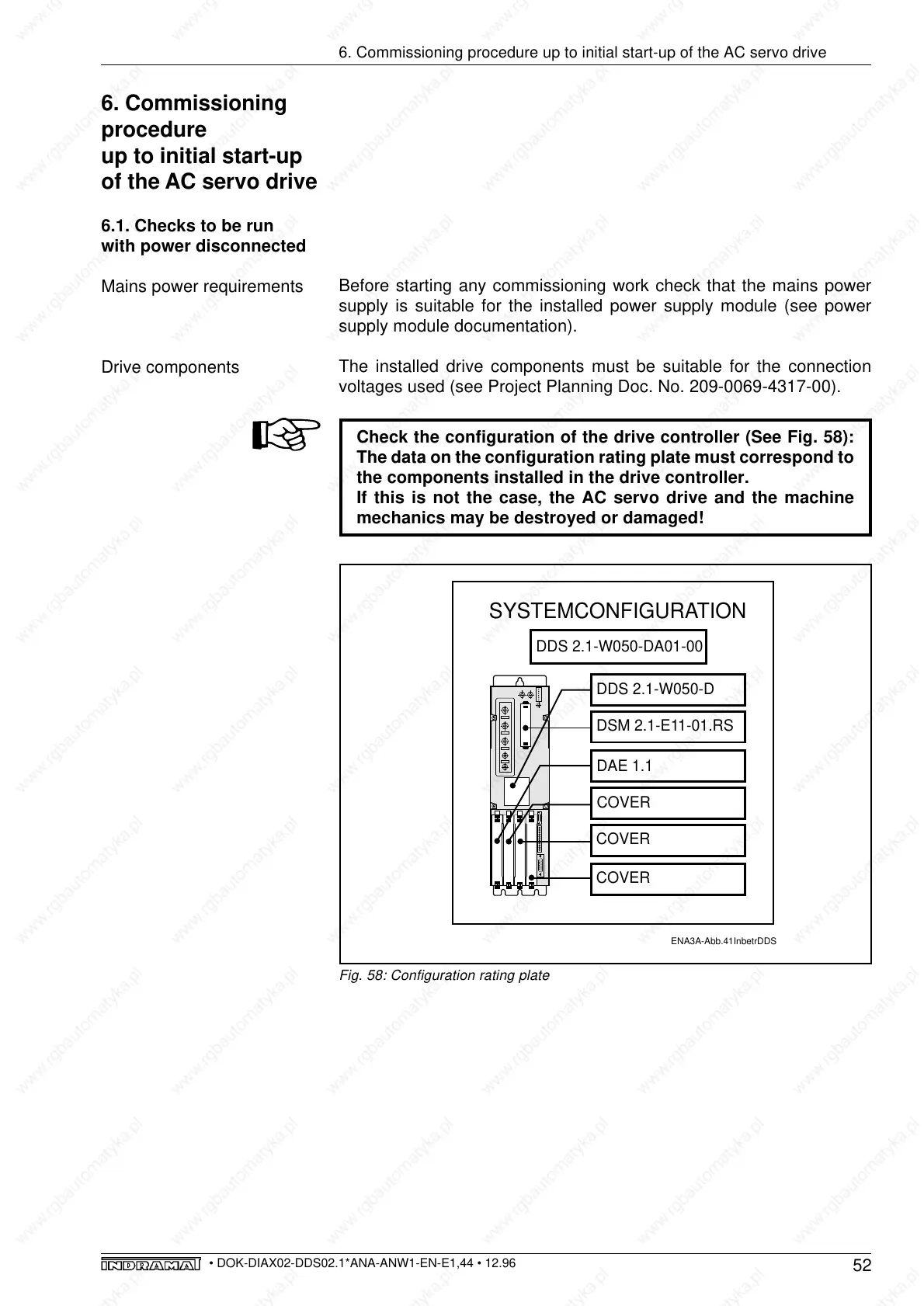

6. Commissioning procedure up to initial start-up of the AC servo drive
6. Commissioning
procedure
up to initial start-up
of the AC servo drive
6.1. Checks to be run
with power disconnected
Mains power requirements
Drive components
Before starting any commissioning work check that the mains power
supply is suitable for the installed power supply module (see power
supply module documentation).
The installed drive components must be suitable for the connection
voltages used (see Project Planning Doc. No. 209-0069-4317-00).
Check the configuration of the drive controller (See Fig. 58):
The data on the configuration rating plate must correspond to
the components installed in the drive controller.
If this is not the case, the AC servo drive and the machine
mechanics may be destroyed or damaged!
SYSTEMCONFIGURATION
DDS 2.1-W050-DA01-00
DDS 2.1-W050-D
DSM 2.1-E11-01.RS
DAE 1.1
COVER
COVER
COVER
ENA3A-Abb.41InbetrDDS
Fig. 58: Configuration rating plate
